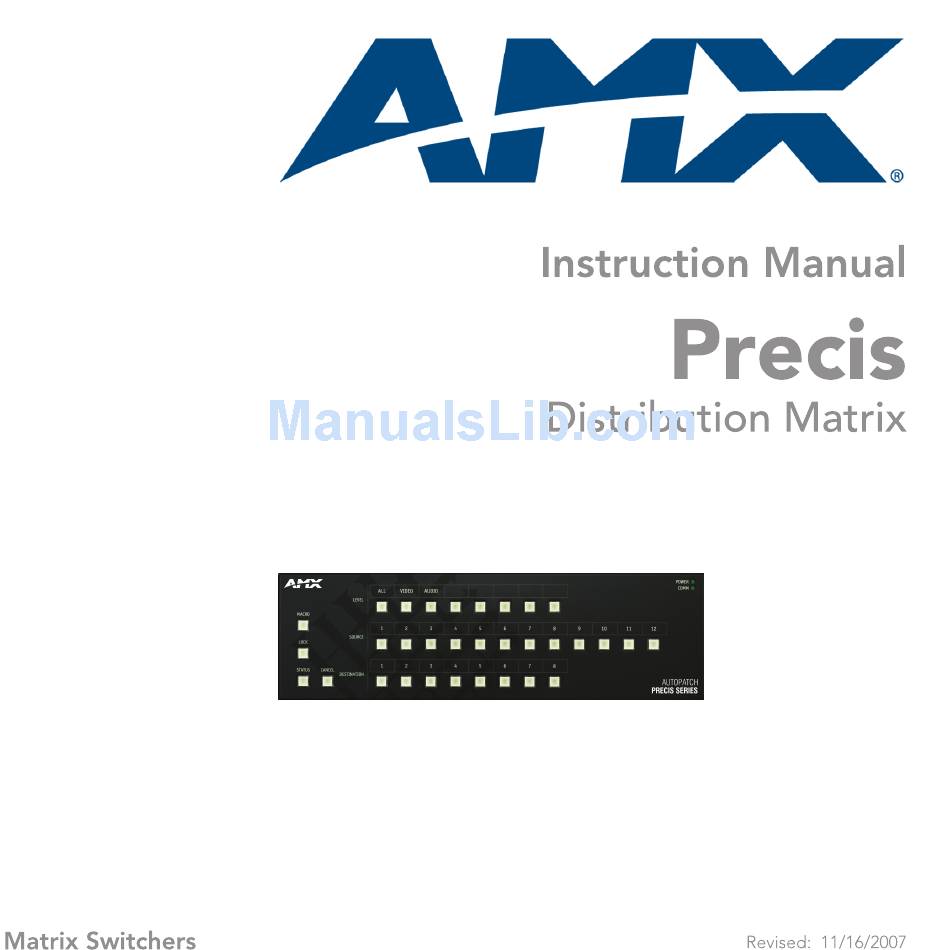

AMX Precis Instruction Manual

Amx precis distribution matrix
Hide thumbs Also See for Precis:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Precis and is the answer not in the manual?

Questions and answers

Related Manuals for AMX Precis

Summary of Contents for AMX Precis

  • Page 2 AMX. Copyright protection claimed extends to the AMX AutoPatch Precis hardware and software and includes all forms and matters copyrightable...

  • Page 3: Important Safety Information And Instructions

    ä Read and understand all instructions before using and installing AMX AutoPatch products. ä Use the correct voltage range for your AMX AutoPatch product. ä There are no user serviceable parts inside an AMX AutoPatch product; service should be done only by qualified personnel.
  • Page 4 AMX AutoPatch. Veuillez consulter la documentation accompagnant l’appareil pour de plus amples informations à propos de l’installation, du fonctionnement ou de la réparation de votre appareil AMX AutoPatch. ä Lisez attentivement toutes les directives avant d’installer et d’utiliser les appareils AMX AutoPatch.

  • Page 5: Table Of Contents

    AMX Limited Warranty and Disclaimer ........

  • Page 6: Welcome

    BCS (Basic Control Structure) commands. This document does not include any detailed information about SBCs (Single Bus Controllers) or remote control panels for the Precis. Call technical support for more information about these controller types (see “Technical Support” on this page).

  • Page 7: Installing A Precis Enclosure

    INSTALLING A PRECIS ENCLOSURE INSTALLING A PRECIS ENCLOSURE Precis enclosures are designed to fit in a standard EIA 19 in (48.26 cm) rack. Each enclosure comes with the following items in the box: Enclosure Precis User’s Operation Manual Power Cord Ê...
  • Page 8 PC: DB-9 AMX AutoPatch: DB-9 No hardware flow control Optional RS-232 Pinout with Hardware Flow Control – Precis 500 MHz Only Use a null modem cable that matches the pinout diagram below for RS-232 with hardware flow control on the Precis 500 MHz.

  • Page 9: Linking Precis Enclosures

    A Precis with an Ethernet connector can have a virtually unlimited number of linked enclosures. Note: If any linked enclosures were not in the original system, a new configuration file is needed (call technical support;...

  • Page 10: Introduction To The Precis

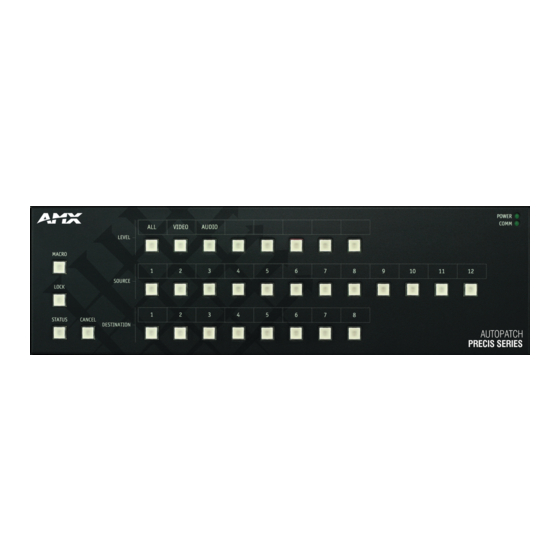

    INTRODUCTION TO THE PRECIS The Precis is available in an 8x4 or 12x8 (some models also come in 8x8) configuration with a variety of control and connector options. A Precis Control Panel works in three standard modes: Switch (default), Status, and Macro.
  • Page 11 5 mm x 20 mm 250 V 1 amp *The X Net Link connector will be single or double depending on the Precis model. **This feature is not available on all Precis models. Source connectors Connection point for source signal cables FG1037-60...

  • Page 12: Executing And Disconnecting Switches

    You can execute and disconnect switches from the following: ä The Control Panel ä An external serial controller (computer, AMX, Crestron, etc.) via BCS (Basic Control Structure) commands ä A Single Bus Controller (only executes switches) Single Bus Controllers are not covered in this document.

  • Page 13: Executing And Disconnecting Switches Using Bcs Commands

    EXECUTING AND DISCONNECTING SWITCHES EXECUTING AND DISCONNECTING SWITCHES USING BCS COMMANDS You can use BCS with a device that connects to the serial connector on the Precis CPU. BCS commands are a subset of the X communications protocol. EXECUTING SWITCHES To execute a switch, enter the command using the following command line format (where “#”...

  • Page 14: Verifying Signal Routing Status (Switches)

    Switch mode. VERIFYING SIGNAL STATUS USING BCS COMMANDS You can use BCS commands with a device that connects to the serial connector on the Precis CPU. To verify signal routing status, enter the command using the following command line format (where “#” represents any valid level, source, or destination number).

  • Page 15: Executing Macros

    Executing a macro is a shortcut for executing that set of switches. A 12x8 Precis enclosure can store up to 160 macros, and an 8x4 enclosure can store up to 96 macros. To program new macros, see page 16.

  • Page 16: Executing Macros Using Bcs Commands

    EXECUTING MACROS USING BCS COMMANDS You can use BCS commands with a device that connects to the serial connector on the Precis CPU. BCS commands are a subset of the X communications protocol. To execute a macro, enter the command using the following command line format (where “#”...

  • Page 17: Setting The Password

    1. Follow the steps for launching X Connect. 2. In the Hardware View, right click the appropriate front panel icon. (Double-click the Precis first if the front panel icon is not displayed.) 3. Select Set Password. Enter a single digit between zero and seven in each field.

  • Page 18: Redefining Levels

    Connect can be used to redefine levels (virtual matrices). The following steps provide the example of configuring the RGB connectors on a 12x8 Precis to switch Y/c and composite signals by modifying existing (default) virtual matrices (levels). To reconfigure RGB connectors to switch Y/c...
  • Page 19 11. Repeat steps 8 through 10, clicking Accept Destinations Only instead of Sources Only Assignments and selecting 4 channels instead of 6. Click OK. 12. Click the Accept Assignments button. Precis Instruction Manual Destinations Only Number of Channels to Create...

  • Page 20: Adjusting And Checking Volume (Optional Feature)

    If your system has the Volume Control option, you can adjust volume from the following: ä Control Panel ä An external controller (computer, AMX, Crestron, etc.) via BCS (Basic Control Structure) commands You can check volume status only from an external controller via BCS commands.

  • Page 21: Adjusting Volume Using Bcs Commands

    ADJUSTING VOLUME USING BCS COMMANDS You can use BCS with an external controller that connects to the serial connector on the Precis CPU. BCS commands are a subset of the X communications protocol. Adjusting volume can be done using any of the following four methods.
  • Page 22 To mute the volume, enter the command using the following command line format (where “#” represents any valid audio level or destination number). CL#O#VMT Precis Instruction Manual Action Increases volume a step for Level 0, destination 3 Increases volume a step for...

  • Page 23: Checking Volume Status

    Level 0, destination 8 Checks volume status SL0O2VAT for Level 0, destination 2 Note: You cannot enter multiple levels or destinations in Volume Status commands. Precis Instruction Manual Action Result SL0O3VAT( 35 ) [+3.5 dB] SL0O8VAT( 5 ) [+0.5 dB] SL0O2VAT( –125 )

  • Page 24: Adjusting And Checking Input Gain (Optional Feature)

    Input Gain Control option. Caution: We recommend that input gain adjustments be made only by a qualified dealer. The purpose of Precis “Input Gain Control” is to allow source (input) signals of various amplitudes to be equalized before they are routed and the volume is adjusted.

  • Page 25: Bcs (Basic Control Structure) Commands

    Precis through the serial connector (on the CPU). To establish communication between your PC (personal computer) and your Precis, attach the PC to the serial connector and use terminal emulation software (such as Windows95 HyperTerminal). BCS commands are a subset of the X communications protocol.
  • Page 26 Flags the next 1 - 3 digit number as the volume adjustment to a specific decibel level Flags the next 1 - 3 digit number as the volume adjustment of a specific decibel amount Adjusts volume of a specified output up or down a step Applies or removes mute to the volume Precis Instruction Manual...

  • Page 27: Amx Limited Warranty And Disclaimer

    30-day period. After the 30-day period the RMA will be cancelled. Any shipments received not consistent with the RMA, or after the RMA is cancelled, will be refused. AMX is not responsible for products returned without a valid RMA number.

  • Page 28: Software License And Warranty Agreement

    Software in the manner described in this License. The AMX Software is licensed, not sold. This license does not grant Licensee the right to create derivative works of the AMX Software. The AMX Software consists of generally available programming and...
  • Page 29 ä LICENSEE REMEDIES. AMX's entire liability and Licensee's exclusive remedy shall be repair or replacement of the AMX Software that does not meet AMX's Limited Warranty and which is returned to AMX in accordance with AMX's current return policy. This...

  • Page 30: Precis Specifications

    Power Consumption (typical) Operational Temperature Humidity Dimensions Weight Precis Wideband (300 MHz) Specifications Applies to Precis Series pre-configured systems tuned for wideband signals. Precis Wideband (300 MHz) Specifications Parameter Frequency Response Crosstalk (adjacent channel) Signal to Noise Ratio (SNR) Return Loss Input Level (max.)
  • Page 31 Input Level (max.) Input Impedance Output Level (max.) Output Impedance Connector Type Precis Sync Specifications Applies to Precis pre-configured systems that switch sync signals with either ultra-wideband or wideband signals. Precis Sync Specifications Parameter Input Level (max.) Input Impedance (Hi-Z) Output Level (max.)
  • Page 32 Precis HT S/PDIF Specifications Applies to Precis HT systems: FGP37-0804-A4B, FGP37-0804-34B, FGP37-1208-A4B, and FGP37-1208-34B. Precis S/PDIF Specifications Parameter Standard Resolution Sample Rate Input Signal Amplitude Output Signal Amplitude Rise & Fall Time Jitter Connector Type Precis HT TosLink Specifications Applies to Precis HT systems: FGP37-0804-A4B, FGP37-0804-34B, FGP37-1208-A4B, and FGP37-1208-34B.
  • Page 33 Precis Specifications Precis Audio Specifications Applies to all Precis pre-configured systems. Standard Audio Specifications Parameter Frequency Response THD + Noise Crosstalk Signal to Noise Ratio (SNR) Input Level (max.) Input Impedance Input Gain Adjustment Range Output Level (max.) Output Impedance...

  • Page 34: Ethernet Connector Leds

    ETHERNET CONNECTOR LEDS This section applies specifically to Precis models with 32-bit processors and Ethernet link connectors. The Ethernet 10/100 Base-T connector has two LEDs, one green and one amber. The LEDs indicate the following: Green LED on – speed status is 100 MBPS ä...
