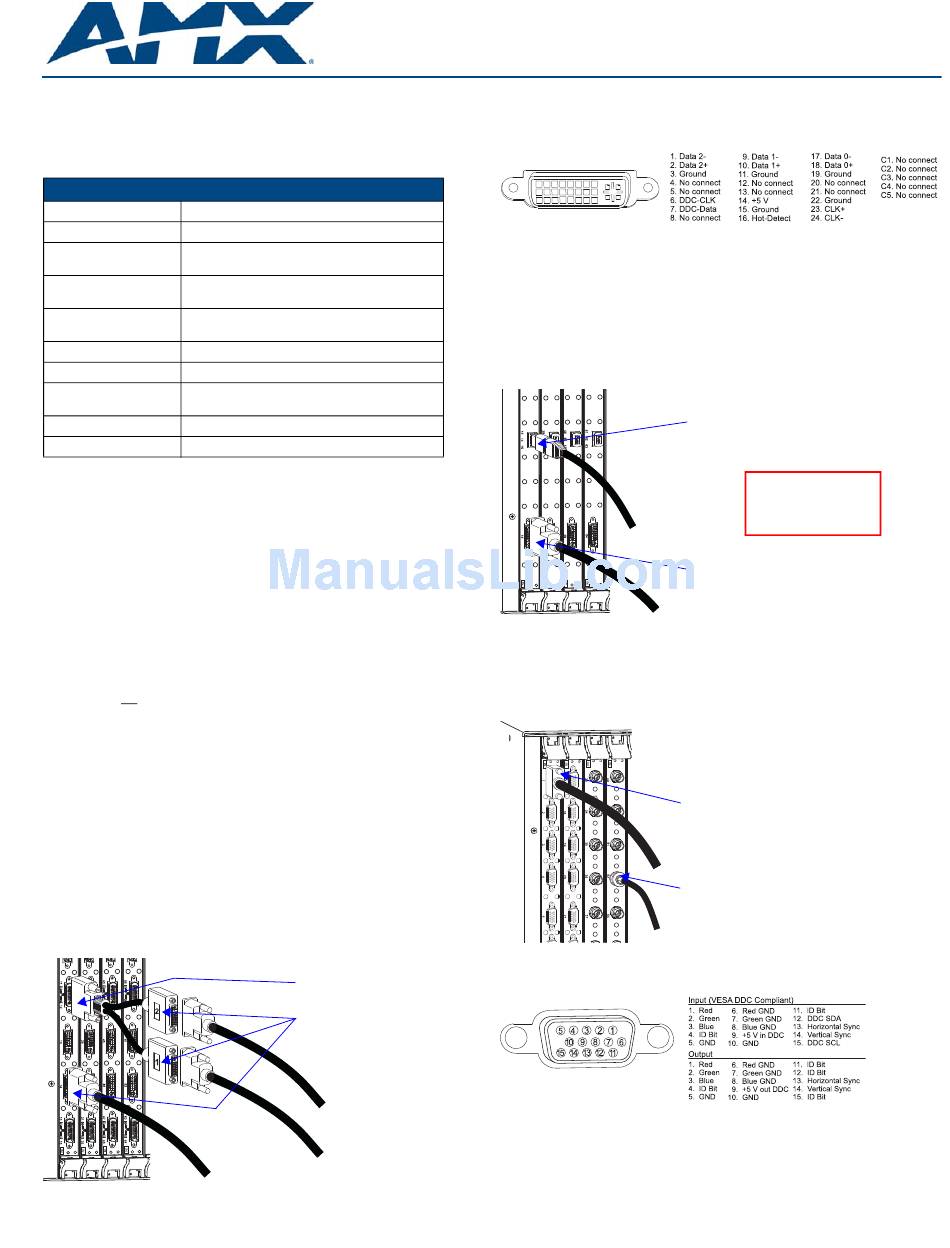

AMX Epica DG Quick Start Manual

Overview

The Epica DG Distribution Matrix is available in various configurations; therefore, the
illustrations in this guide may differ from the model(s) purchased. The Epica DG
Instruction Manual contains complete documentation (including board specifications
and supported resolutions); see the AMX AutoPatch CD or visit www.amx.com.

General Specifications

Specifications
Approvals Pending
AC Power 100 to 240 VAC single phase, 50 to 60 Hz
Power Consumption Max: 2000 Watts
Typical: 850 Watts, fully loaded enclosure
Thermal Dissipation Max: 6824 BTU/hr.
Typical: 2900 BTU/hr., fully loaded enclosure
Operational Temperature 32° to 95° F (0° to 35° C), continuous
32° to 110° F (0° to 43° C), peak (up to 48 hours)
Humidity 0 to 90% non-condensing
Depth 21.1 in. (53.6 cm)
Width 19.0 in. (48.26 cm) with mounting ears
17.6 in. (44.70 cm) without mounting ears
Height 28.0 in. (71.1 cm) 16 RU
Weight Approx. 160 lbs. (72.6 kg) per loaded enclosure

Installation

ESD Warning: Avoid ESD (Electrostatic Discharge) damage to sensitive
components; be sure you and the enclosure are properly grounded before
touching any internal materials.

Rack Mounting

Caution: To prevent overheating, avoid placing high heat-producing equipment directly
above or below the enclosure. The system requires a minimum of one empty rack unit
above and below (three empty rack units are recommended). Verify that the openings on
the sides of the enclosure are not blocked and do not have restricted airflow.
To rack mount an Epica DG enclosure (requires a minimum of 3 people):
1. While the enclosure is still on the pallet, cut loose and remove the outer straps.
2. Remove the tray (contains cables, etc.) from the top of the cardboard sleeve.
3. Remove the cardboard sleeve.
4. Cut loose & remove inner straps. Carefully remove shrink-wrap & corner cushions.
5. Use a pallet jack to move the enclosure into position.
Important: Do not use board extractor handles to lift enclosure; use inset hand-holds.
6. Lift and push the enclosure into rack. Screw in top 3 rack ear screws on each side.
7. Move jack out of way. Support enclosure; screw in remaining rack ear screws.
Attaching Input & Output Cables
Generally, any Epica DG input board can route signals to any type of Epica DG output
board; the signal format is automatically converted to match the output board.
For testing purposes, attach just the first two sources and destinations according to the
AutoPatch Connector Guide that shipped with your order. Follow the guide exactly;
each system is custom-built and programmed to operate based on the guide.
Some of the Epica DG boards can be used in conjunction with converter modules; see
the specific module's Quick Start Guide for details.
Caution: To avoid damage (and for service) to connectors and boards from cable weight,
we recommend using lacer bars or some other type of cable management system.
Epica DG DVI Boards – DVI-I & DMS-59 Connectors
DG DVI boards have 8 DVI-I and 4 DMS-59 connectors each. DMS-59 connectors
break out to allow 2 DVI connections each for a total of 16 inputs or outputs per board.
FIG. 1 Fasten cables onto input & output receptacles
AutoPatch Epica DG Distribution Matrix
DMS-59 connector
DVI-I connector
(see "Important" note
at top of next column)
Important: DVI connectors on DMS-59 cable are labeled 1 (bottom) and 2 (top).
Connect 1 to the DMS-59 receptacle numbered with a lower numerical value; connect 2
to receptacle with the higher value (e.g., connect DVI connector 1 to 11 and 2 to 12).

DVI (Board) Connector Pinout

C1 C2
1 2 3 4 5 6 7 8
9 10 1 1 12 13 14 15 16 C5
17 18 19 20 21 22 23 24
C3 C4
FIG. 2 DVI (board) connector pinout
Note: On the input connector, pin 14 is a +5 V sink. On the output connector, pin 14 is
a +5 V source with a maximum current limitation of 55 mA.
®
Epica DG MTP Fiber Boards – MTP
Warning: Laser Radiation. Do not view directly with optical instruments. Class 1M
laser product.
Each board has 5 MTP/MPO fiber connectors and 1 DVI-I connector (DVI-D format);
see FIG. 3. The fiber connectors each support three I/O channels.
Caution: Do not severely bend or kink the fiber cable. Irreversible damage can occur.
Refer to the physical limitations specified for the cable.
FIG. 3 Fasten cables onto input & output receptacles (see above for DVI-I pinout)
Epica DG RGBHV/HD-15 Boards – HD-15 Connectors
Each board has 16 HD-15 connectors (FIG. 4). EDID Programmer software is provided
to assist with in-field programming. For information, see the instruction manual. Board
configuration software, the "DG-HD15 Wizard," is also provided and is used to adjust
the source signal. For directions and tips, see the Wizard and its Help file.
FIG. 4 Fasten cables onto input & output receptacles

HD-15 (Board) Connector Pinout

FIG. 5 HD-15 (board) connector pinout
Note: 55 mA supplied on output pin 9; power draw not to exceed 50 mA per port.
Epica DG SDI Boards – BNC Connectors
Each board has 16 BNC connectors (FIG. 4). EDID Programmer software is provided
to assist with in-field programming (see the Epica DG Instruction Manual).
Quick Start Guide
®
/MPO Fiber (& 1 DVI-I) Connectors
MTP/MPO fiber connector
(ensure it seats firmly;
normally a click is heard)
LASER RADIATION
Do not view directly
with optical instruments
Class 1M laser product
DVI-I connector
HD-15 connector
BNC (SDI) connector
