5 SMD test points

5 SMD test points
The TLE92108 APPKIT provides 9 SMD test points for evaluation and testing.

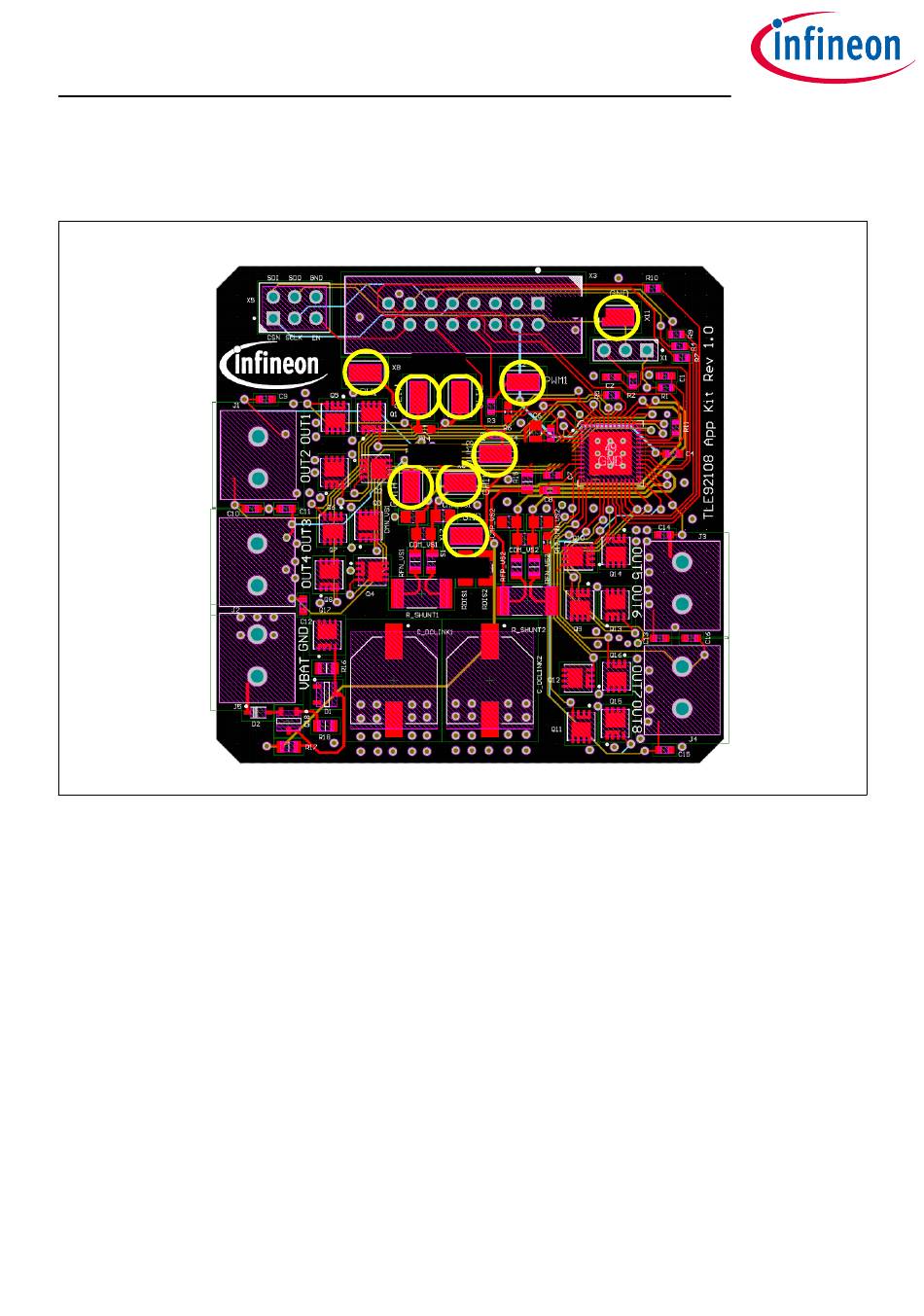

Figure 10 SMD test points
It includes test points for:
• 2× GND
• 1× VDH
• 2× GL1
• 2× GH1
• 1× PWM1
• 1× PWM3
User Manual
GL1
DH
GH1
GND
9
GND
PWM 1
PWM 3
