TLE92108 APPKIT
3 Connections

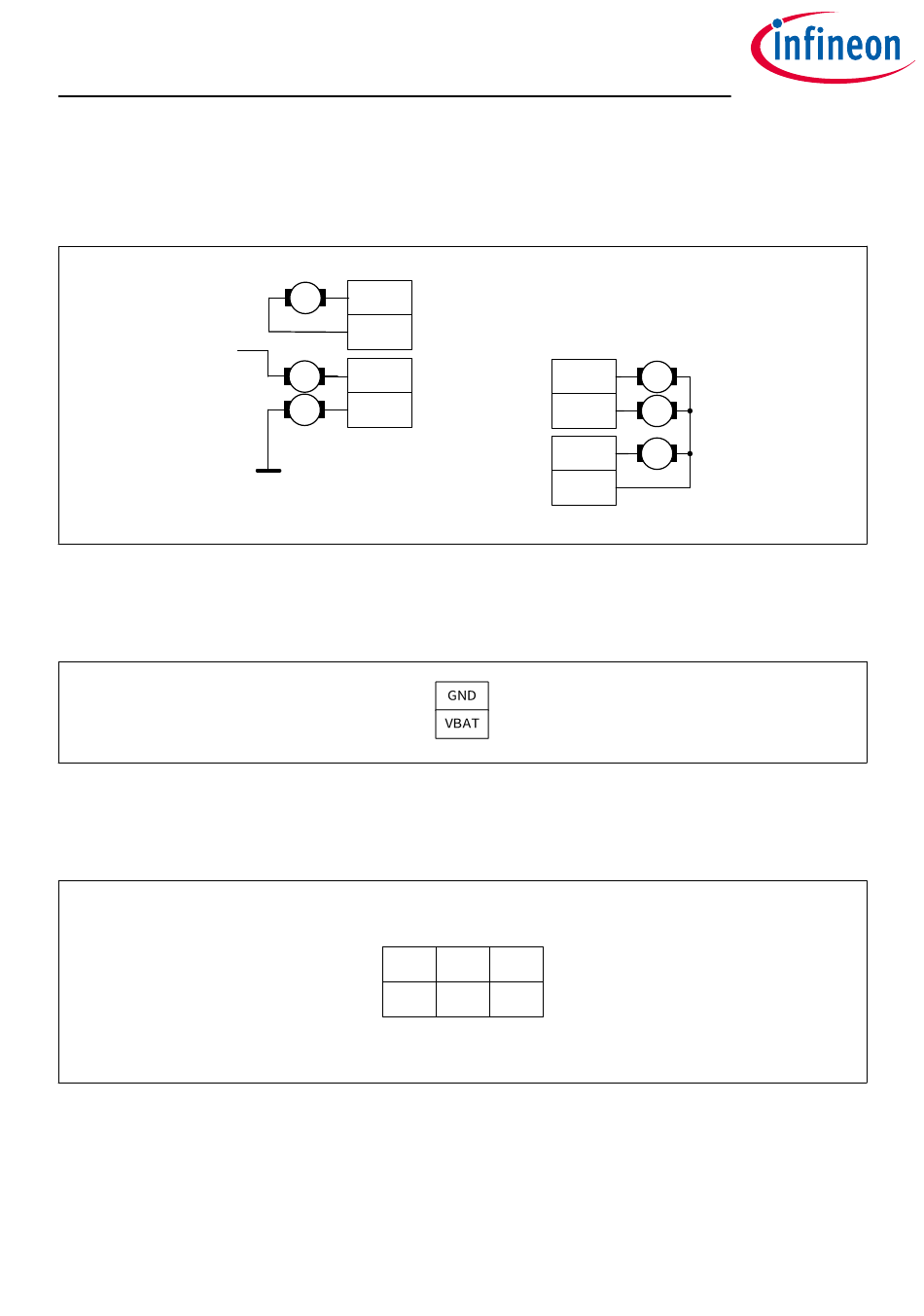

Motor connectors
The screw terminal blocks can be used to connect DC motors in multiple topologies, some examples are shown
in
Figure
5.
Figure 5
Motor connectors and topologies
Power connector
The screw terminal blocks are used to connect the supply voltage to VBAT and ground to GND.
Figure 6
Power connector
SPI header
The 3 × 2 header can be used for SPI debugging. The pinout is shown in
Figure 7
SPI header pinout
User Manual
M
Out 1
Out 2
V
S
Out 3
M
M
Out 4
SDI
2
1
CSN
Out 5
Out 6
Out 7
Out 8
Figure
SDO
GND
4
6
3
5
SCLK
EN
7
M
M
M
7.
v1.0
2020-06-30
