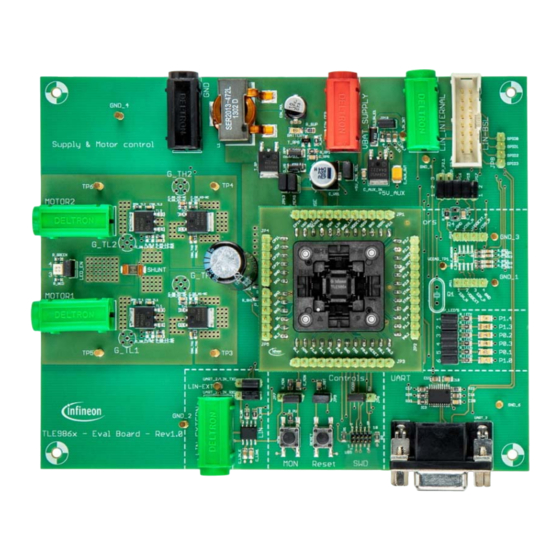

TLE986x EvalBoard User Manual
About this document
Scope and purpose
This user manual is intented to help users use the TLE986x Evalboard. This Evalboard is designed to evaluate
hardware and software functionalities of the TLE986x device family.
This manual provides additional information about the board's layout, jumper settings, interface and debug
options. It introduces the evaluation platform as well as how to write software and download it to the TLE986x.
Intended audience
This document is for everyone who works with the TLE986x Evalboard.
User Manual
Please read the Important Notice and Warnings at the end of this document
Rev. 1.0
www.infineon.com
page 1 of 21
2019-01-30
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Infineon TLE986x
Summary of Contents for Infineon TLE986x
-
Page 1: About This Document
TLE986x device family. This manual provides additional information about the board’s layout, jumper settings, interface and debug options. It introduces the evaluation platform as well as how to write software and download it to the TLE986x. Intended audience This document is for everyone who works with the TLE986x Evalboard. - Page 2 TLE986x EvalBoard User Manual About this document Abbreviations and definitions Table 1 Abbreviations Abbreviation Definition BLDC Brushless direct current Bootstrap loader GH 1, 2 Gate high-side MOSFET for phases 1, 2 GL 1, 2 Gate low-side MOSFET for phase 1, 2...
-
Page 3: Table Of Contents
TLE986x EvalBoard User Manual Table of contents Table of contents About this document ......................... 1 Table of contents ..........................3 1 Concept ........................... 4 2 Interconnects ........................... 5 3 Test points and LEDs ......................... 7 4 Jumper settings ........................8 ... -
Page 4: Concept

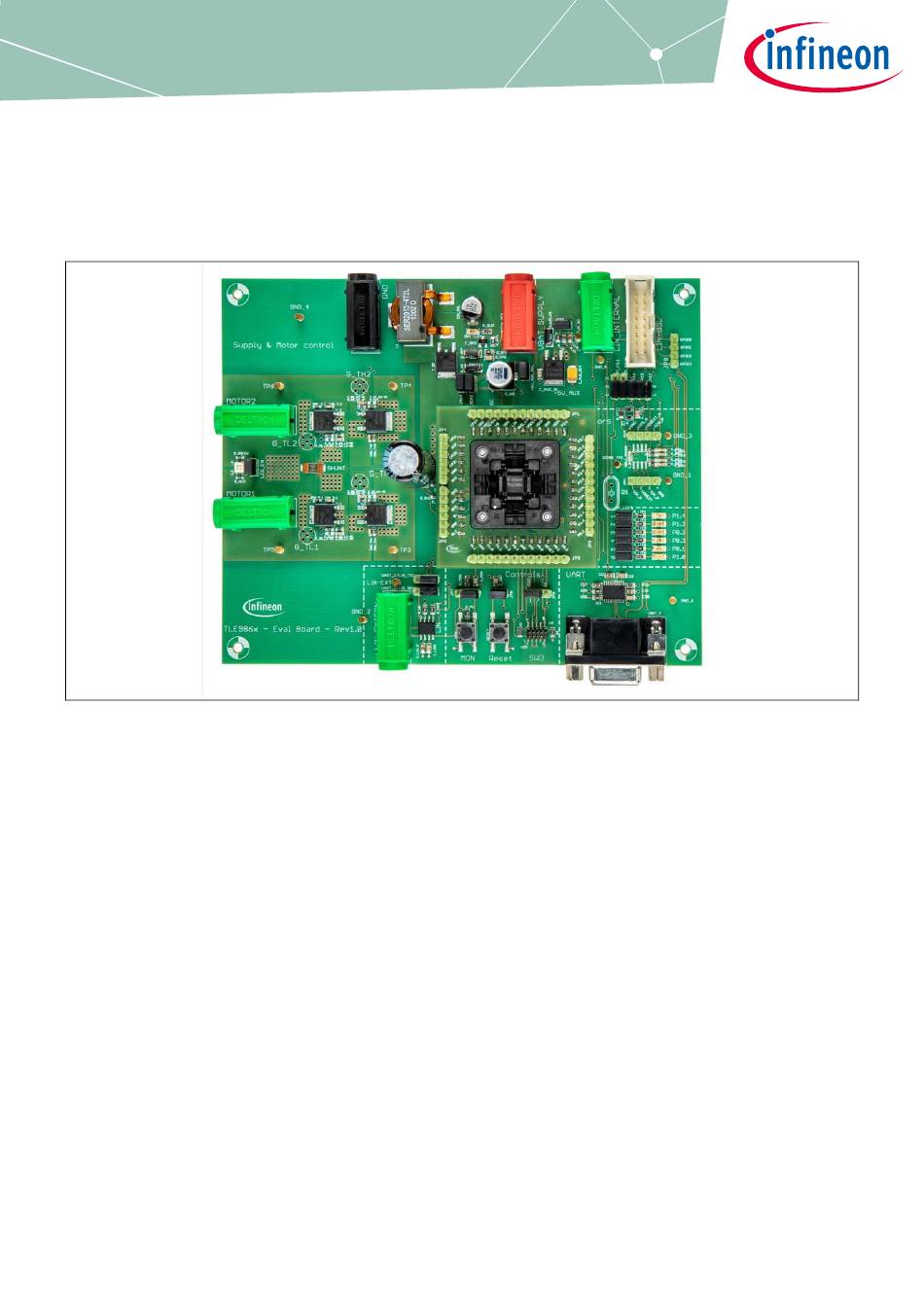

LE986x Ev valBoard User Man nual oncept Concep gure 1 Board con ncept is board is d designed to p provide a sim mple, easy-to o-use tool fo or getting fam miliar with In nfineon’s em mbedded ower IC TLE9 86x devices. -
Page 5: Interconnects
LE986x Ev valBoard User Man nual terconnects Interco onnects gure 2 Interconn ects anana jacks for ground, , supply and d LIN ere are jacks s in different t colors for g ground, supp ply (max. 28 V) and LIN c communicat tion via bana ana jack. - Page 6 TLE986x EvalBoard User Manual Interconnects TXD1 RXD1 VDD5 RESET GPIO3 GPIO2 SCLK GPIO1 MISO GPIO0 MOSI Figure 3 Pin configuration uIO BSL Pin header for SWD (marked blue) There is a 10 pin header (2 x 5) with 1.27 mm pitch on the evaluation board. This interface is meant to be used for debugging.
-
Page 7: Test Points And Leds
LE986x Ev valBoard User Man nual est points an nd LEDs Test po oints and d LEDs gure 5 Test point veral ground d test points s are provide st point LIN_ _INT is used to measure e the LIN volt tage. - Page 8 This is intend ded for LIN master r communic ation. Open the jumper to use the T TLE986x as sl lave in a LIN network. Softwa are for LIN lo ow level driv ver can be fo und at the h...
-
Page 9: Jumper Settings
Jumper settings JP16 This jumper is closed by default. If this jumper is left open the device is not supplied. It is intended to open the VS line in order to measure the current flowing into the TLE986x device. JP17 Close this jumper to connect the motor status LEDs. -
Page 10: Communication Interfaces
TLE986x EvalBoard User Manual Communication interfaces Communication interfaces LIN (via banana jack and uIO BSL) The device integrated LIN transceiver is connected to a banana jack and additionally to the uIO BSL interface. To integrate the device in a LIN network it is sufficient to use the single wire banana interface. The BSL interface is intended to program the device via LIN. -
Page 11: Software Toolchain
In addition to the IDE, Infineon provides ConfigWizard. The tool is designed for code configuration, in combination with the IDE. Infineon ConfigWizard can be downloaded via the Infineon Toolbox. The Infineon Toolbox is a central place to download and update all your Infineon tools. It can be downloaded from www.infineon.com/toolbox. - Page 12 LE986x Ev valBoard User Man nual oftware tool lchain gure 7 Debug and d flash conf iguration If t the board is connected s successfully, , the Arm® ID DCODE will b be visible in t the SW Devic c e Window. If connectio ls, “Connect t &...
-
Page 13: Technical Data
TLE986x EvalBoard User Manual Technical data Technical data Table 4 Technical data Voltage supply: max. 28 V Motor current: max. 20 A Pin ports: User Manual 13 of 21 Rev. 1.0 2019-01-30... -
Page 14: Optional Additional Placements
LE986x Ev valBoard User Man nual ptional addi itional place ements Option al addit ional pla acemen gure 8 Additiona l placement ts’ positions lues for thes se optional a additional pl lacements h have to be de etermined d epending on n application ble 5... -
Page 15: Schematics And Layout
TLE986x EvalBoard User Manual Schematics and layout Schematics and layout Schematic Figure 9 Schematics: Sheet 1 User Manual 15 of 21 Rev. 1.0 2019-01-30... - Page 16 TLE986x EvalBoard User Manual Schematics and layout Figure 10 Schematics: Sheet 2 User Manual 16 of 21 Rev. 1.0 2019-01-30...
- Page 17 TLE986x EvalBoard User Manual Schematics and layout Figure 11 Schematics: Sheet 3 User Manual 17 of 21 Rev. 1.0 2019-01-30...
-
Page 18: Layout
TLE986x EvalBoard User Manual Schematics and layout Layout Figure 12 Top layer User Manual 18 of 21 Rev. 1.0 2019-01-30... - Page 19 TLE986x EvalBoard User Manual Schematics and layout Figure 13 Bottom layer User Manual 19 of 21 Rev. 1.0 2019-01-30...
-
Page 20: Revision History
TLE986x EvalBoard User Manual Revision history Revision history Major changes since the last revision Date Version Description 2019-01-30 Initial release. User Manual 20 of 21 Rev. 1.0 2019-01-30... - Page 21 Email: erratum@infineon.com standards concerning customer’s products and any the product or any consequences of the use thereof use of the product of Infineon Technologies in can reasonably be expected to result in personal customer’s applications. injury. Document reference...
