2 PCB layout

2 PCB layout
Infineon's TLE92108 is a Multi-MOSFET driver IC providing control of up to 16 n-channel MOSFETs. It supports
up to 8 half-bridges for DC motor control applications such as automotive power seat control or other multi-
motor applications (Datasheet of

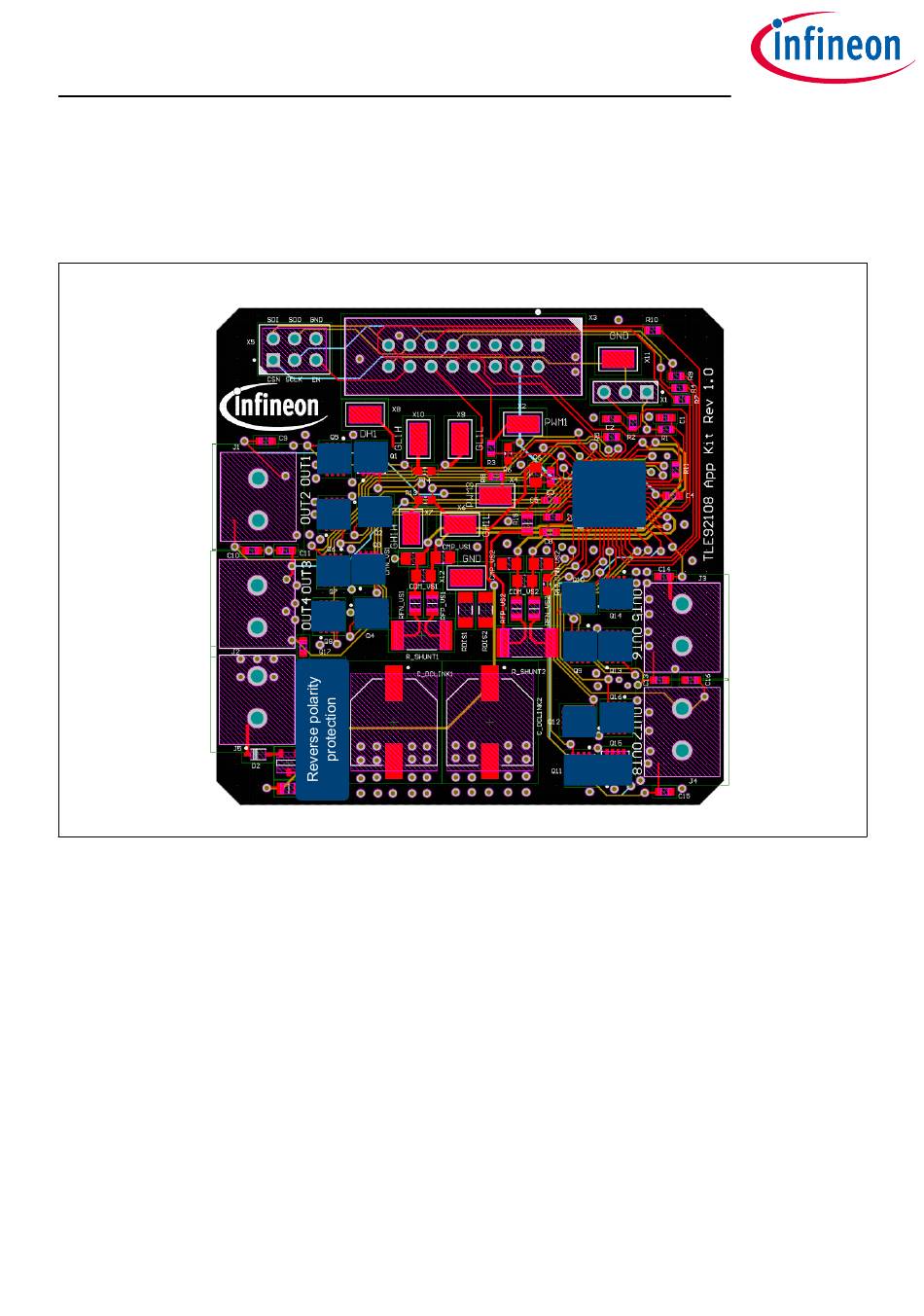

Figure 2 PCB layout
HS1-8, LS1-8
Infineon's new OptiMOS
2
with 3.3 × 3.3 mm leadless power package for very compact and robust automotive system solutions
(Datasheet of IPZ40N04S5-3R1).
Reverse polarity protection
The active reverse polarity protection is based on the design documented in the
for Embedded Power ICs" Application Note
User Manual
TLE92108-232QX).
LS1 HS1
HS2
LS2
HS3
LS3
HS4
LS4
™
5 40 V product family in S3O8 package combines leading power MOSFET technology
(Z864338247).
TLE92108
HS5 LS5
HS6 LS6
HS7 LS7
HS8 LS8
5
"Reverse Polarity Protection
2020-06-30
v1.0
