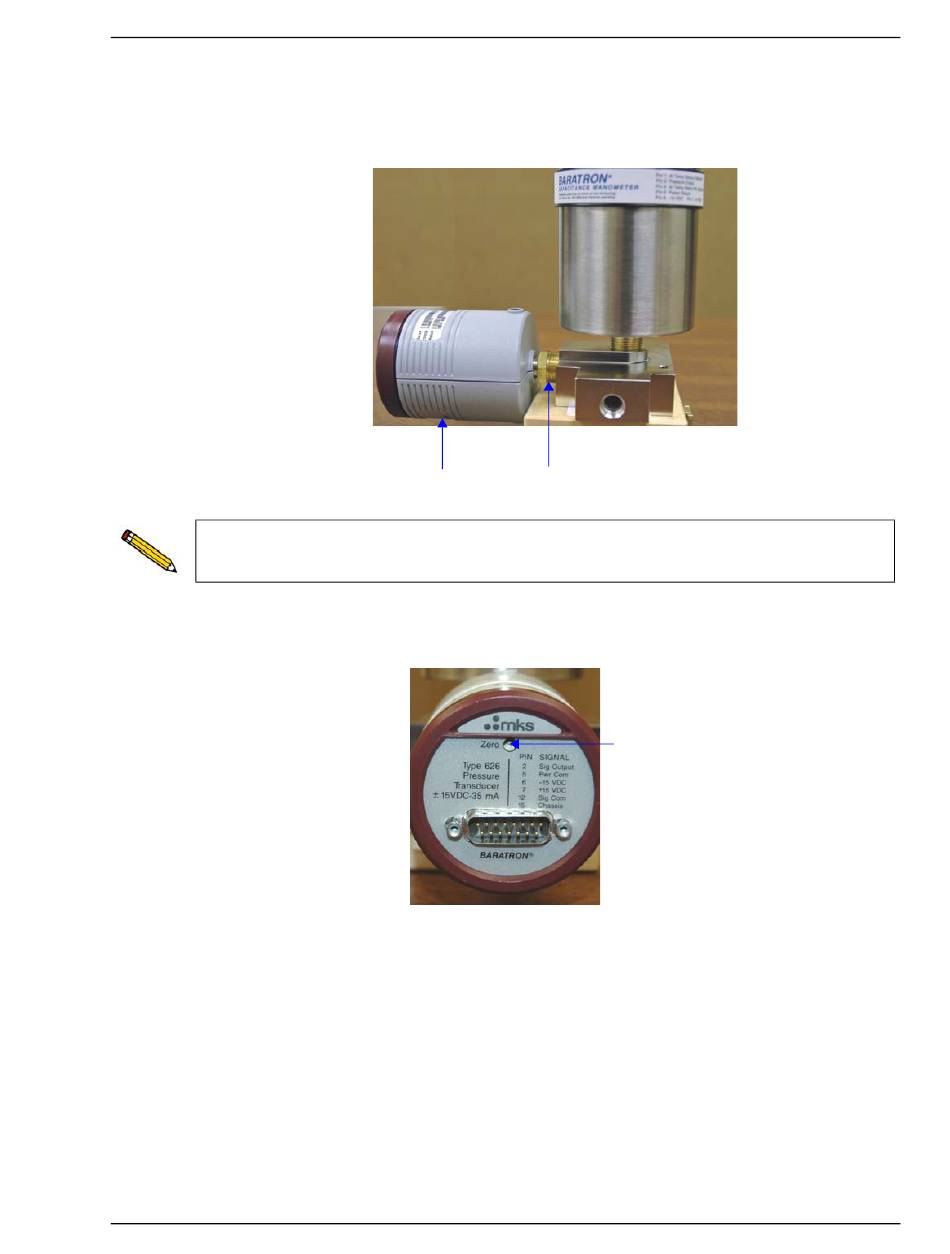

18. Install the 10-mmHg transducer, with new front and rear ferrules, in the front of the
transducer block. Use the connector nut you removed earlier; tighten the nut securely with
a wrench.
Use new ferrules from the upgrade kit. Do not replace the ones you removed, they may
be damaged.
19. Make sure the zero adjustment on the 10-mmHg transducer is accessible. You may have to
cut away some of the foam if it interferes with the transducer.
Feb 2010
10-mmHg transducer Connector nut
Installing the 1-mmHg Transducer Option Only
Zero
adjustment
