12. Assemble the new transducer block, spacers, ferrules and connector nuts.
Use new spacers, ferrules, screws and lock washers from the upgrade kit. Do not
replace the ones you removed, they may be damaged.
13. Insert the mounting screws and lock washers into the block and tighten.
14. Use a wrench to tighten the nuts that connect the transducer block to the manifold tee
connectors and to the gas inlet line.
Feb 2010

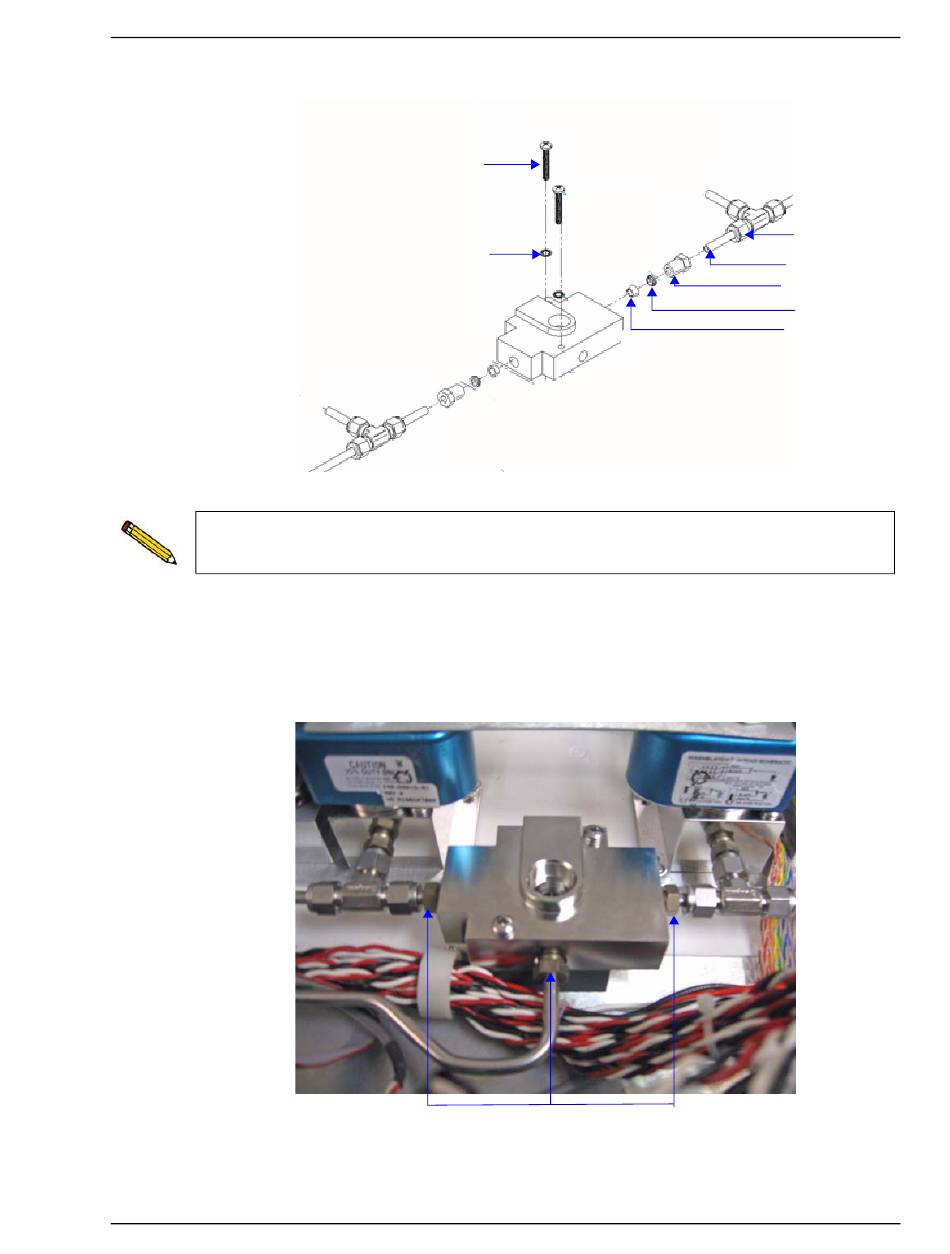

Screw
Lock washer
New Block
Tighten connector nuts
Installing the 1-mmHg Transducer Option Only
Front and rear
ferrules (under
nut)
Spacer
Connector nut
Rear ferrule
Front ferrule
