Installing the 1-mmHg Transducer and Micropore Options
Installing the 1-mmHg Transducer and Micropore Options
This set of instructions describes how to install the 1-mmHg Transducer option and the
Micropore option on ASAP 2420 Krypton systems.
1. Backfill the manifold to 760 mmHg.
2. Close the ASAP 2420 software.
3. Turn off power to the vacuum pumps and to the analyzer.

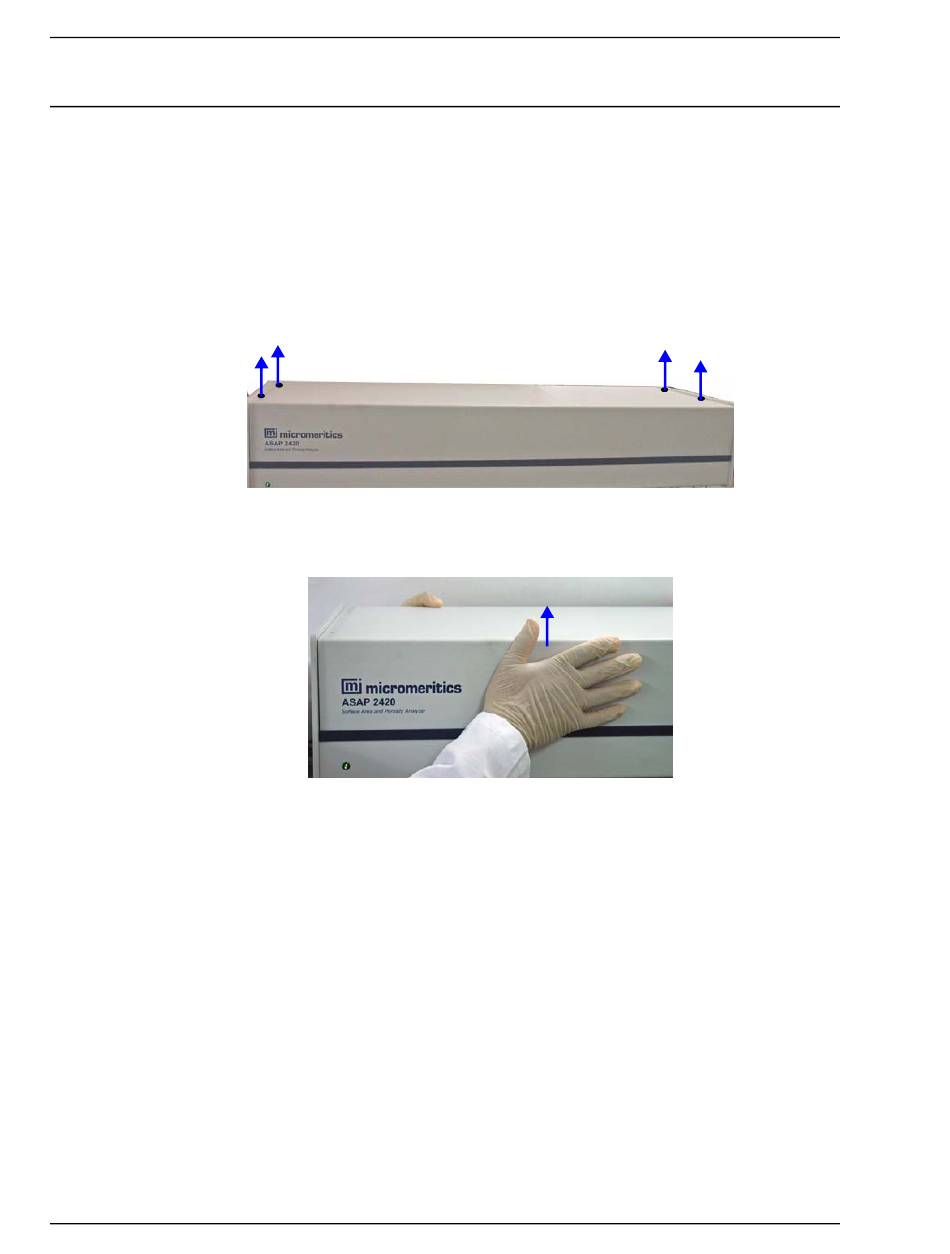

4. Remove the four retaining screws from the top panel of the ASAP 2420.
5. Lift the panel up and off the analyzer.
