Installing the 1-mmHg Transducer and Micropore Options
8. Use a wrench to loosen the nut that connects the 10-mmHg transducer to the transducer
block. Retain the nut, you will use it to reinstall the transducer
9. Remove the transducer from the block.
10. Use a wrench to loosen the nuts that connect the transducer block to the manifold tee
connectors and to the gas inlet line, then remove the block.
12
ASAP 2420 1-mmHg Transducer Option

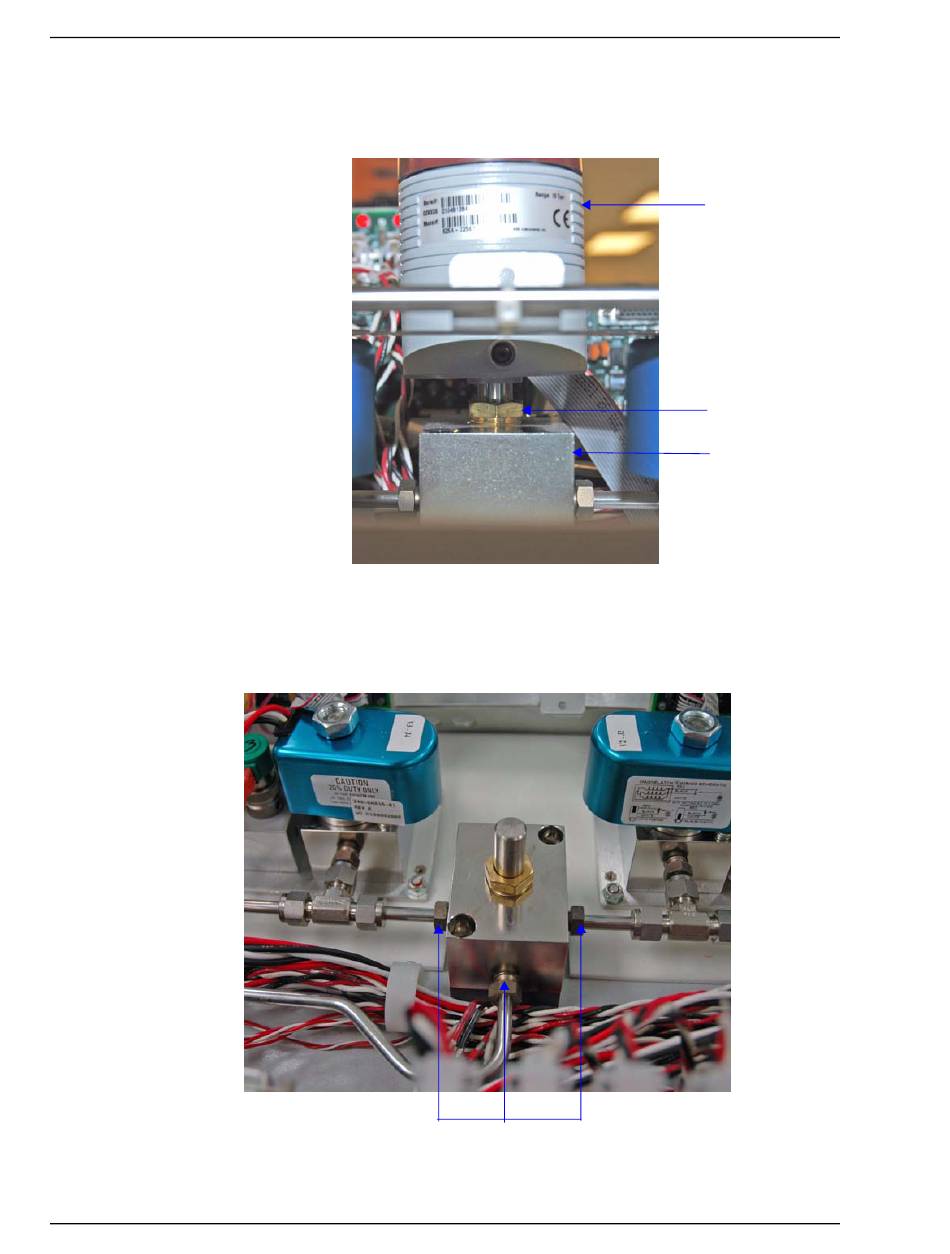

Remove connector nuts
10-mmHg
transducer
Connector nut
Transducer
block
