ASAP 2420 1-mmHg Transducer Option
6. The 10-mmHg transducer must be removed from the top of the old transducer block and
installed on the front of the new block, and the 1-mmHg transducer must be installed on

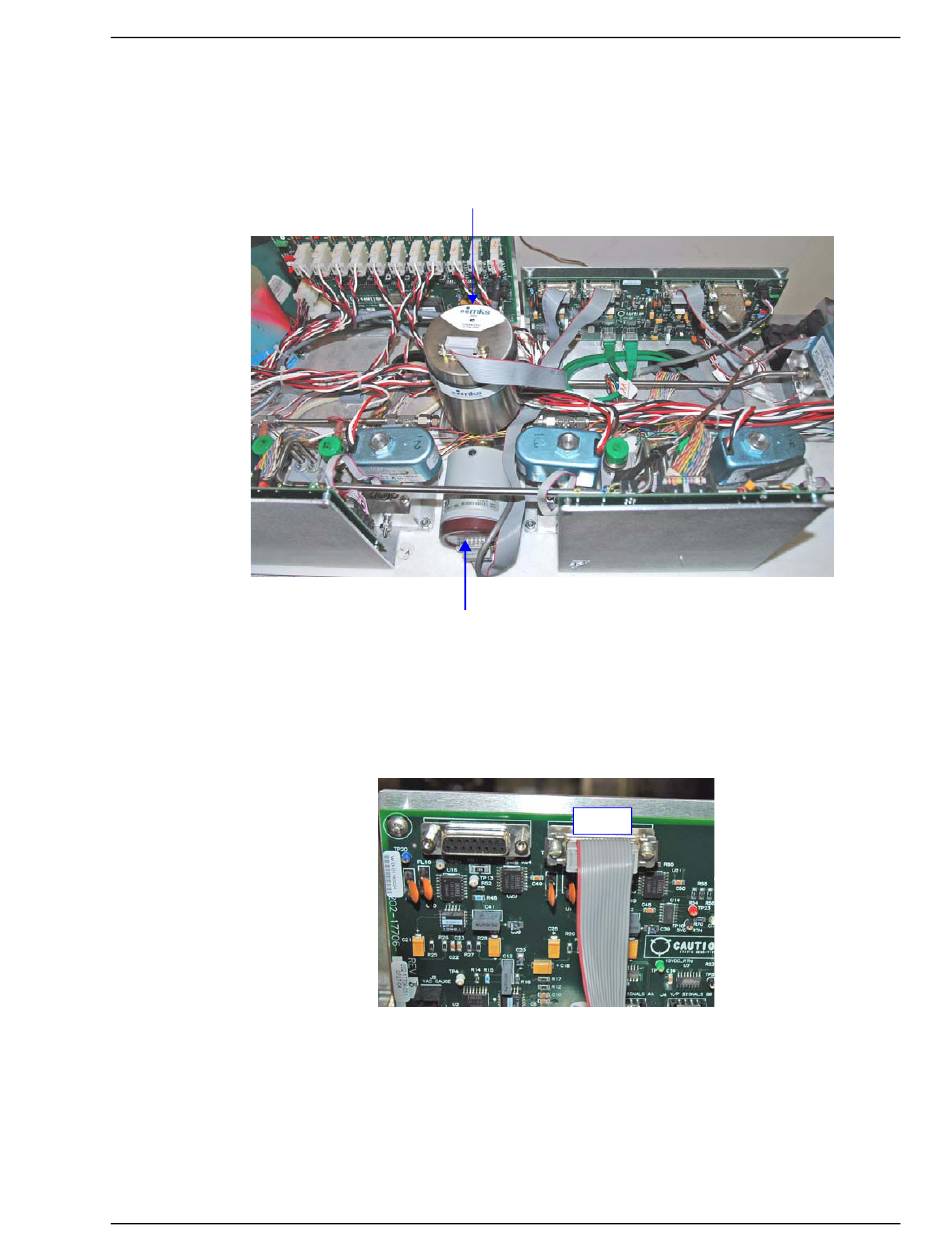

top of the new block. For reference, the following photograph shows the location of the
transducers after installation
7. To remove the 10-mmHg transducer, first disconnect the 10-mmHg transducer ribbon
cable from the J8 connector on the transducer board (P/N 202-17706-001).
Feb 2010
Location of 1-mmHg transducer mounted on top transducer block
Location of 10-mmHg transducer mounted on front of transducer block
Analyzer Top Panel
Installing the 1-mmHg Transducer and Micropore Options
J8
