ASAP 2420 1-mmHg Transducer Option
11. Remove the block mounting screws, connector nuts, and the spacer and ferrules from each
tee connector.
12. Assemble the new transducer block, spacers, ferrules and connector nuts.
Use the new spacers, ferrules, screws and lock washers in the upgrade kit. Do not
replace the ones you removed, they may be damaged.
13. Insert the mounting screws and lock washers into the block and tighten.
Feb 2010
Installing the 1-mmHg Transducer and Micropore Options

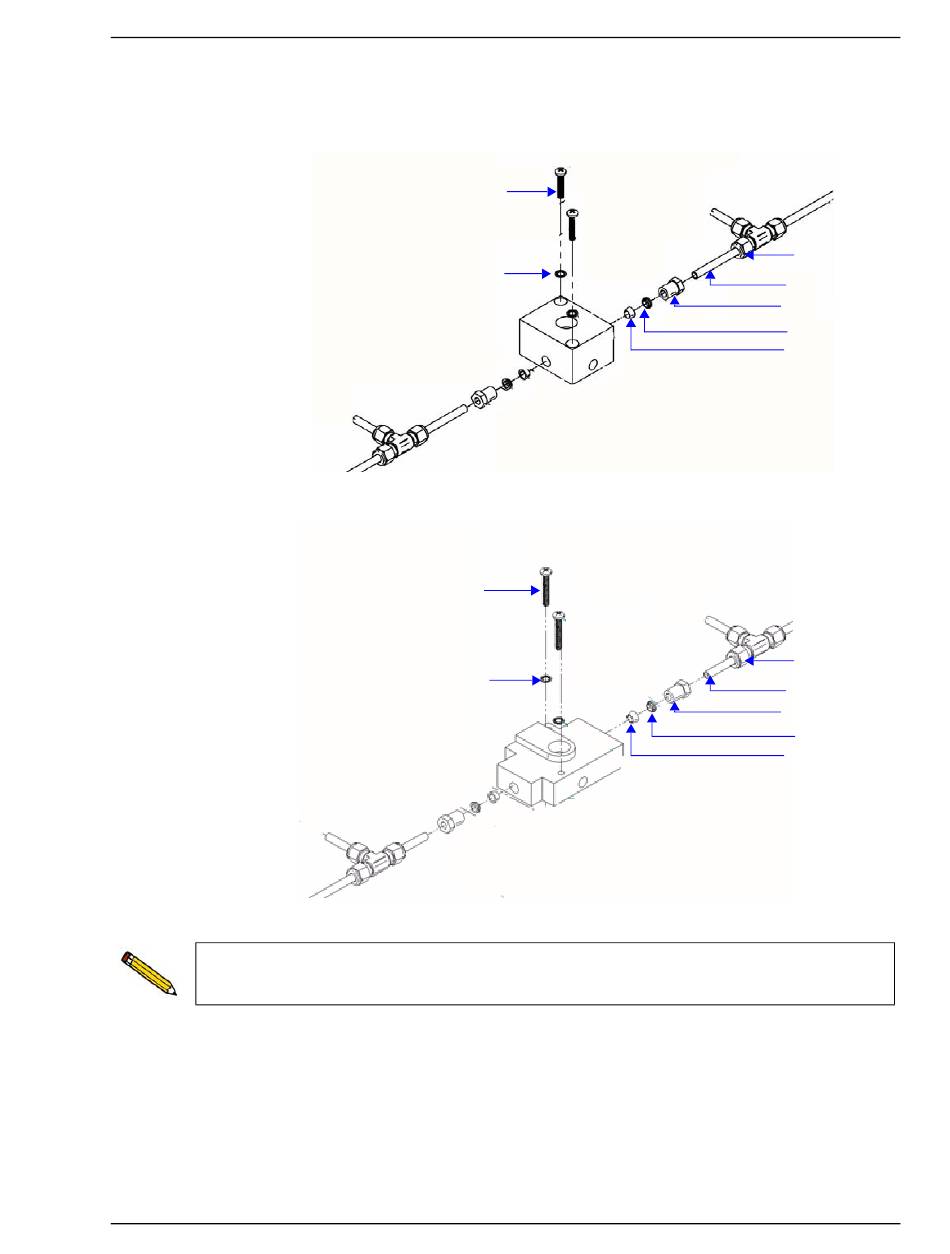

Screw
Lock washer
Old Block
Screw
Lock washer
New Block
Front and rear
ferrules (under
nut)
Spacer
Connector nut
Rear ferrule
Front ferrule
Front and rear
ferrules (under
nut)
Spacer
Connector nut
Rear ferrule
Front ferrule
13
