Installing the 1-mmHg Transducer Option Only

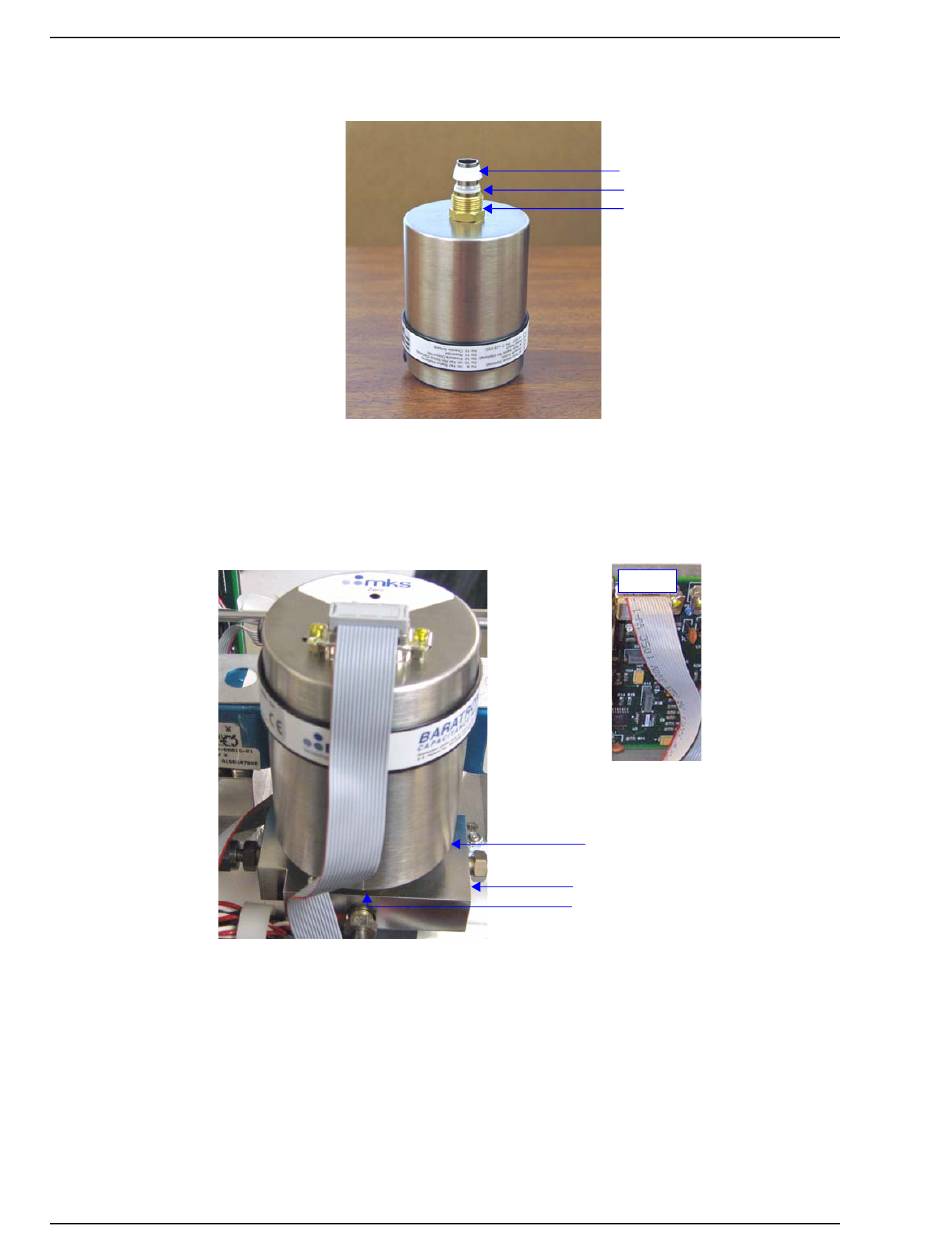

15. Place the connector nut, and front and rear ferrules on the 1-mmHg transducer.
16. Install the transducer on top of the transducer block; tighten securely with a wrench.
17. Connect the ribbon cable to the 1-mmHg transducer and to J7 on the transducer board
(202-17706-001).
6
ASAP 2420 1-mmHg Transducer Option
Front ferrule
Rear ferrule
Nut
J7
Transducer board
1-mmHg transducer
Transducer block
Connector nut (between
transducer and block)
