Micromeritics ASAP 2420 1-mmHg Transducer Option Installation Instruction page 4

Installing the 1-mmHg Transducer Option Only

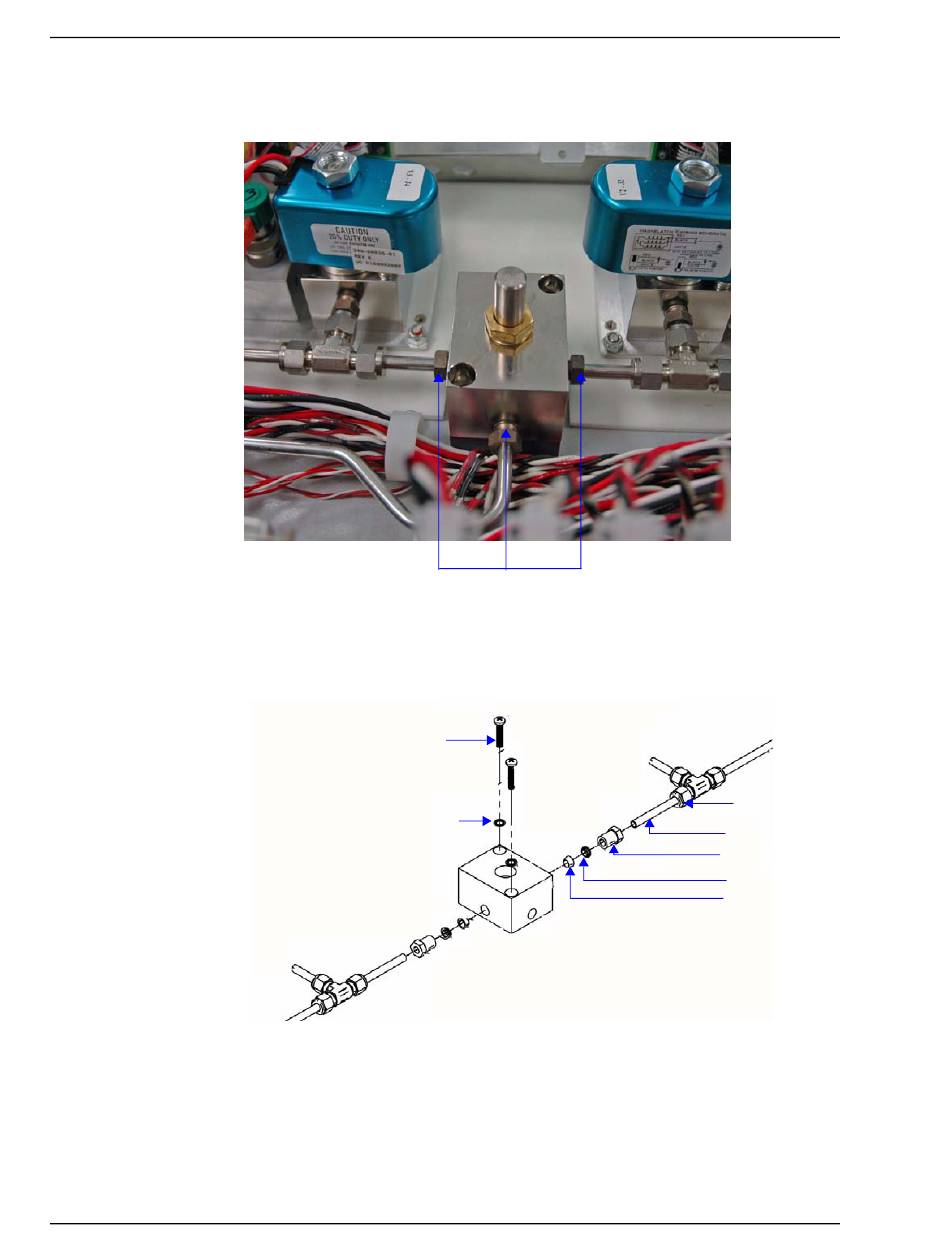

10. Use a wrench to loosen the nuts that connect the transducer block to the manifold tee
connectors and to the gas inlet line, then remove the block.
11. Remove the block mounting screws, connector nuts, and the spacer and ferrules from each
tee connector.
4
Remove connector nuts
Screw
Lock washer
Old Block
ASAP 2420 1-mmHg Transducer Option
Front and rear
ferrules (under
nut)
Spacer
Connector nut
Rear ferrule
Front ferrule
