Installing the 1-mmHg Transducer and Micropore Options

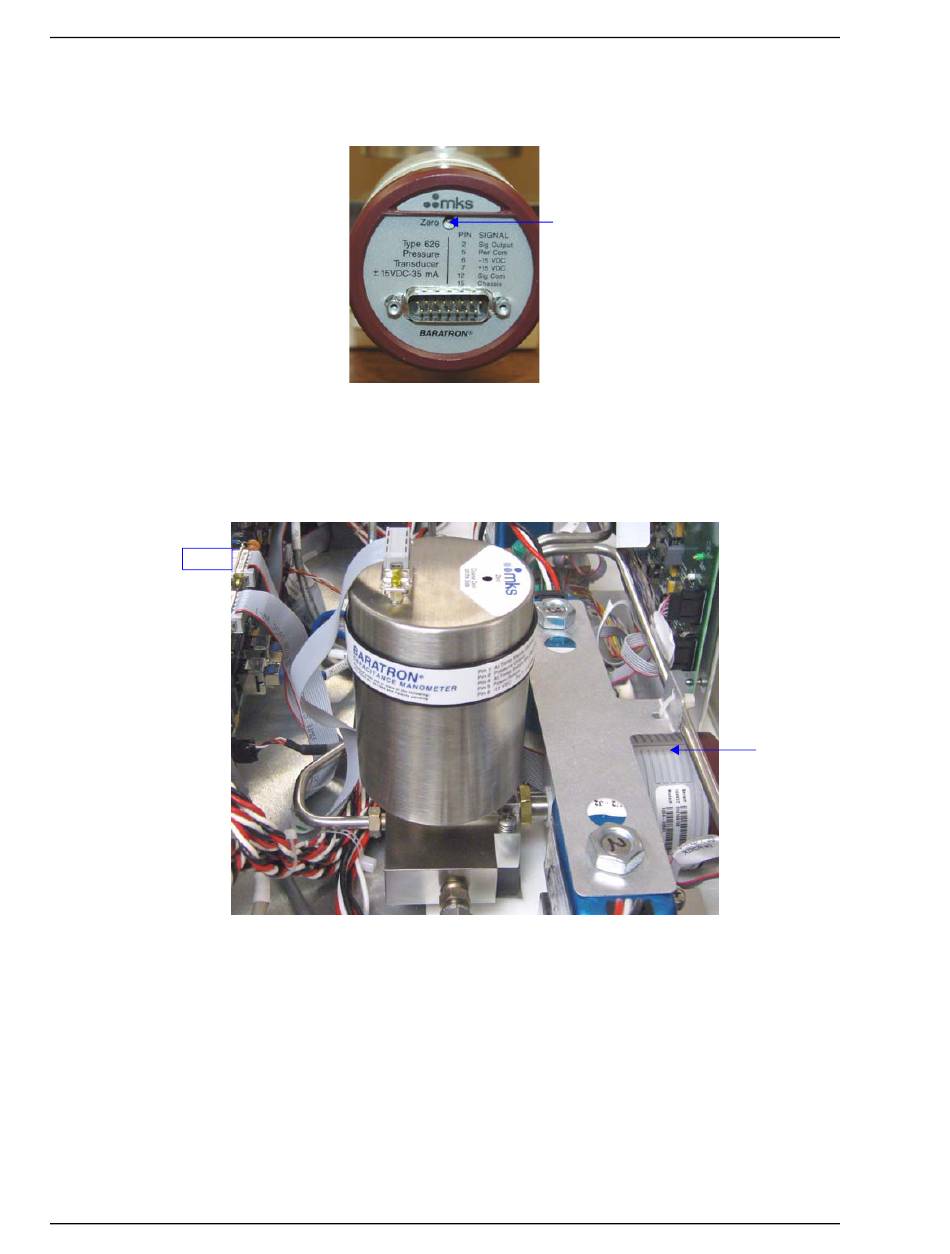

Make sure the zero adjustment on the 10-mmHg is accessible. You may have to cut away
some of the foam if it interferes with the transducer.
19. Attach the ribbon cable from the 10-mmHg transducer to the J8 connector on the
transducer board.
J8
16
ASAP 2420 1-mmHg Transducer Option
Zero
adjustment
10-mmHg
transducer
