ASAP 2420 1-mmHg Transducer Option

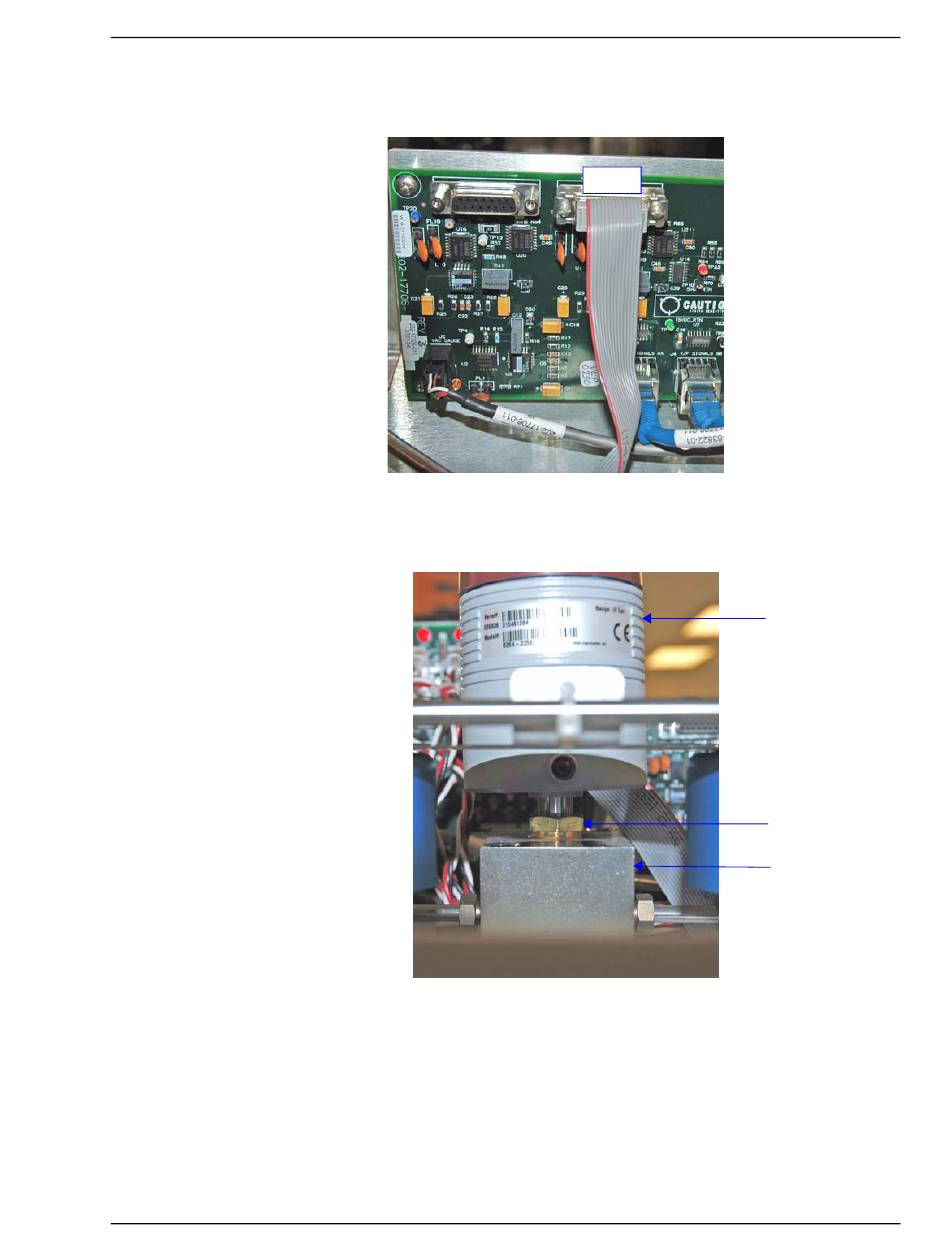

7. To remove the 10-mmHg transducer, first disconnect the 10-mmHg transducer ribbon
cable from the J8 connector on the transducer board (P/N 202-17706-001).
8. Use a wrench to loosen the nut that connects the 10-mmHg transducer to the transducer
block. Retain the nut, you will use it to reinstall the transducer.
9. Remove the transducer from the block.
Feb 2010
Installing the 1-mmHg Transducer Option Only
J8
10-mmHg
transducer
Connector nut
Transducer
block
