Installing the 1-mmHg Transducer and Micropore Options

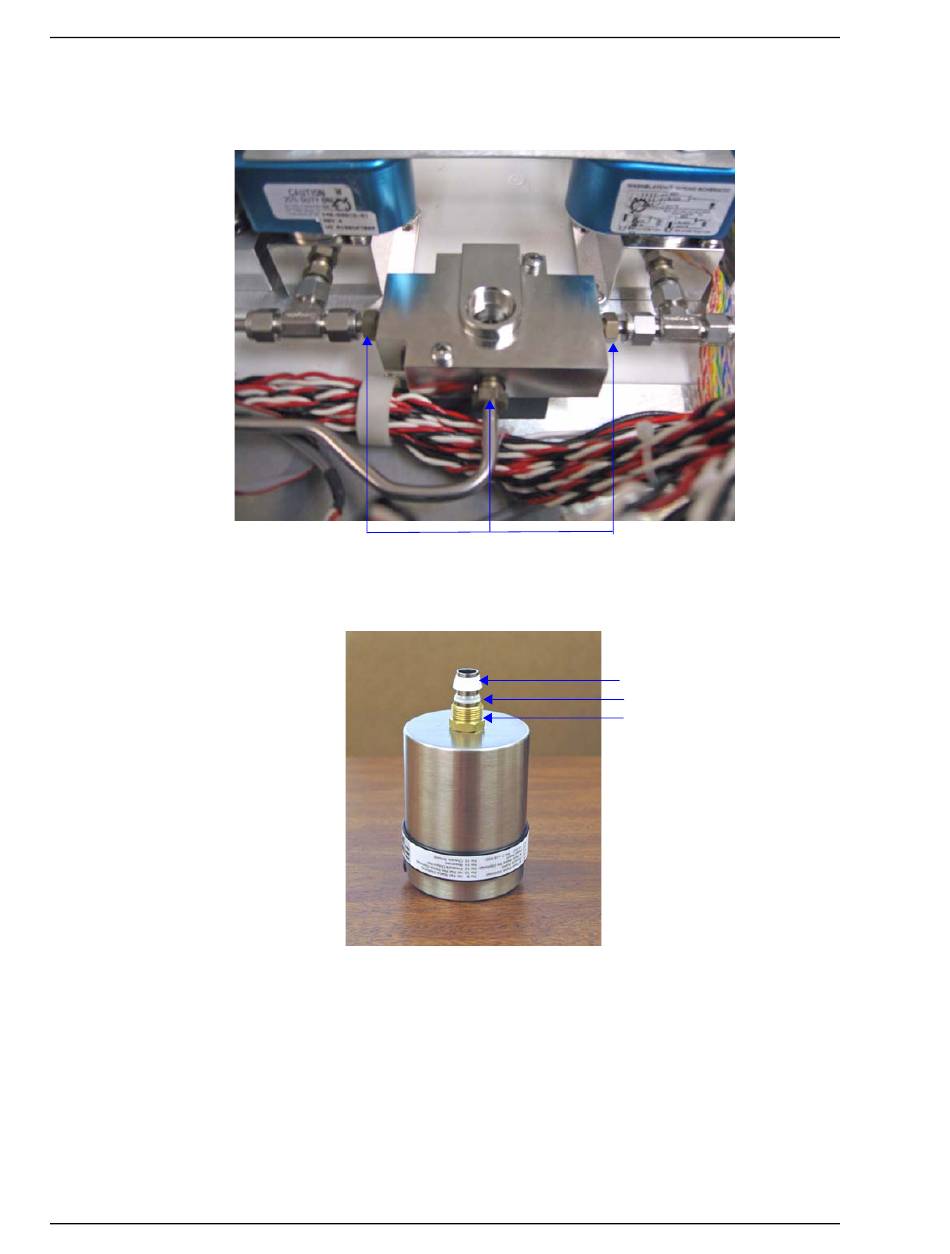

14. Use a wrench to tighten the nuts that connect the transducer block to the manifold tee
connectors and to the gas inlet line.
15. Place the connector nut, and front and rear ferrules on the 1-mmHg transducer.
14
ASAP 2420 1-mmHg Transducer Option
Tighten connector nuts
Front ferrule
Rear ferrule
Nut
