Installation

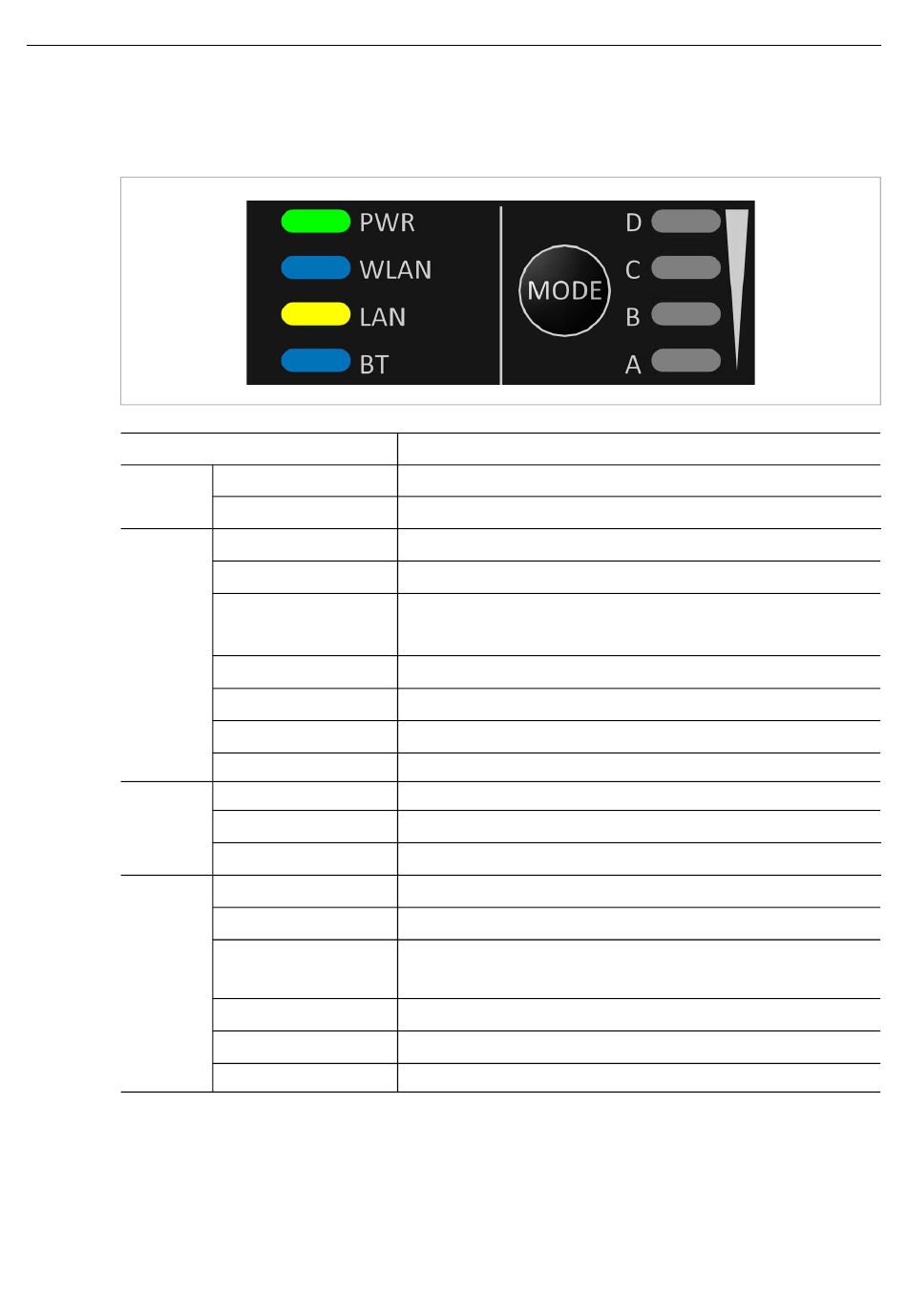

3.3 LED Indicators
3.3.1 Status Indicators
LED Indication
PWR
WLAN
LAN
BT
®
Anybus Wireless Bridge II
Off
Green
Off
Blue, blinking
Blue
Blue, flickering
Purple, blinking
Purple
Red
Off
Yellow
Yellow, flickering
Off
Blue, blinking
Blue
Blue, flickering
Purple
Red
™
Startup Guide
Description
No power
Normal operation
WLAN disabled or no power
Access Point: No clients, awaiting connections
Access Point: Connected to at least one client
Client: Connected to access point
WLAN data activity (when connected)
Client: Scanning for access points
Client: Connecting to a detected access point
Unrecoverable error
No Ethernet connection
Ethernet link present
Ethernet data activity (when connected)
Bluetooth disabled or no power
NAP: No clients, awaiting connections
NAP: Connected to at least one PANU client
PANU: Connected to NAP
Bluetooth data activity (when connected)
PANU: Trying to connect to NAP
Unrecoverable error
