Installation

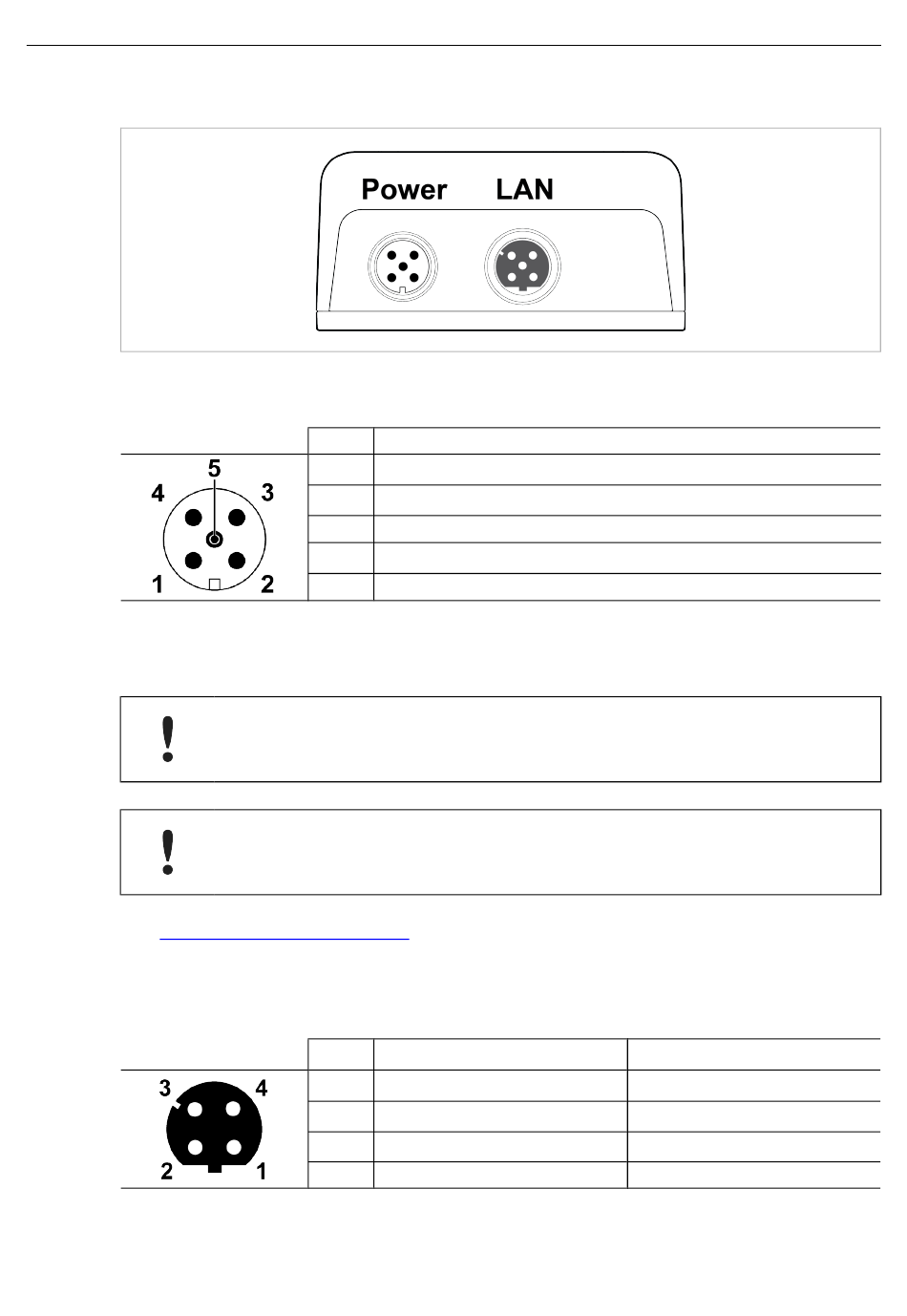

3.2 Connectors
Power Connector (A-coded male M12)
The digital input can be used for additional functionality with advanced
configurations and to remotely reset the unit.
See www.anybus.com/support
LAN Connector (D-coded female M12)
®
Anybus Wireless Bridge II
Pin Function
1
Power + (9–30 V)
2
Digital Input Ground
3
Power Ground
4
Digital Input + (9–30 V)
5 Functional Earth
If voltage is applied to the digital input for more that 10 seconds the unit
will be reset to factory defaults.
Signal wiring for the digital input must be carried in the same cable as
power and functional earth if wiring length exceeds 3 meters.
Pin Function
1 Transmit +
2 Receive +
3 Transmit -
4 Receive -
™
Startup Guide
for more information about the digital input.
Color coding (T568B)
Orange/White
Green/White
Orange
Green
