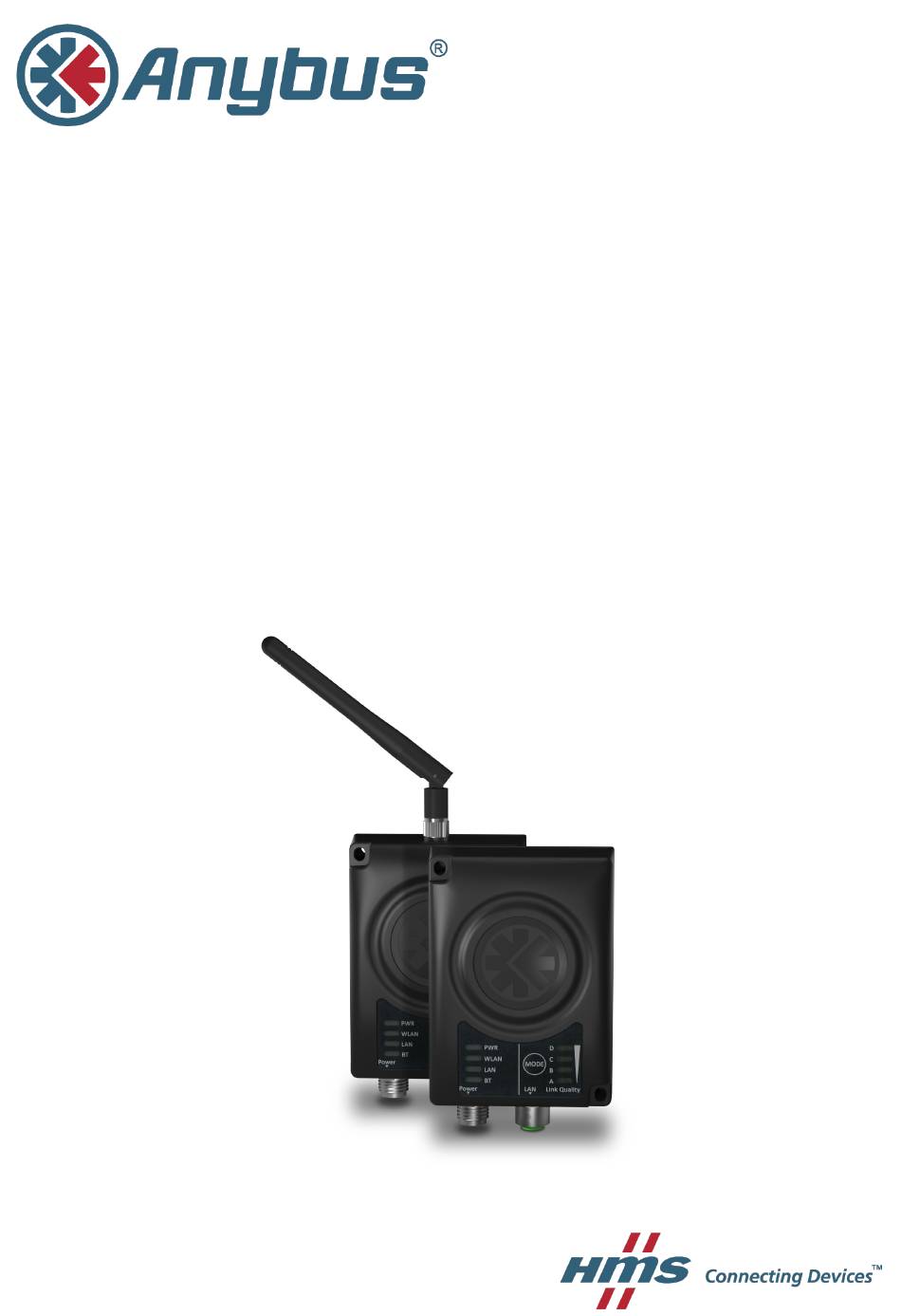

  • Page 1 Anybus ® Wireless Bridge II ™ STARTUP GUIDE SCM-1202-013/SP2167 EN 1.9 ENGLISH...

  • Page 2: Important User Information

    The data and illustrations found in this document are not binding. We, HMS Industrial Networks AB, reserve the right to modify our products in line with our policy of continuous product development. The information in this document is subject to change without notice and should not be considered as a commitment by HMS Industrial Networks AB.

  • Page 3: About This Document

    Preparation 3 (16) Preparation About This Document This document describes how to install Anybus Wireless Bridge II and set up a basic configuration. For additional documentation, configuration examples, FAQs, troubleshooting guides and technical support, please visit www.anybus.com/support. Document Conventions The following formatting conventions are used in this document to indicate safety...

  • Page 4: Product Description

    Interface configuration Internal antenna, Dual M12 External antenna, Dual M12, RP-SMA Functionality Ethernet with digital input Ethernet w/o digital input Example: AWB3AA = Anybus Wireless Bridge II with internal antenna, Ethernet networking and digital input. Anybus ® Wireless Bridge II ™...

  • Page 5: Installation

    50 cm between the devices should also be observed to avoid interference. For models with internal antenna the characteristics of the antenna should be considered when choosing the placement and orientation of the unit. See the Anybus Wireless Bridge II User Manual for more information. Anybus ®...

  • Page 6: Mechanical Installation

    Installation 6 (16) Mechanical Installation Anybus Wireless Bridge II can be screw-mounted directly onto a flat surface or mounted on a standard DIN rail using the optional DIN mounting kit. All measurements are in mm. Anybus ® Wireless Bridge II ™...
  • Page 7 Installation 7 (16) Connectors Power Connector (A-coded male M12) Function Power + (9–30 V) Digital Input Ground Power Ground Digital Input + (9–30 V) Functional Earth The digital input can be used for additional functionality with advanced configurations and to reset the unit. For more information please refer to the Anybus Wireless Bolt/Bridge II AT Reference Guide.

  • Page 8: Led Indicators

    Installation 8 (16) LED Indicators Status Indicators Description LED Indication No power Normal operation Green WLAN disabled or no power Blue, blinking Access Point: No clients, awaiting connections Access Point: Connected to at least one client Blue Client: Connected to access point WLAN Blue, flickering WLAN data activity (when connected)
  • Page 9 Installation 9 (16) Link Quality/Mode Indicators RSSI (WLAN Client) / Link Quality (Bluetooth PANU) Description No connection RSSI/Link Quality < 25 % RSSI/Link Quality 25–50 % RSSI/Link Quality 50–75 % D RSSI/Link Quality > 75 % These LEDs are also used when selecting an Easy Config mode and to indicate update status in Recovery Mode.

  • Page 10: Mode Button

    Installation 10 (16) MODE Button The MODE button can be used to restart or reset the unit as well as for selecting an Easy Config mode. When the unit is powered on, press and hold MODE for >10 seconds and then release it to reset to the factory default settings.

  • Page 11: Web Interface

    Configuration 11 (16) Configuration Anybus Wireless Bridge II is normally configured via the web interface or using one of the pre-configured Easy Config modes. Advanced configuration can be carried out by issuing AT commands via the web interface or over a Telnet or RAW TCP connection to port 8080.
  • Page 12 Configuration 12 (16) 3.2.1 Easy Config Modes Role Description Configure as a client and scan for another Bluetooth PANU client (PANU to PANU). Reset configuration to factory defaults. – Reset IP settings to factory defaults. – Wait for automatic configuration. Client WLAN AP Configure units in mode 4 as clients.

  • Page 13: Factory Restore

    Configuration 13 (16) Factory Restore Any one of these actions will restore the factory default settings: • Clicking on Factory Restore on the System Settings page • Executing Easy Config Mode 2 • Issuing the AT command AT&F and then restarting the unit •...

  • Page 14: Configuration Examples

    Configuration 14 (16) Configuration Examples More examples can be found at www.anybus.com/support. 3.4.1 Ethernet Bridge via WLAN or Bluetooth ® Configuration with Easy Config This example describes how to connect two Ethernet network segments via WLAN or Bluetooth using Easy Config. Configuration Power on the first unit and wait for the LEDs to light up and go out, then press MODE and release it immediately.

  • Page 15: Technical Data

    Technical Data 15 (16) Technical Data Hardware Specifications Order code AWB3000 AWB3010 Wired Interface type Ethernet Antenna 3 internal antennas: 1 external antenna: 2.4 GHz 2.4 GHz + 5 GHz dual band 2.4 GHz MIMO 5 GHz Maximum range 400 m (WLAN and Bluetooth) Dimensions (LxWxH) 93 x 68 x 33.2 mm Weight...
  • Page 16 This page intentionally left blank...

  • Page 17: Wireless Bridge

    When this product reaches its end of life, contact local authorities to learn about disposal and recycling options, or simply drop it off at your local HMS office or return it to HMS. For more information, see www.hms-networks.com.

  • Page 18: Fcc Compliance Statement

    This product contains FCC ID: PVH0965 Any changes or modifications not explicitly approved by HMS Industrial Networks AB could cause the module to cease to comply with FCC rules part 15, and thus void the user's authority to operate the equipment.

  • Page 19: Other Certifications

    (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada. © 2018 HMS Industrial Networks SP2145 1.2 en-US / 2018-10-08 / 9894...
  • Page 20 According to the standards listed above, Anybus Wireless Bridge II modules are certified with the following marking: According to the standards listed above, the Anybus Wireless Bridge II modules shall be supplied by a CLASS 2 / SELV classified power supply.

  • Page 21: Ul Hazardous Locations (Haz.loc.)

    ™ Additional certification and compliance information UL Hazardous Locations (Haz.Loc.) Anybus Wireless Bridge II modules are certified for use in hazardous locations in compliance with the following standards: • ANSI/ISA 12.12.01, 2015, Nonincendive Electrical Equipment for Use in Class I and II, Division 2 and Class III, Divisions 1 and 2 Hazardous (Classified) Locations •...
  • Page 22 AVERTISSEMENT : RISQUE D'EXPLOSION - NE PAS BRANCHER OU DÉBRANCHER L’ANTENNE, SAUF SI LA ZONE EST CERTIFIÉE NON DANGEREUSE. LA CONNEXION OU LA DÉCONNEXION DANS UNE ATMOSPHÈRE EXPLOSIVE PEUT ENTRAÎNER UNE EXPLOSION. © 2018 HMS Industrial Networks AB SCM-1202-065 EN 1.0 / 2017-12-20 / 8535...
  • Page 23 AVERTISSEMENT : RISQUE D'EXPLOSION - SI L’ÉQUIPEMENT EST UTILISÉ UNE ANTENNE EXTERNE, INSTALLER DANS UN BOÎTIER JUGÉ REPRÉSENTATIF DE L’UTILISATION PRÉVUE. POUR ÊTRE CONFORME AUX NORMES HAZLOC, L’ÉQUIPEMENT DOIT ÊTRE INSTALLÉ DANS UN BOÎTIER IP54. © 2018 HMS Industrial Networks AB SCM-1202-065 EN 1.0 / 2017-12-20 / 8535...
  • Page 24 The certification number of the Anybus Wireless Bridge II certified modules according to the ATEX directive 2014/34/EU is: • DEMKO-17ATEX1895X According to the two standards listed above, the Anybus Wireless Bridge II modules are certified with the following marking: The above marking indicates that Anybus Wireless Bridge II modules are certified as electrical equipment •...
  • Page 25 WARNING - EXPLOSION HAZARD - IF THE EQUIPMENT IS TO BE USED OUTSIDE, INSTALL WITHIN AN ENCLOSURE CONSIDERED REPRESENTATIVE OF THE INTENDED USE. TO COMPLY WITH ATEX DIRECTIVES, THE EQUIPMENT MUST BE INSTALLED WITHIN AN IP54 ENCLOSURE. © 2018 HMS Industrial Networks AB SCM-1202-066 EN 1.3 / 2018-05-09 / 8539...
  • Page 26 This page intentionally left blank...
  • Page 27 This page intentionally left blank...
  • Page 28 © 2018 HMS Industrial Networks Box 4126 300 04 Halmstad, Sweden info@hms.se SCM-1202-013/SP2167 EN 1.9 / 2018-09-05 / 9496...
