9 - Properties
9.9

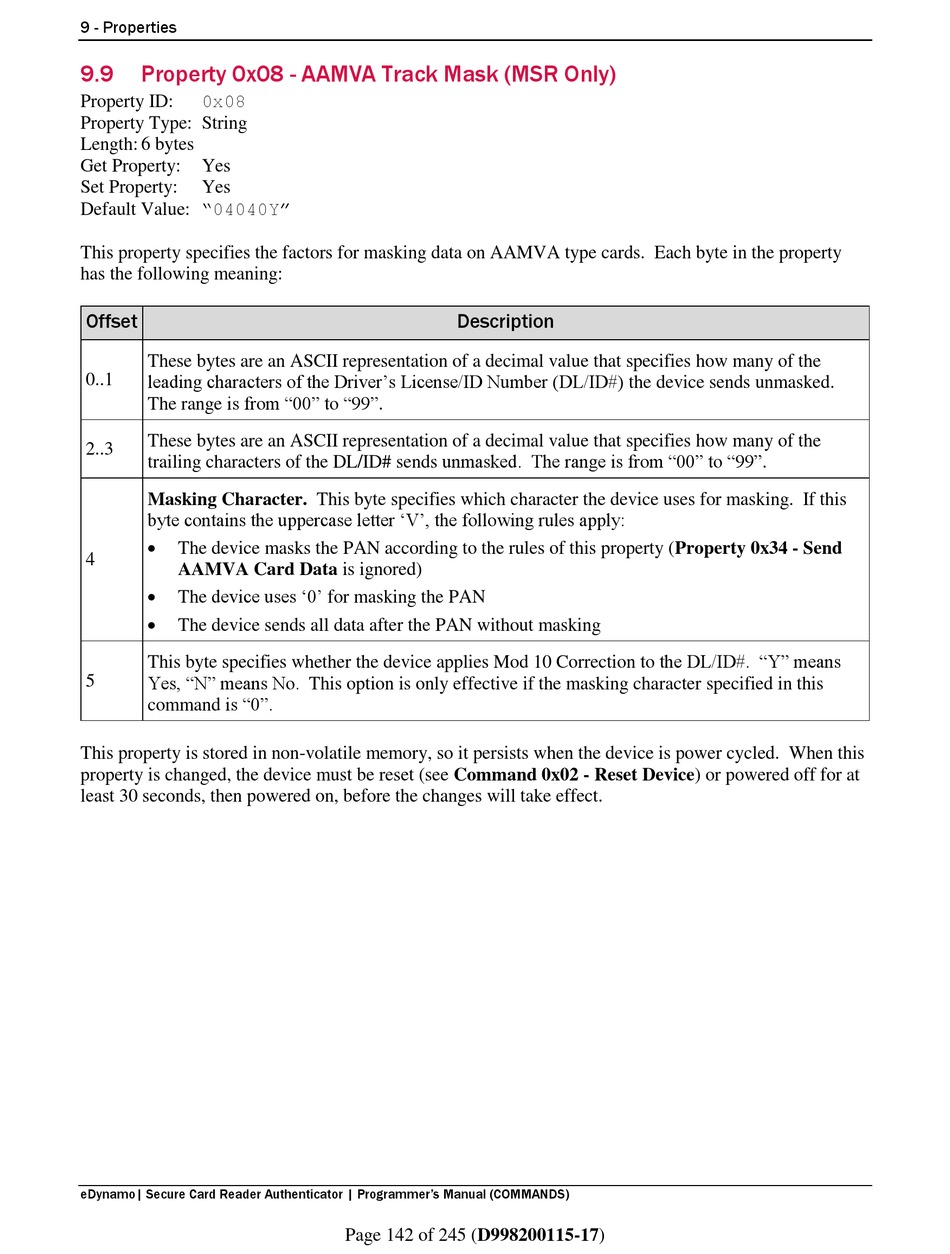

Property 0x08 - AAMVA Track Mask (MSR Only)

0x08
Property ID:
Property Type: String
Length: 6 bytes
Get Property: Yes
Set Property: Yes
Default Value: "04040Y"
This property specifies the factors for masking data on AAMVA type cards. Each byte in the property
has the following meaning:
Offset
These bytes are an ASCII representation of a decimal value that specifies how many of the
leading characters of the Driver's License/ID Number (DL/ID#) the device sends unmasked.
0..1
The range is from "00" to "99".
These bytes are an ASCII representation of a decimal value that specifies how many of the
2..3
trailing characters of the DL/ID# sends unmasked. The range is from "00" to "99".
Masking Character. This byte specifies which character the device uses for masking. If this
byte contains the uppercase letter 'V', the following rules apply:

The device masks the PAN according to the rules of this property (Property 0x34 - Send
4
AAMVA Card Data is ignored)

The device uses '0' for masking the PAN

The device sends all data after the PAN without masking
This byte specifies whether the device applies Mod 10 Correction to the DL/ID#. "Y" means
Yes, "N" means No. This option is only effective if the masking character specified in this
5
command is "0".
This property is stored in non-volatile memory, so it persists when the device is power cycled. When this
property is changed, the device must be reset (see Command 0x02 - Reset Device) or powered off for at
least 30 seconds, then powered on, before the changes will take effect.
eDynamo| Secure Card Reader Authenticator | Programmer's Manual (COMMANDS)
Description
Page 142 of 245 (D998200115-17)
