Magtek eDynamo Programmer's Manual
  1. Manuals
  2. Brands
  3. Magtek Manuals
  4. Card Reader
  5. eDynamo
  6. Programmer's manual

Magtek eDynamo Programmer's Manual

Secure card reader authenticator
Hide thumbs Also See for eDynamo:
Table of Contents

Advertisement

Quick Links

Download this manual

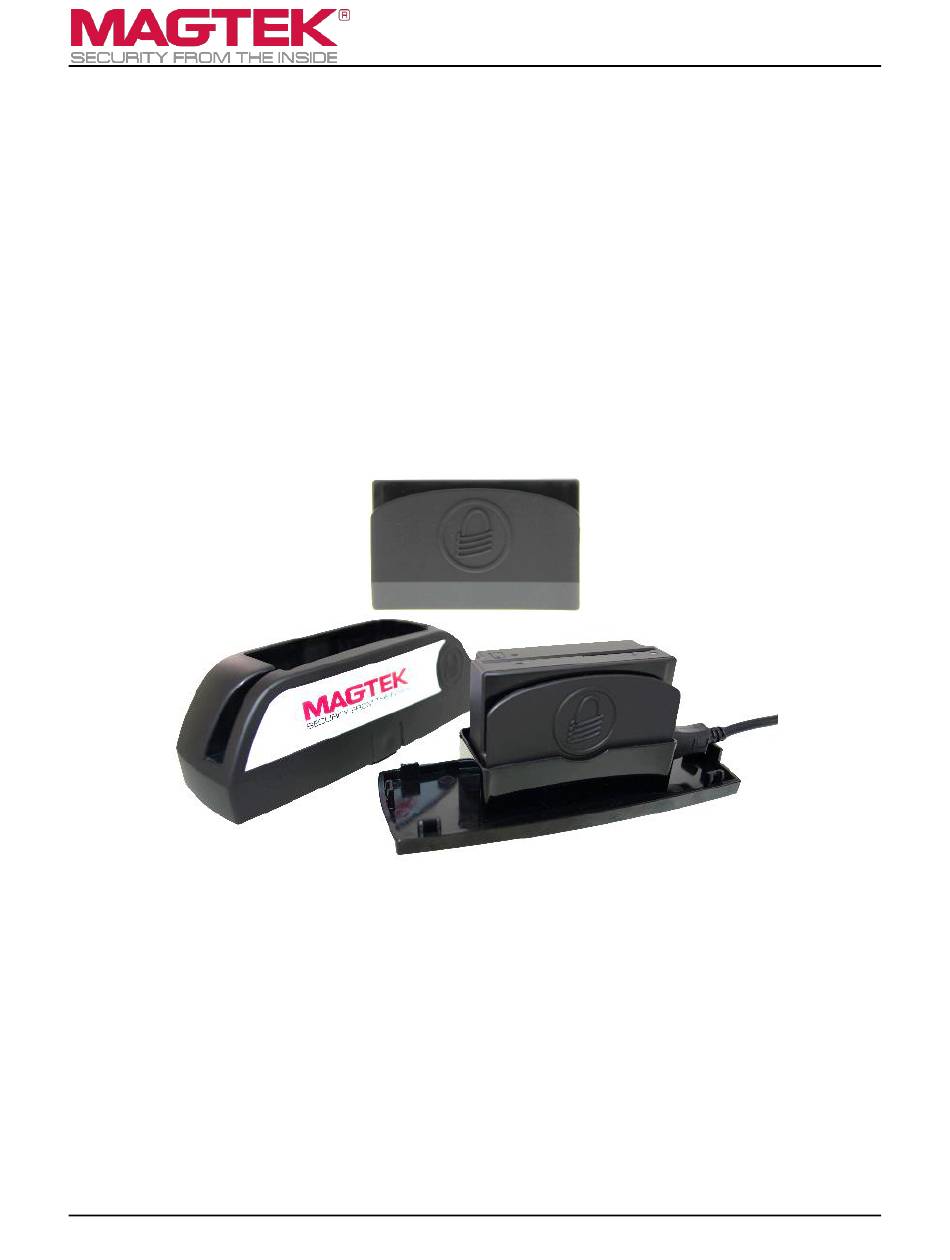

eDynamo
Secure Card Reader Authenticator
Programmer's Manual (COMMANDS)
February 2019
Manual Part Number:
D998200115-17
REGISTERED TO ISO 9001:2015
MagTek I 1710 Apollo Court I Seal Beach, CA 90740 I Phone: (562) 546-6400 I Technical Support: (888) 624-8350
www.magtek.com
