E) Put the protective housing (pos. 1, see fig. 57) on the pump housing (pos. 2, see fig. 57) and screw the hexagon
socket head cap screws (pos. 3, see fig. 57) back in.
Make sure that the
Caution!
the integrated control unit and can

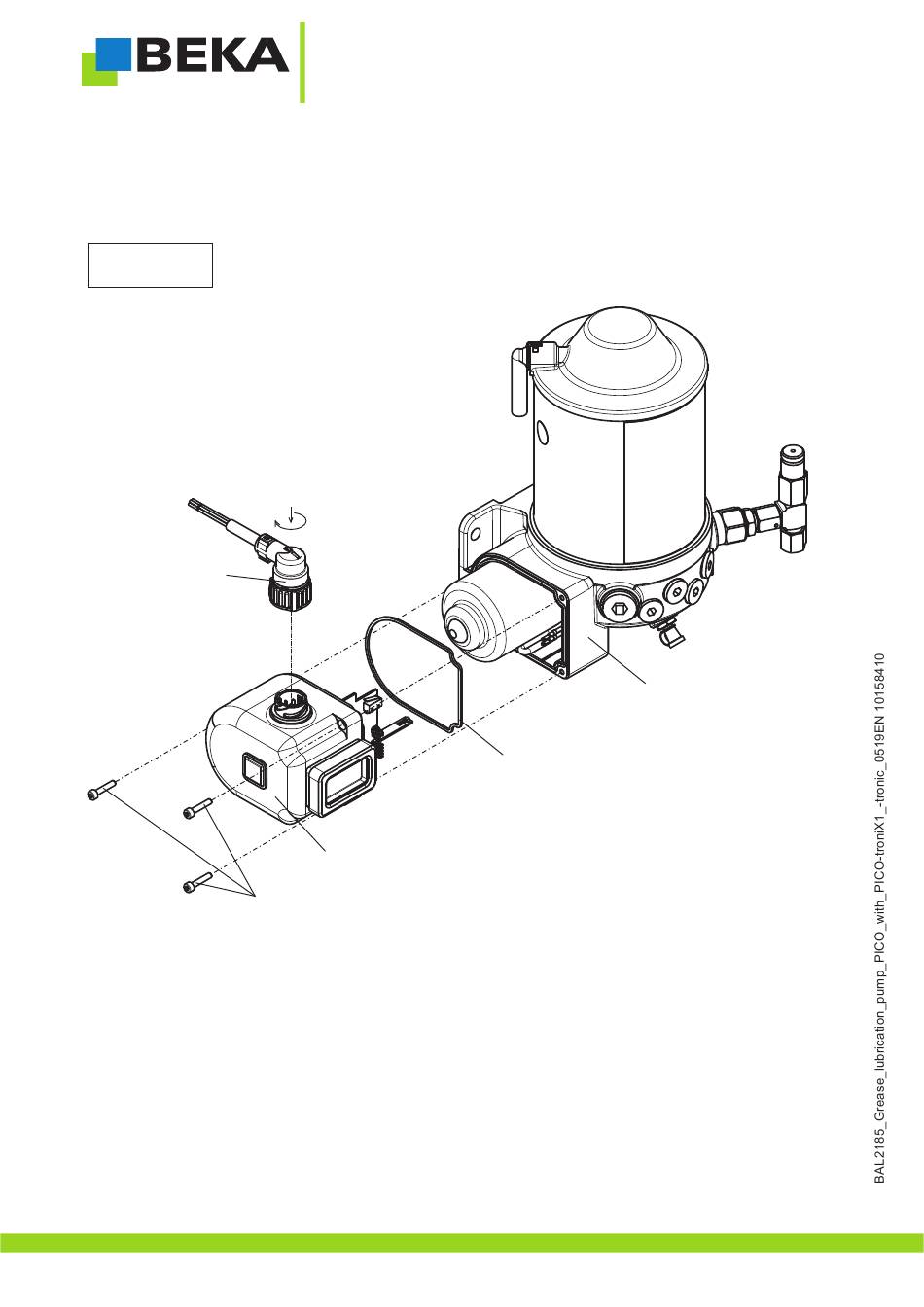

Fig. 57:
5
F) Tighten the hexagon socket head cap screws (pos. 3, see fig. 57) with a tightening torque of approx. 2.5 Nm and
reconnect the device to the power supply (pos. 5, see fig. 57).
