7.2.2 Filling of the device

Pay attention to utmost cleanliness when filling the device. Only fill in clean lubricant. When dirt
particles get into the device, the pistons of the pump elements can wear, which results in the
destruction of the pump elements. The dirt particles can also get into the lubrication system and can
Caution!
clog lines or connected progressive distributors.
Avoid overfilling the device; otherwise lubricant might leak out which can cause environmental
damage!
A) Filling via the cone-type zerk with a filling gun (standard)
Remove the protective cap of the existing cone-type zerk, connect a suitable filling gun (manually operated or pneumatic)
to this one and fill the device up to the maximum level (see fig. 15). Put the protective cap back on the cone-type zerk after
finishing the filling process.

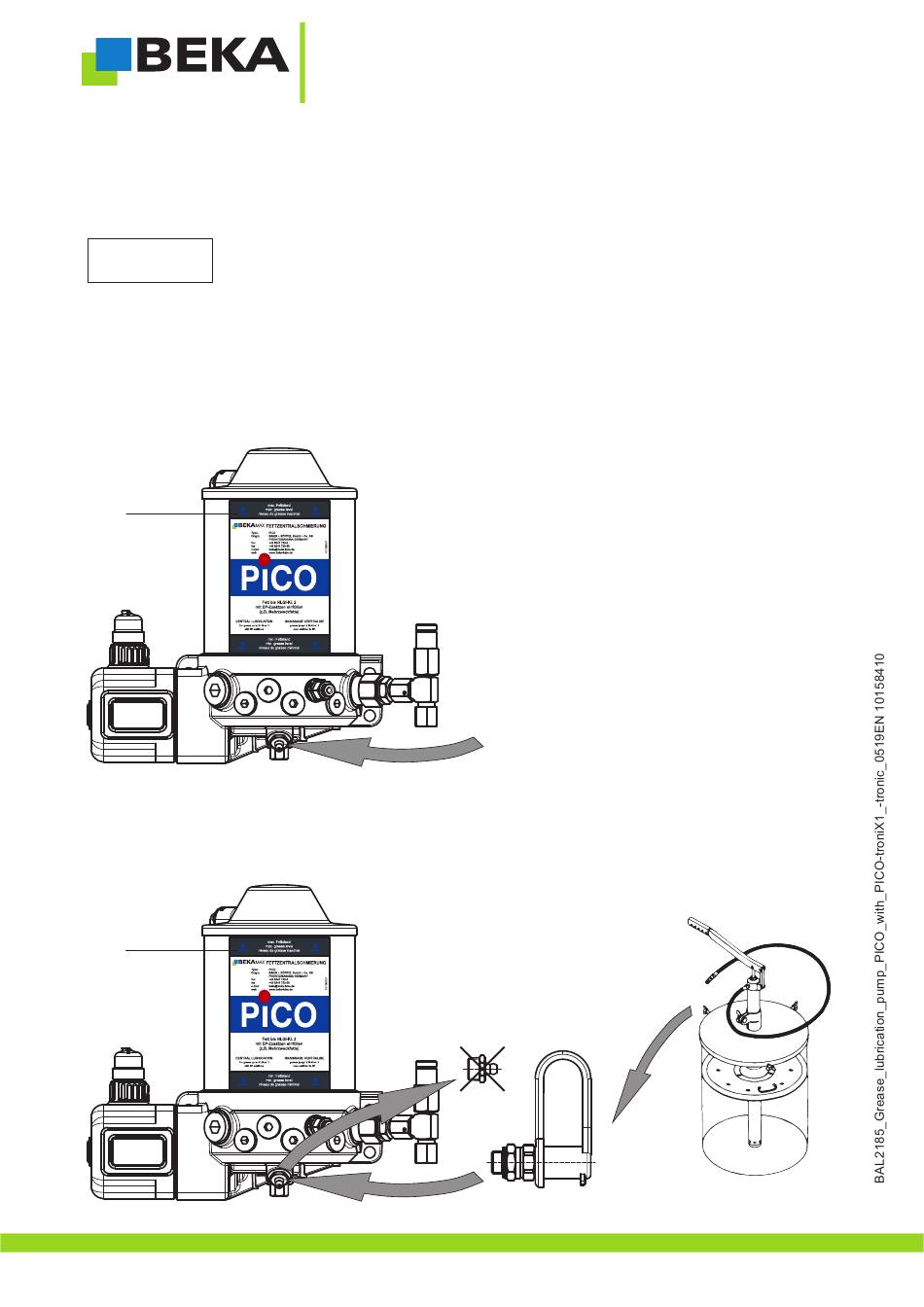

Fig. 15:
Level max.
B) Filling via the filling connection G1/4
Remove the cone-type zerk and replace it by a filling connection G1/4 (order no.: 21590061006). Connect a suitable filling
pump to the filling connection G1/4 and fill the device up to the maximum level (see fig. 16).
Fig. 16:
Level max.
