6.3.2 Assembly of a pump element

C) Exchange the sealing, screw in the pump element and adjust it until the desired position has been reached.

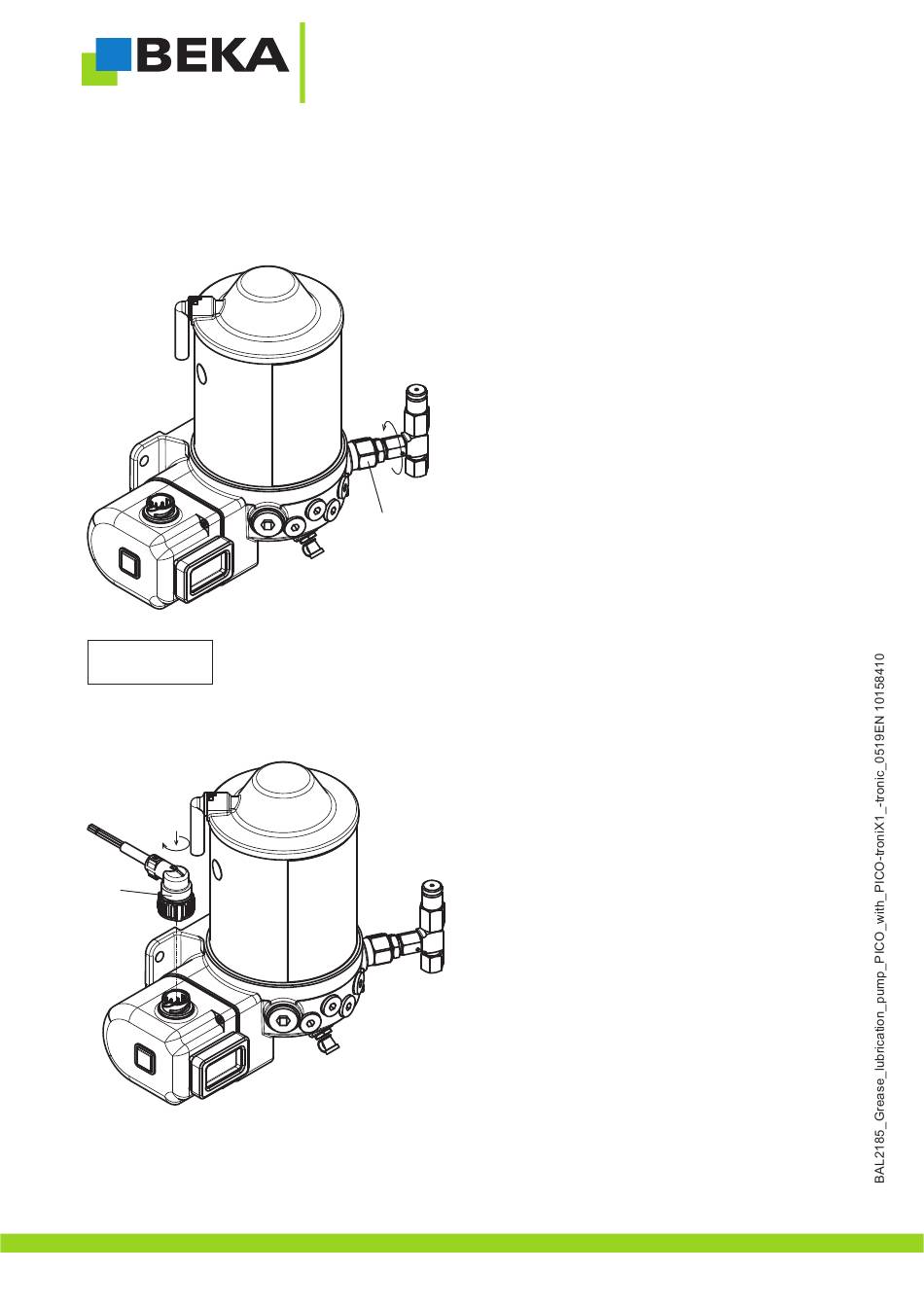

Tighten the pump element with the below indicated tightening torque (see fig. 7).
Fig. 7:
Tighten the pump elements PE-5 to PE-50 with a tightening torque of 20 Nm ±10%.
Notice!
Tighten the pump elements PE-60 F to PE-170 F and PE-120 FV with a tightening torque of
45 Nm ±10%.
D) Reconnect the device to the power supply (pos. 1, see fig. 8)
Fig. 8:
1
Initiate a trial run and let the device operate with open outlets until the lubricant leaks out bubble-free.
