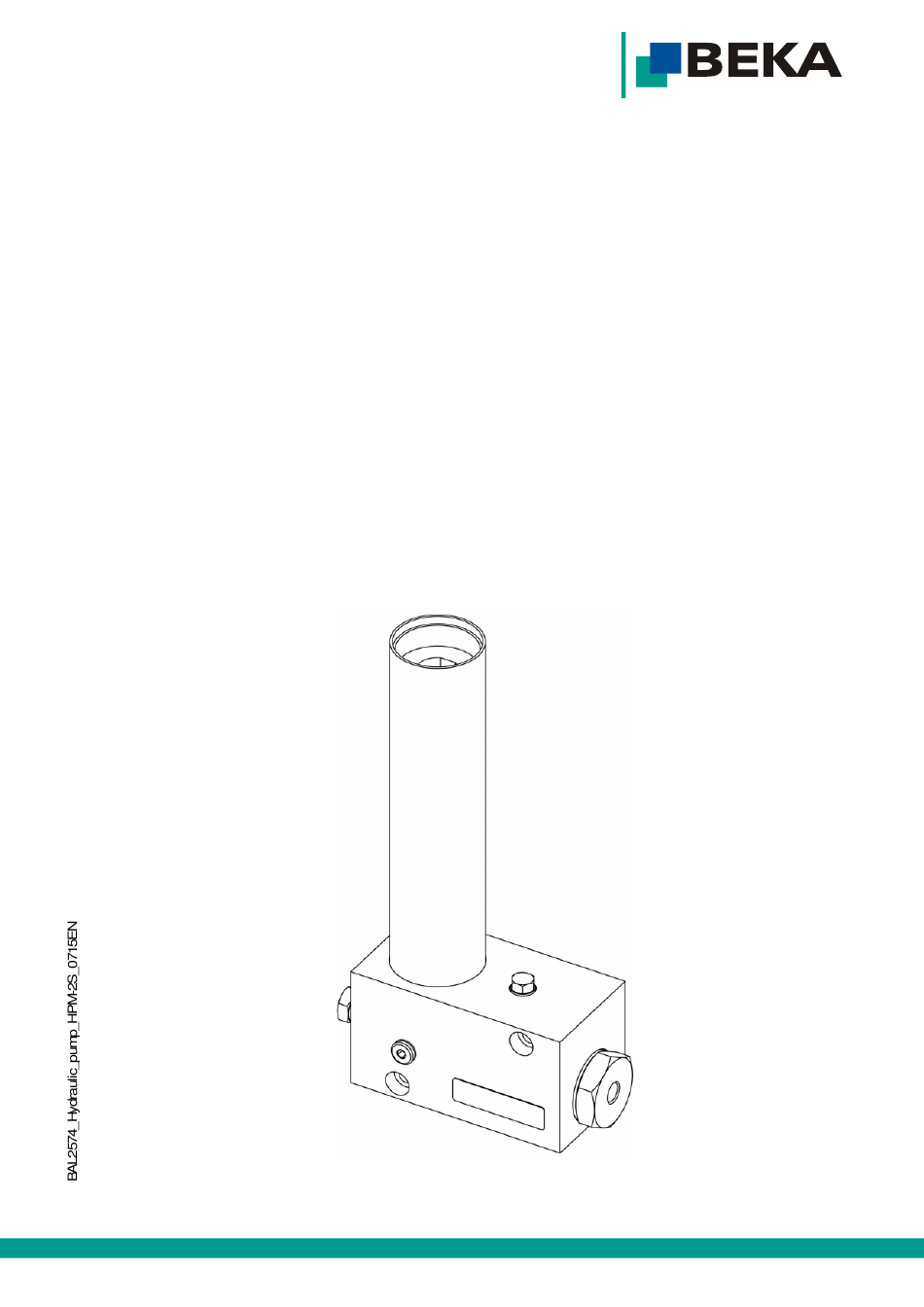

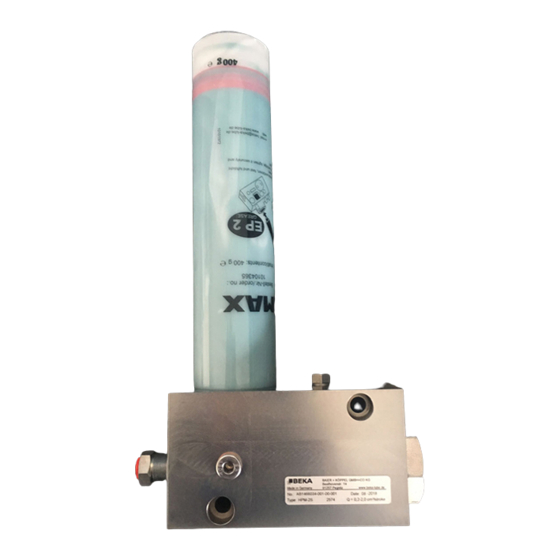

- Page 1 ...a product of Hydraulic pump HPM-2S Article-no. 2574 … Revision 07-2015 Original operating- assembly manual Page 1 © BEKA 2015 All rights reserved!
-
Page 2: Table Of Contents
Troubleshooting .................................... 11 Spare part list....................................12 Spare part drawing ..................................13 Dimensional drawing ..................................14 Details of the manufacturer................................15 Page 2 © BEKA 2015 All rights reserved! -
Page 3: Technical Data
Installation position: ............................cartridge vertically upright Hydraulic connection (A, Fig.1): Order number M10x1: ....................................2574 A20101 G¼: ....................................... 2574 A20102 9/16”-18 UNF: ..................................2574 A20103 Fig.1 The hydraulic pump HPM-2S is consecutively called a device. Page 3 © BEKA 2015 All rights reserved! -
Page 4: General Safety Instructions
Failure of important device functions. Failure of prescribed methods for maintenance and repair. Danger to persons by electrical, mechanical and chemical effects. Danger to the environment by leakage of hazardous substances. Page 4 © BEKA 2015 All rights reserved! -
Page 5: Owner's/Operators' Obligations
The use of other parts can result in the loss of any liabilities for the resulting consequences. BEKA does not assume liability for parts that are retrofit by the operator. -
Page 6: Intended Use
The device must only be used according to the technical data (see chapter 1 „technical data”). Never exceed the mentioned values. Never operate the device without lubricant. Unauthorized alterations of the device are not permitted. BEKA is not liable for damage of machine or persons that results thereof. -
Page 7: Assembly Instructions
Put a bypass line from the hydraulic system of the carrier unit to the hydraulic connection of the device (X, Fig.2) This line has to be relieved to drain surplus oil from the hydraulic pressure chamber in the reservoir during Note! the lubrication supply. Fig.2 Page 7 © BEKA 2015 All rights reserved! -
Page 8: Start Up
Ventilate the oil section of the device after each first- or reconnection of the hydraulic connection. Release ventilation screw (9, Fig.2) (it is not necessary to turn it out completely). Fill oil area until oil escapes through the ventilation screw. Retighten ventilation screw. Page 8 © BEKA 2015 All rights reserved! -
Page 9: Functional Description
The thereby developed vacuum sucks lubricant (Z) into the suction chamber (T) for the next stroke. Hydraulic scheme Fig.4 Pressure transmission The delivery pressure is directly related to the hydraulic pressure which actuates the device (see Fig.5). Fig.5 Hydraulic inlet pressure in bar Page 9 © BEKA 2015 All rights reserved! -
Page 10: Maintenance
Disposal of the device must be done properly and professionally and according to the national and international laws and regulations. Moreover, BEKA devices could contain batteries. Professionally and properly disposed batteries will be recycled. They contain important raw materials. Page 10... -
Page 11: Troubleshooting
Sealing to cartridge leaky Renew sealing Counter pressure in lubrication system Check lubrication system too high (line rest pressure too high) Delivery rate adjusted wrong Adjust delivery rate Lubricant quantity too low or too high Page 11 © BEKA 2015 All rights reserved! -
Page 12: Spare Part List
Sealing washer ............................080100134 O-ring 38x4 ............................09037710315141 O-ring 55x4 ............................09037710286181 Cartridge type S – EP 2 grease, 400g ......................0320252 Sealing screw M10x1 ..........................090090800213 Sealing ring A10x14x1 .......................... 090760300311 Page 12 © BEKA 2015 All rights reserved! -
Page 13: Spare Part Drawing
...a product of 14. Spare part drawing Page 13 © BEKA 2015 All rights reserved! -
Page 14: Dimensional Drawing
...a product of 15. Dimensional drawing For technical details of the hydraulic connection A, see chapter 1. Technical data. Page 14 © BEKA 2015 All rights reserved! -
Page 15: Details Of The Manufacturer
Wheel flange central lubrication systems Rolling mill central lubrication systems Utility vehicle central lubrication systems Progressive distributors Control and monitoring devices Subject to alterations! We do not accept liability for errors, technical mistakes and misprints! Page 15 © BEKA 2015 All rights reserved!
