8.4.4 Pump elements PE-5, PE-10, PE-15, PE-25 and PE-50

The pump elements PE-5, PE-10, PE-15, PE-25 and PE-50 are intended for the use in multi-line lubrication systems. The
delivery rate of these pump elements is set to 5 mm³/stroke (PE-5), 10 mm³/stroke (PE-10), 15 mm³/stroke (PE-15),
25 mm³/stroke (PE-25) or 50 mm³/stroke (PE-50) and cannot be adjusted. The pump elements are deliverable with
different pipe connections (see fig. 27).

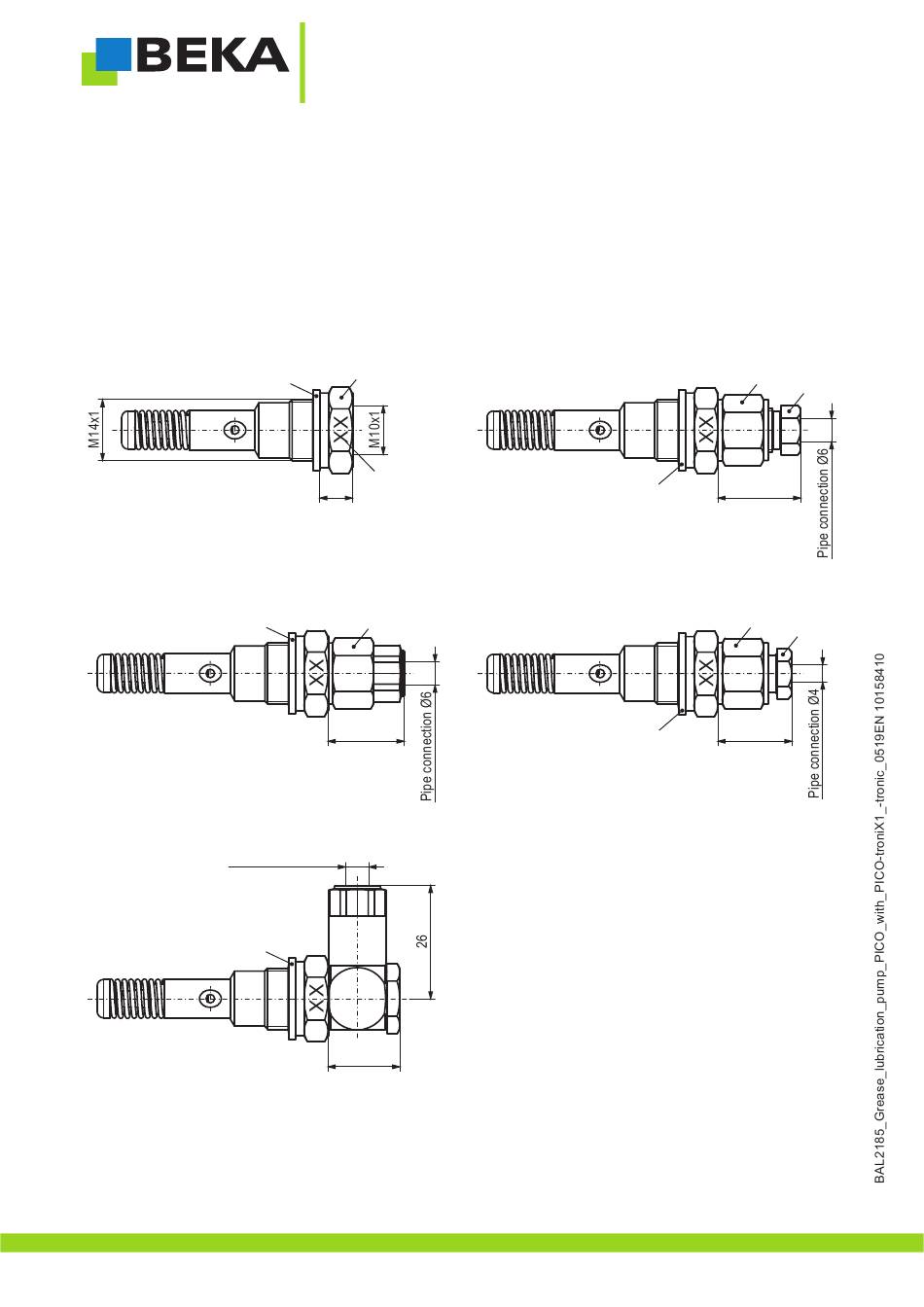

Fig. 27:
Thread connection M10x1
USIT ring
U 18,7x14x1,5
Straight plug-type connection Ø6
USIT ring
U 18,7x14x1,5
Plug-type connection 90° for pipe Ø6
Pipe connection Ø6
USIT ring
U 18,7x14x1,5
© BEKA 201 All 9 rights reserved
...a product of
AF 17
Metering volume
7,5
stamped at
hexagonal
AF 14
17,5
16,5
!
Pipe connection Ø6 with ÜS6 (union screw)
and DKR6 (double conical ring)
USIT ring
U 18,7x14x1,5
Pipe connection Ø4 with ÜS4 (union screw)
and DKR4 (double conical ring)
USIT ring
U 18,7x14x1,5
28
AF 14
AF 10
19
AF 14
AF 10
17
