Level monitoring

8.6.1 Level monitoring for devices with follow-up piston

Alevel monitoring is installed in devices with follow-up piston by default (see fig. 32).
When the reservoir of the device is empty, the follow-up piston (1) pushes onto a feeler (2). This feeler actuates a
switch (3) which sends a signal to the integrated control unit. The control unit displays the error
the device off in order to prevent that air is pumped into the lubrication system.
When the reservoir of the device is refilled, the switch interrupts the signal and the error is automatically reset.
The current level can additionally be checked visually at the level sticker (see fig. 33).

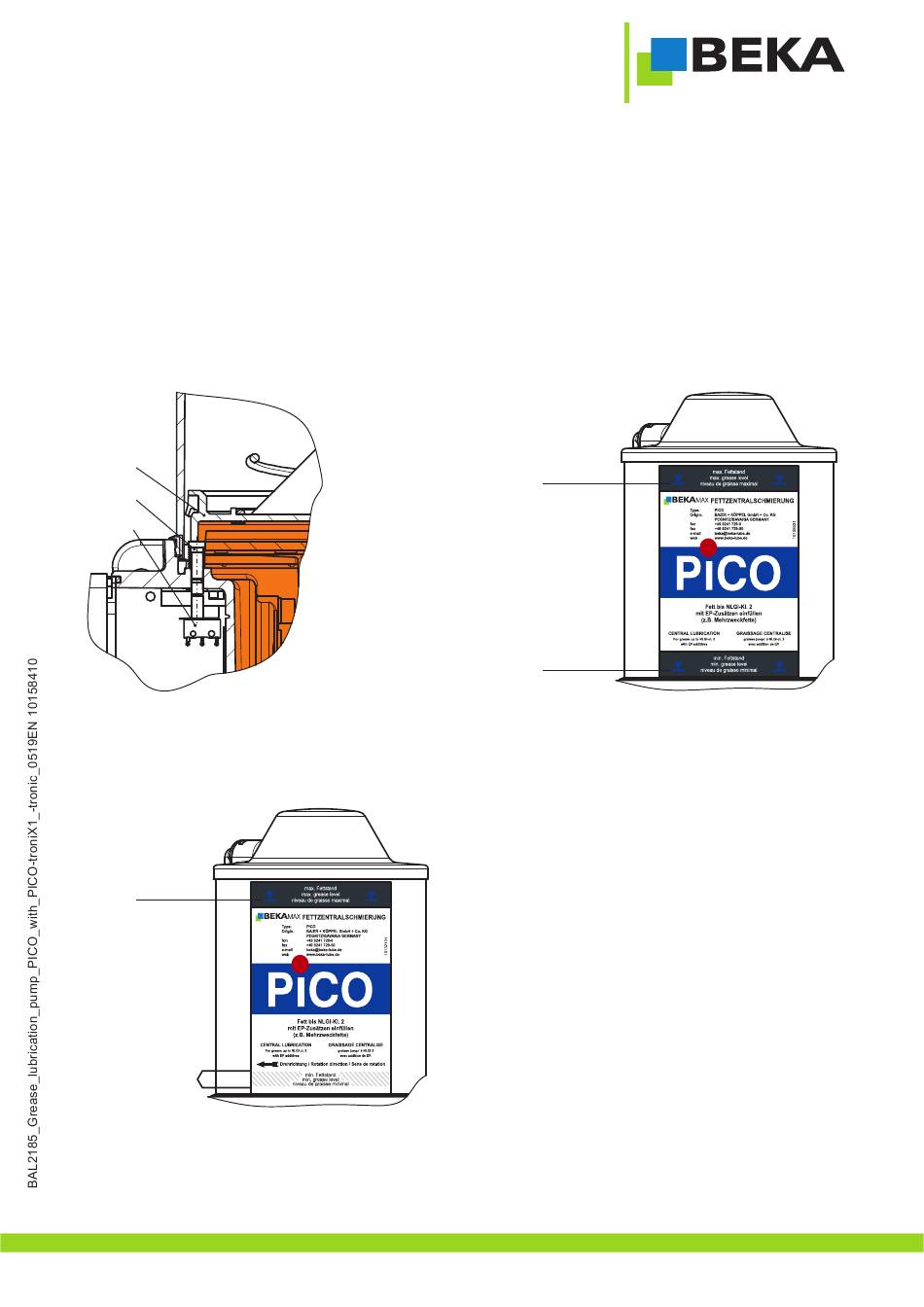

Fig. 32:
1
2
3

8.6.2 Level monitoring for devices with agitator blade

The installation of an electronic level monitoring is impossible for devices with agitator blade!
The level can only be visually checked at the level sticker (see fig. 34).
Fig. 34:
Level max.
Range min. level
