6.3 Assembly of the pump elements
Different pump elements can be installed into the device (see chapter 8.4 „Pump elements").

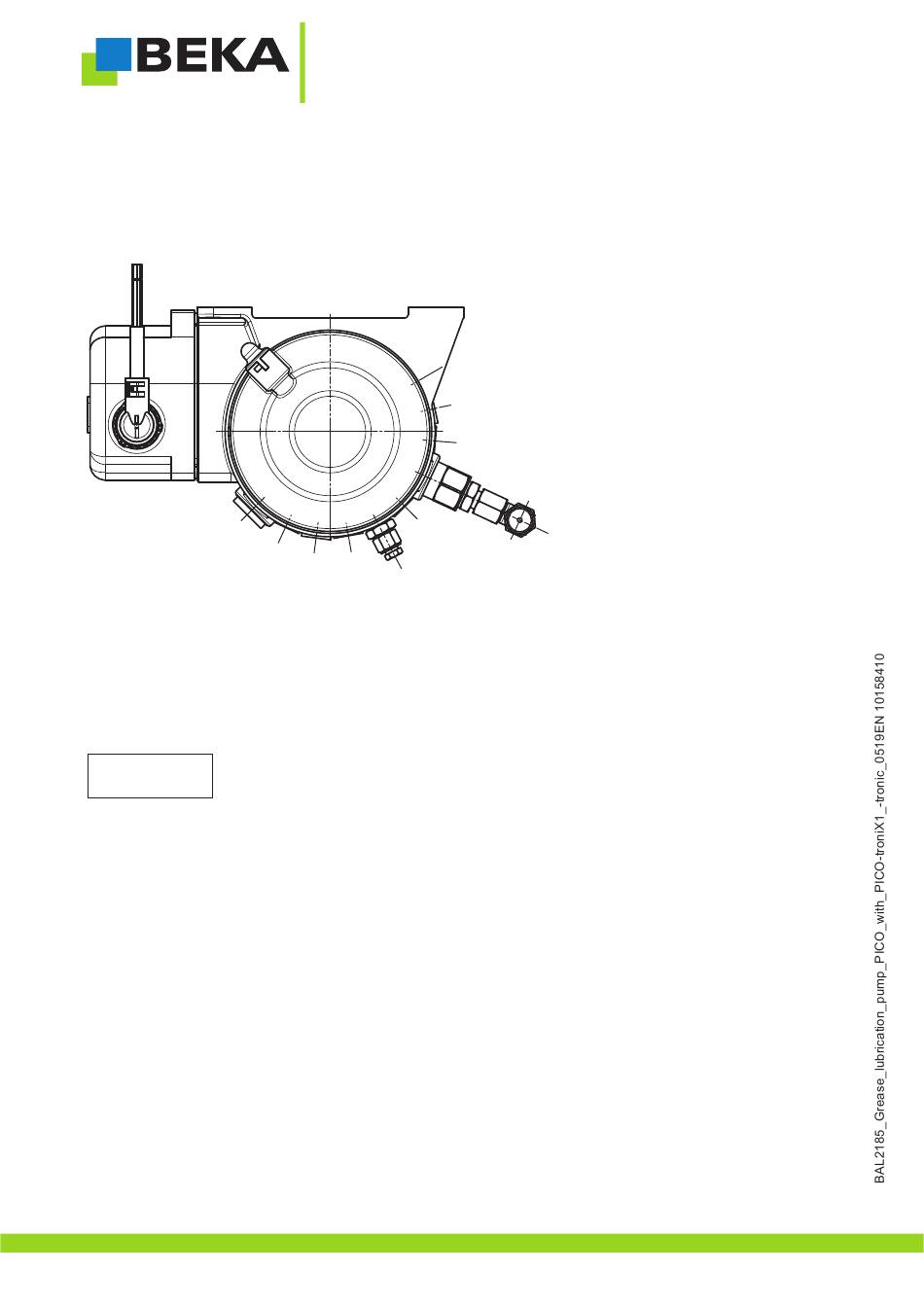

Fig. 4:
10
The pump elements PE-60 F, PE-120 F, PE-170 F and PE-120 FV can be screwed into the outlets 4 and 10 (see fig. 4).
The pump elements PE-5, PE-10, PE-15, PE-25 and PE-50 can be screwed into the outlets 1 to 3 and 5 to 9 (see fig. 4).
Remove the screw plug with an Allen key AF 10 (outlets 4 and 10, see fig. 4) or AF 6 (outlets 1 to 3 and 5 to 9, see fig. 4)
from the outlet into which you want to screw in the pump element.
Exchange the sealing of the pump element in order to avoid that damaged sealings are reused.
When the pump elements PE-5 to PE-50 are ordered separately, the sealing is not included in the
Notice!
scope of delivery and has to be ordered separately if needed (see chapter 8.4.5 „Code of the pump
elements for multi-line lubrication systems").
In the following, the disassembly and assembly of the pump elements is described at the example PE-120 F.
