- Page 1 Roving Edge Device Setup Guide February 13, 2025...
- Page 2 Contents Setting Up Oracle Roving Edge Device..............3 Receive and Inspect the Shipment........................3 Remove the Ruggedized Case End-Caps......................5 Mount the Device in a Rack..........................7 Cable the Device..............................10 Set Up Terminal Emulation..........................12 Unlock the Device.............................. 13 Configure Network Parameters.......................... 13 Download the Root CA Certificate........................15...
- Page 3 Setting Up Oracle Roving Edge Device Setting Up Oracle Roving Edge Device Set up the Roving Edge Device at your location, and configure the device to connect to your Oracle Cloud Infrastructure tenancy so that it serves as an extension of your tenancy.
- Page 4 Perform these steps to gather information you can use to inspect the shipment and ensure a tamper free device. 1. Sign in to your Oracle Cloud Infrastructure (OCI) tenancy. 2. From the console navigation menu, click Hybrid, then click Roving Edge Infrastructure.

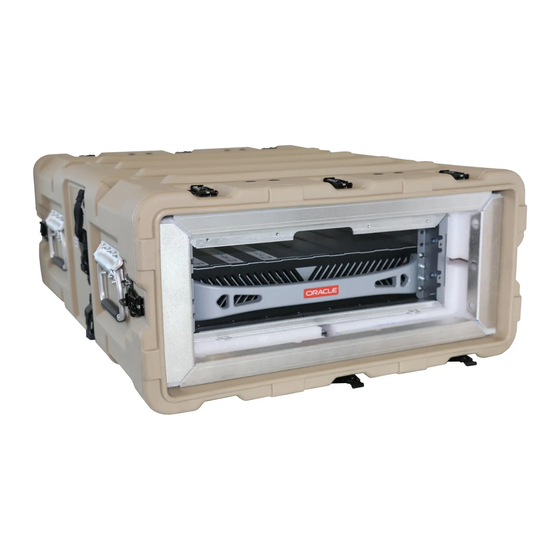

- Page 5 1. On the front and rear of the ruggedized case, find the 16 wing-turn latches. Note: The rear end-cap has casters. 2. Open all 16 wing-turn latches on the front and rear of the case by lifting the latch then turning the latch counterclockwise. Oracle Cloud Infrastructure Roving Edge Device Setup Guide...
- Page 6 Setting Up Oracle Roving Edge Device 3. Remove the front and rear end-caps. 4. Remove the cable pouch, and extend the end-cap hooks. Oracle Cloud Infrastructure Roving Edge Device Setup Guide...
- Page 7 Use these instructions if you plan to mount your Roving Edge Device in a standard rack. The optional rackmount kit can be used to install the device in a four-post, 19-inch standard rack. Rackmounting the Device 1. Separate the device mounting brackets from the slide-rails. Oracle Cloud Infrastructure Roving Edge Device Setup Guide...
- Page 8 4. If your rack posts aren't labeled, mark the mounting holes on the front and rear posts to ensure a level installation. 5. Attach the two slide-rails to the rack. Oracle Cloud Infrastructure Roving Edge Device Setup Guide...
- Page 9 Pull the green lever forward to enable the mounting brackets to slide fully into the slide-rails. d. Lift the slide-rail stop lever and push the device completely into the rack. 7. Install two M4 screws to the front of the device. Oracle Cloud Infrastructure Roving Edge Device Setup Guide...
- Page 10 Connect the provided USB-to-DB-9 Ethernet cable from the device DB-9 serial console port to a USB connector on your controlling host, such as a laptop. Roving Edge Device 2, GPU and Storage Shape Oracle Cloud Infrastructure Roving Edge Device Setup Guide...
- Page 11 Roving Edge Device 2, Compute Shape Roving Edge Device 1 2. Connect the provided power cord to the device power receptacle and to your power source, but don't power on the device yet. Oracle Cloud Infrastructure Roving Edge Device Setup Guide...
- Page 12 1. Based on your host OS, use the appropriate method to ensure that the pl2303 USB driver is installed. This USB driver is required for connectivity to the Roving Edge Device DB-9 serial port. The USB driver is preinstalled on Oracle Unbreakable Enterprise Kernel. The following command shows that the USB driver is present:...
- Page 13 For more network configuration information, see Managing the Network. The minimum network parameters that you need to configure are as follows: • Device IP address, subnet, and gateway. • • Oracle Cloud Infrastructure Roving Edge Device Setup Guide...
- Page 14 Help: Display online help for the Network Configuration menu options. • Go Back: Return to the main serial console menu. 2. Use the menu options to configure the device network parameters according to your network environment. At minimum, configure these parameters: Oracle Cloud Infrastructure Roving Edge Device Setup Guide...
- Page 15 User name • Password Oracle provides these items to your organization when Oracle provisions your device request. Ensure Your Host Has OpenSSL Installed Most Linux and MacOS computers have OpenSSL installed. For Microsoft Windows, you might need to install OpenSSL.
- Page 16 2. Click the padlock symbol that's to the left of the browser address bar. 3. In the Site Information dialog box, click Connection Secure, then click More information. The Firefox Security menu is displayed. Oracle Cloud Infrastructure Roving Edge Device Setup Guide...
- Page 17 5. In the Certificate Manager, click Trust this CA to identify websites, then click OK. 6. In the Certificate Manager, click OK. 7. Refresh the browser tab that's connected to the device. Oracle Cloud Infrastructure Roving Edge Device Setup Guide...
- Page 18 You're prompted to enter your user name and password. What's next? Go to the online Roving Edge Infrastructure documentation. Learn about ways to access the device. See Accessing a Roving Edge Infrastructure Device. Oracle Cloud Infrastructure Roving Edge Device Setup Guide...
- Page 19 If you removed the ruggedized case end-cap, use these instructions to reinstall it. 1. Route cable slack through the foam channels. 2. Replace the end-cap. 3. Secure the end-cap by latching eight wing-turn latches (turn clockwise, then close). Oracle Cloud Infrastructure Roving Edge Device Setup Guide...
- Page 20 Setting Up Oracle Roving Edge Device What's Next • Roving Edge Infrastructure documentation home page • Getting Started with Roving Edge Infrastructure Oracle Cloud Infrastructure Roving Edge Device Setup Guide...
