Note:
The following procedure presumes that the tapped hole size is #10-32.
If alternate tapped holes are used, the customer must supply the proper
screws.

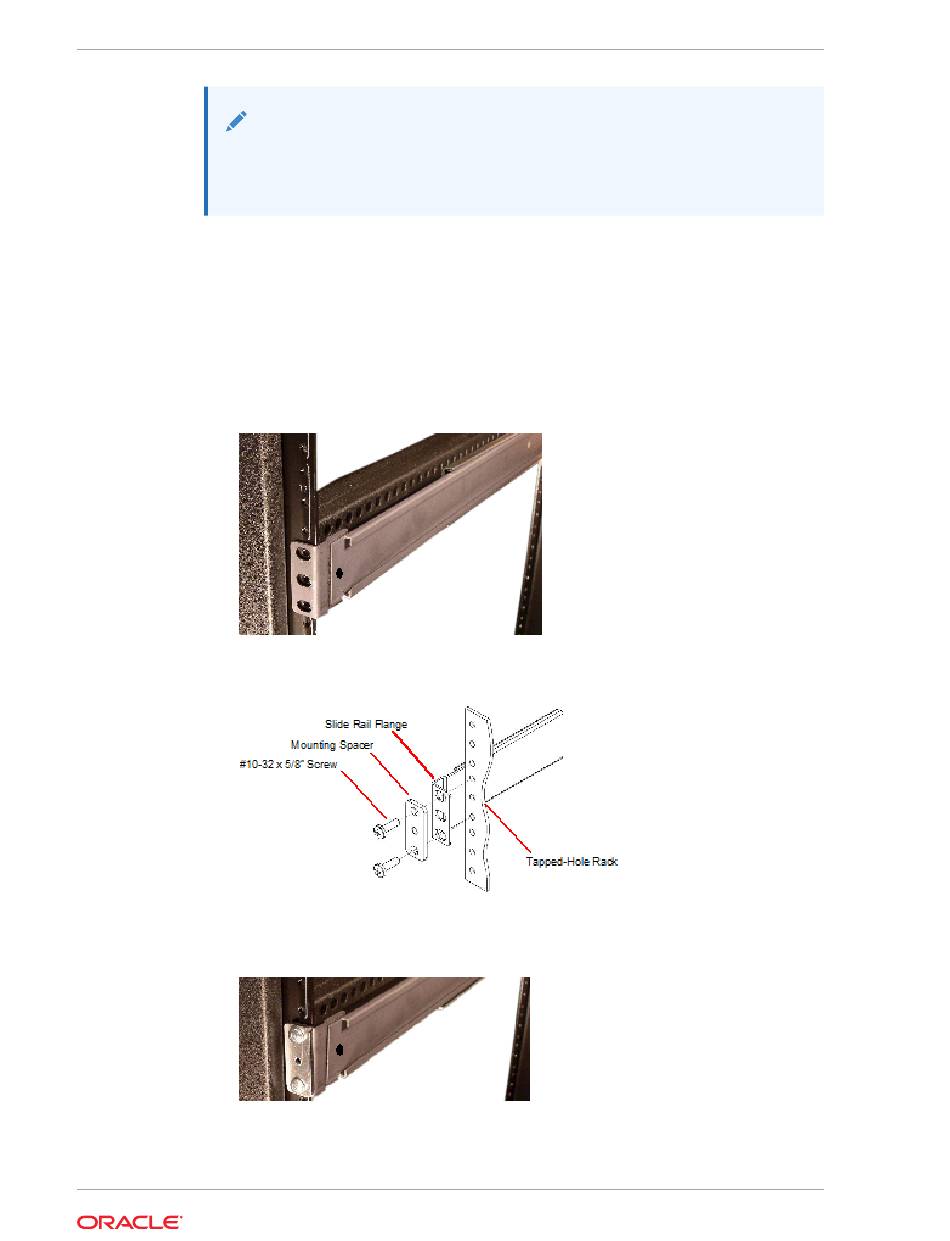

To install the slide rails to the front of a tapped-hole equipment rack:
Locate the following components:
1.
• Assembled equipment rack slide rails (2)
• #10-32 x 5/8" screws (8)
• Mounting spacers (2)
Line up the equipment rack slide rail with an appropriate mount point on the front
2.
of the equipment rack.
For both holes in the flange, place one #10-32 x 5/8" screw through the mounting
3.
spacer, then through the slide rail flange and into the tapped hole.
Using a #2 Phillips head screwdriver, tighten the screws to secure the slide rail to
4.
the equipment rack. Do not completely torque the screws; leave a small amount of
play at this time.
Expand and line up the equipment rack slide rail on the outside of the rear rack
5.
slide rail at the same height used for the front mount point.
