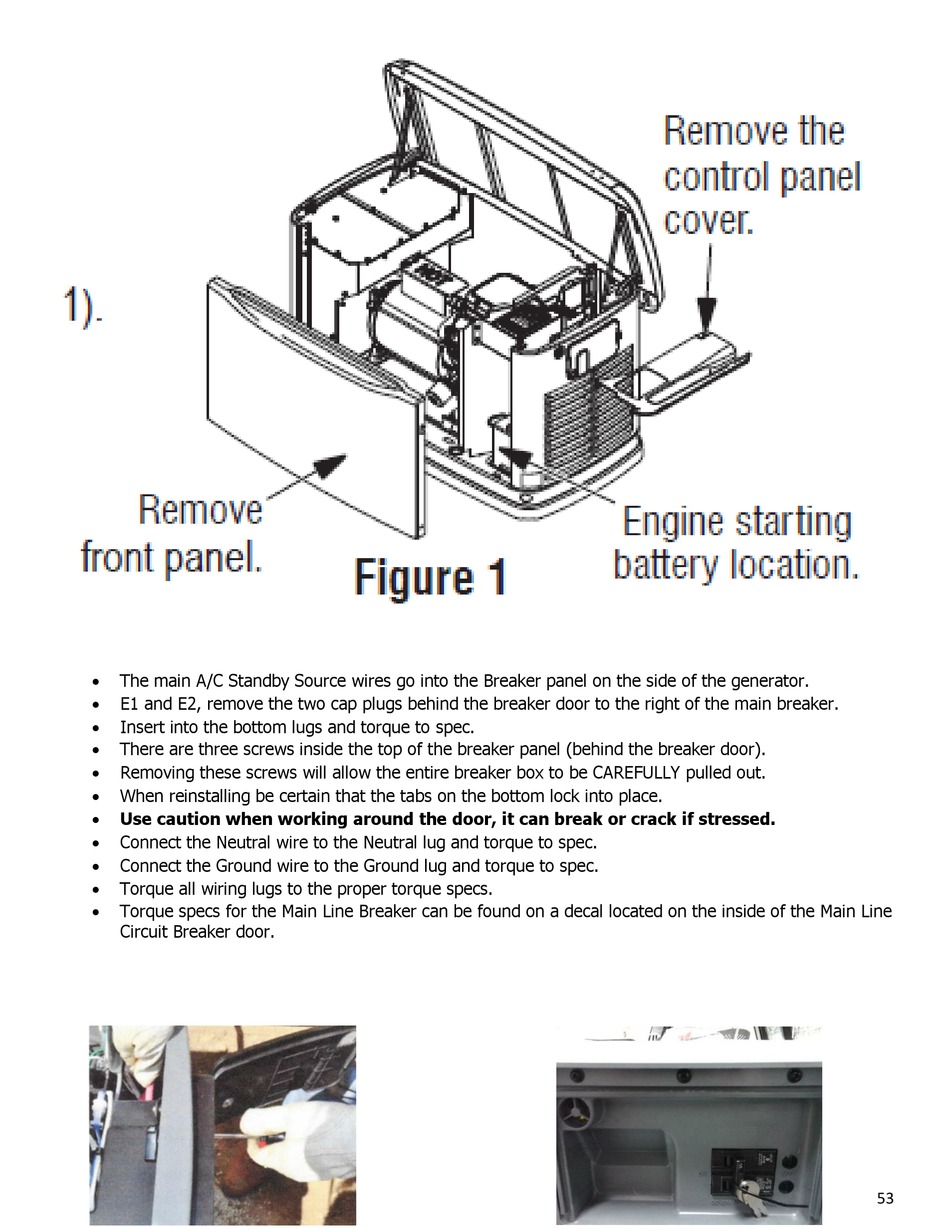

Generac Power Systems PowerPact 6561 Installation Notes page 53

 The main A/C Standby Source wires go into the Breaker panel on the side of the generator.
 E1 and E2, remove the two cap plugs behind the breaker door to the right of the main breaker.
 Insert into the bottom lugs and torque to spec.
 There are three screws inside the top of the breaker panel (behind the breaker door).

Removing these screws will allow the entire breaker box to be CAREFULLY pulled out.
 When reinstalling be certain that the tabs on the bottom lock into place.
 Use caution when working around the door, it can break or crack if stressed.
 Connect the Neutral wire to the Neutral lug and torque to spec.
 Connect the Ground wire to the Ground lug and torque to spec.
 Torque all wiring lugs to the proper torque specs.
 Torque specs for the Main Line Breaker can be found on a decal located on the inside of the Main Line
Circuit Breaker door.
