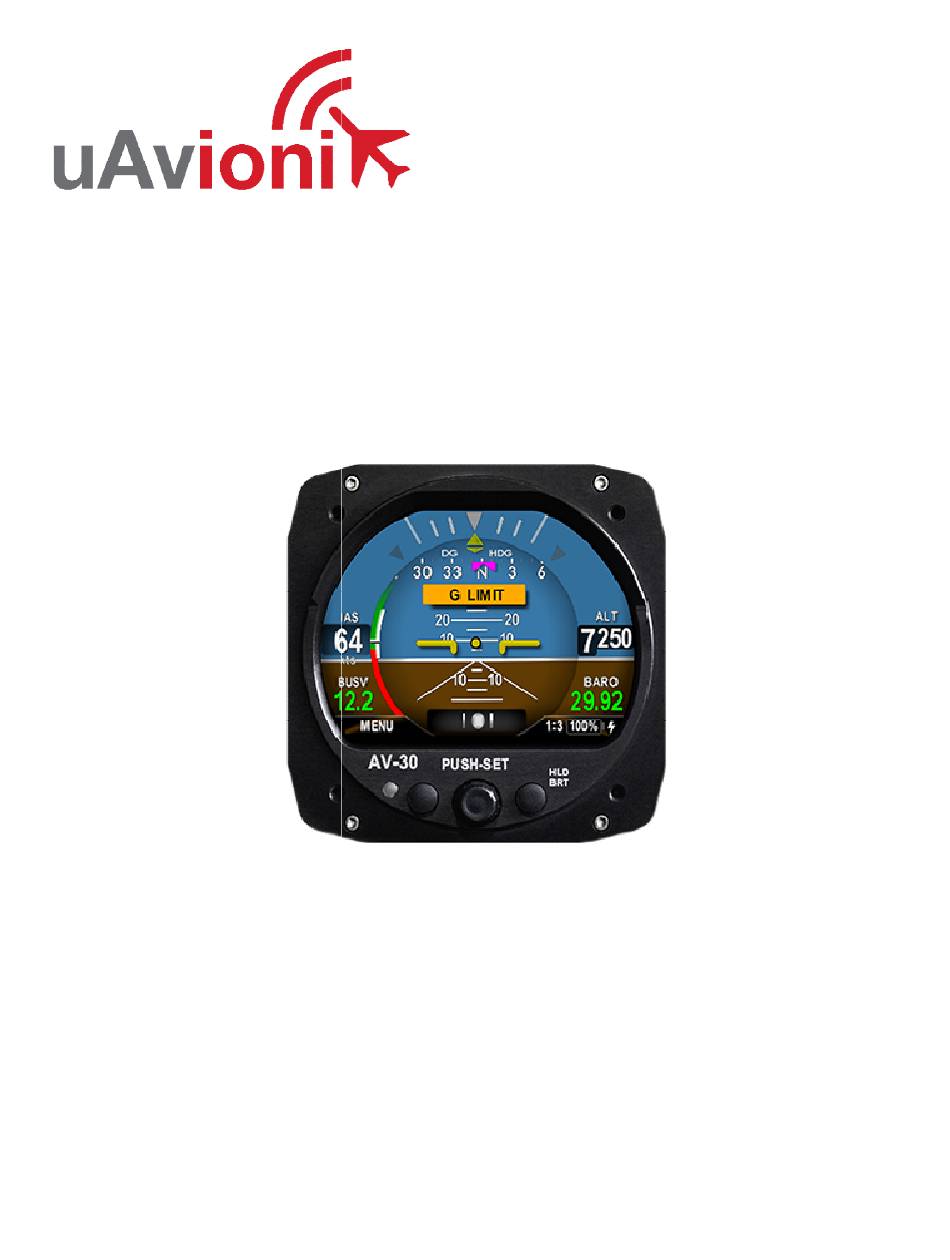

- Page 1 AV-30-E Service Bulletin Service Bulletin Software Upgrade to Upgrade to 1.1.0 AV-30-E Service Bulletin Software Upgrade 1.1.0 E Service Bulletin Software Upgrade 1.1.0 UAV-1005261-001 Rev A 1 Rev A...
- Page 2 retained.
-
Page 3: Revision History
1 Revision History Revision Date Comments 2/18/2021 Initial release AV-30-E Service Bulletin Software Upgrade 1.1.0 UAV-1005261-001 Rev A... -
Page 4: Warnings / Disclaimers
2 Warnings / Disclaimers uAvionix is not liable for damages arising from the use or misuse of this product. This equipment is classified by the United States Department of Commerce's Bureau of Industry and Security (BIS) as Export Control Classification Number (ECCN) 7A994. -
Page 5: Table Of Contents
Required Items ..................8 Update Notes ..................8 Update Procedure Methods ..............9 Prepare the AV-30-E for Direct Serial Update Procedure ....9 Perform the Update Procedure ........... 10 Alternate Update Method: AV-Link ........... 14 AV-Link Installation Materials and Tools ........14 Additional Required Equipment ........... -
Page 6: Planning Information
Table 4-1 Applicability To determine which version of software is installed either: Verify the software version as presented when the AV-30-E powers up. The software version is displayed while uAvionix logo is presented. The version appears under heading SOFTWARE VERSION. -
Page 7: Description
4. If the version displayed is 1.0.18 or earlier proceed with this service bulletin. 4.2 Description This Service Bulletin provides instructions for loading uAvionix AV-30-E UAV-1004035-001 with updated software release 1.1.0. 4.3 Time Required Up to 90 minutes is required to perform this update procedure. -
Page 8: Required Items
Hash AV-30-E AV-1004037-001-av30e-1_1_0-88741e8.bin Table 5-1 Software Update Files uAvionix software and update files are available for download from the uAvionix Support website at no charge, from: https://uavionix.com/av-30-e-service-bulletin-software-upgrade-to-1-1-0/ Please download the uAvionix Updater and latest software update prior to visiting the aircraft. An internet connection is required to download the necessary application and software. -
Page 9: Update Procedure Methods
If performing the update using the AV-Link, proceed to section 8. 7.1 Prepare the AV-30-E for Direct Serial Update Procedure 1. Add wires to pins 8 and 15 of the AV-30 harness if not already connected. Add an additional ground wire to either existing the ground from the AV-30 harness or ground the new wire directly to aircraft ground. -
Page 10: Perform The Update Procedure
3. On the AV Updater tool select the appropriate COM Port from the dropdown menu and click “Connect”. *The AV-30-E screen will go dark at this time but note that the device is still powered on. This behavior is normal. Do not remove power from the AV- 30 during this process. - Page 11 AV Updater Tool. 5. Once proper connection has been made, select the firmware file to upload to the AV-30-E by clicking “Open File” and selecting the previously downloaded firmware file: UAV-1004037-001-av30e-1_1_0-88741e8 AV-30-E Service Bulletin Software Upgrade 1.1.0...
- Page 12 6. Select “Write Firmware” to begin the upload. *DO NOT POWER OFF THE AV-30 OR CLOSE THE UPDATER TOOL UNTIL UPDATE IS COMPLETE. *SCREEN OF THE AV-30 WILL GO BLACK WHILE THE DEVICE REBOOTS, THIS BEHAVIOR IS NORMAL. AV-30-E Service Bulletin Software Upgrade 1.1.0...
- Page 13 7. When the AV Update Tool displays “100%” and the lower status reads “Update Complete” the process is complete. AV-30-E Service Bulletin Software Upgrade 1.1.0 UAV-1005261-001 Rev A...
-
Page 14: Alternate Update Method: Av-Link
11. Following completion of reinstallation perform the Hard Calibration as described in section 10. 8 Alternate Update Method: AV-Link The AV-Link is a wireless bridge that extends the functionality of the AV-30. AV-Link includes wireless update functionality. 8.1 AV-Link Installation Materials and Tools If the AV-Link is not installed in the aircraft perform the remainder of Section 8. -
Page 15: Additional Required Equipment
Jack Screws as they will stop against the screw bosses on the AV the Jack Screws as they will stop against the screw bosses on the AV-30 the Jack Screws as they will stop against the screw bosses on the AV AV-30-E Service Bulletin Software Upgrade 1.1.0... - Page 16 Jack Screws to pull the AV-Link into the AV- connector. AV-Link should seat firmly into the AV Link should seat firmly into the AV-30 as shown in the image 30 as shown in the image on the right below.
-
Page 17: Reinstall Av-30 In Instrument Panel (If Removed)
8.3.4 Reinstall AV-30 in in Instrument Panel (If Removed) If the AV-30 was removed from the aircraft instrument panel, reinstall the 30 was removed from the aircraft instrument panel, reinstall the 30 was removed from the aircraft instrument panel, reinstall the unit. -
Page 18: System Update
9 System Update After the AV-Link and AV-30 have been installed, a firmware update will be required to enable the AV-Link features of the AV-30. Download the latest firmware and save it on the PC. 1. Power on the AV-30 and AV- Link. - Page 19 3. In a Web Browser navigate to the AV-Link home page via the following URL: 192.168.4.1 4. At the bottom of the page select AV Firmware Update AV-30-E Service Bulletin Software Upgrade 1.1.0 UAV-1005261-001 Rev A...
- Page 20 The AV-30 will power back on when complete and the AV- Link home page will be displayed. Note: File name will be different. AV-30-E Service Bulletin Software Upgrade 1.1.0 UAV-1005261-001 Rev A...
-
Page 21: Post-Accomplishment Verification
Hard Calibration must be completed after AV-30 is installed and before any flight operations. 1. With the AV-30 in the AI mode enter the “SETUP” page by pressing the left button 2 times. The aircraft must be on the ground with no movement. - Page 22 6. “Calibration in progress” will be displayed with a % complete. 7. AV-30 will indicate “Calibration successfully completed Press DONE” Press the left button under “DONE” and the calibration will be complete. If an error is shown, repeat the calibration process.
- Page 23 If any post-accomplishment check fails, please contact uAvionix support, as directed in Section 12. The pilot should review the updated Approved Flight Manual Supplement prior to flight. 11 System Checkout Perform the System Checkout procedure as described in “AV-30-E Installation Manual” UAV-1004234-001 Section 9.6 prior to returning to service.
- Page 24 When post-accomplishment verification and system checkout is completed, make appropriate entries in the Aircraft Maintenance Log Book. Maintenance Record Service Bulletin UAV-1005261-001 for AV-30-E UAV-1004035-001, has been complied with. A copy of this form must be submitted by visiting: https://uavionix.com/logbook/...
