uAvionix AV-30-E Quick Reference Card

1
INSTAL MENU
UNIT FUNCTION
FUNCTION LOCK
PITCH TRIM
ROLL TRIM
SLIP TRIM
OAT TRIM
SPD ASST
IAS TRIM LO
IAS TRIM HI
ALT TRIM LO
ALT TRIM HI
PITOT ZERO
AOA FUNC
IAS UNITS
TAS UNITS
IAS VSpeed Limits:
VS0, VS1, VFE, VNO,
VNE, VMC, VYSE
BARO UNITS
TEMP UNITS
GPS NAV SRC
SERIAL 1
SET BARO Rotate/Push 1x
SERIAL 2
SERIAL 3
SERIAL 4
STATE SYNC
AID MODE
AVMAG INSTL
AVMAG CAL
AUTOPILOT
AVMAG YAW
- A Given Entry Will Not Be Available If Not Configured For Display
MAG MONITOR
VIBE MONITOR
GYRO CAL
INT MAG CAL
AV-APA CFG
AV-APA THRU
2
DEMO MODE
RESET AVLINK
BEACONX GTM
SW PART NUMBERS
SW VERSIONS
SW CHECKSUM
SW CERT
1 To access the installation menu, push-
and-hold the rotary knob button while
applying power.
2
While in Demo Mode, hold both left
and right buttons to reset unit to
.
factory defaults
Push left button 3x
INSTALL
ROT TO SEL
FOR REFERENCE ONLY
AV-30 Quick Reference Card
Rotate to trim
⚫ ⚫
DG ADJ 3 Push 2x Rotate to trim Push to set
⚫ ⚫
HDG BUG Push 3x Rotate to trim Push to set
⚫ ⚫
Hold button down to align with current heading
SET ALT Push 4x Rotate to desired alt Push to set
⚫ ⚫
SET VS 4 Push 5x Rotate to desired VS Push to set
⚫ ⚫
4
Push 6x Rotate to desired Mode
⚫
- Push and Hold to Toggle AI/DG/MFD Mode (if not locked)
3 With AV-Mag, DG ADJ is last available Push to set option
4 Only available when autopilot configured

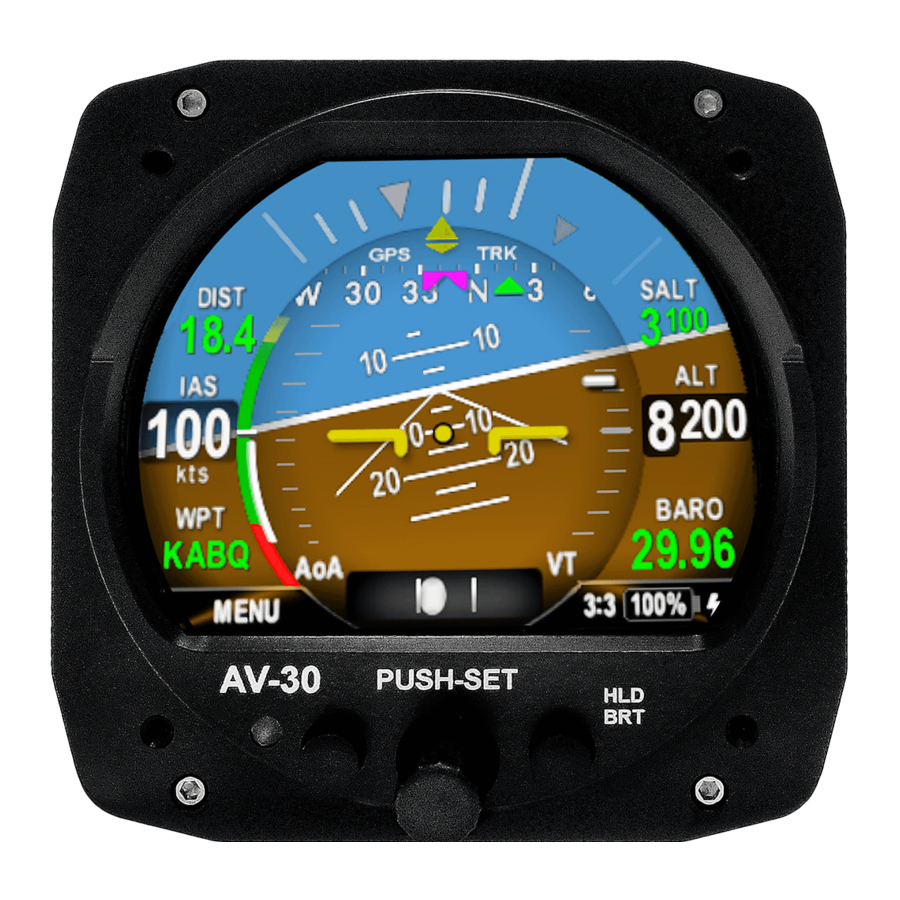

AI Normal Display State
Battery
State
Push to set
Select Current Page
Three Customizable Pages 1:3, 2:3, 3:3, AI
AI - Decluttered Attitude Indicator/Transponder Control
Push RIGHT button to change page
Push to set
Hold RIGHT button for brightness setting
⚫
SETUP MENU
UI Style
UI Font
Alert Volume
AoA Alert Enable
AoA Alert Thresholds 5
G Alert Enable
G Alert Thresholds
Roll Alert Enable
Roll Alert Thresholds
GPS Track Stabilization
HOURS
5 AoA limits will be grayed out
unless rotary knob is pushed
while applying power. See 1
Push left button 2x
SETUP
ROT TO SEL
EDIT FIELDS MENU Basic Data
▪
Highlighted In Black. Blank
7 editable fields per page, ▪
DG Heading
20 possible values 6
▪
IAS
▪
Altitude
▪
Baro Set
▪
AoA
▪
Vertical Speed
▪
G Load
▪
Bus Volts
▪
Set Altitude
If Temp Probe
▪
OAT
▪
TAS
▪
DALT
If GPS Connected
▪
Waypoint ID
▪
Distance To
▪
Ground Speed
▪
Track
▪
XTE
▪
DTRK
▪
Bearing To
If Autopilot Connected
▪
Set Vertical Speed Bug
Push left button 1x
(overlaid on Vertical
EDIT FIELDS
Speed)
SEL FIELD
If BeaconX connected
▪
Squawk
If AV-Link+Sentry connected
▪
CO – Carbon Monoxide
6
Not all values can be placed in
every field (IAS, Altitude and Baro
Setting only allowed in certain
fields). Some values are
implemented with graphical
indicators, other with textual
UAV-1005760-001 Rev D
fields.
