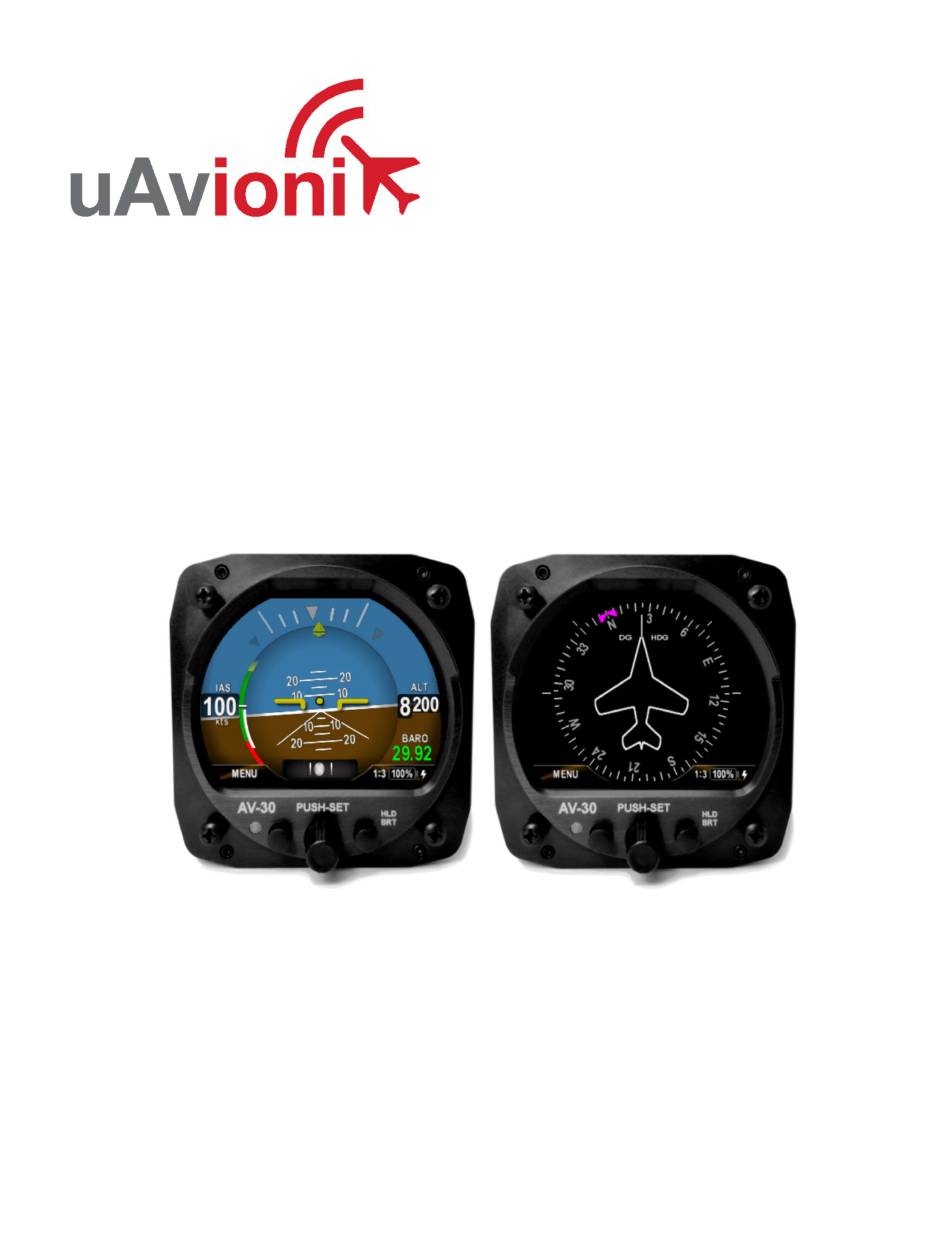

AV-30-C
Instructions for Continued
Airworthiness
UAV-1004045-001 AV-30-C ICA
1
Revision A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-30-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for uAvionix AV-30-C

  • Page 1 AV-30-C Instructions for Continued Airworthiness UAV-1004045-001 AV-30-C ICA Revision A...
  • Page 2 retained.
  • Page 3: Revision History

    1 Revision History Revision Date Comments 4/24/2020 Initial release UAV-1004045-001 AV-30-C ICA Revision A...
  • Page 4: Warnings / Disclaimers

    2 Warnings / Disclaimers All device operational procedures must be learned on the ground. uAvionix is not liable for damages arising from the use or misuse of this product. This equipment is classified by the United States Department of Commerce's Bureau of Industry and Security (BIS) as Export Control Classification Number (ECCN) 7A994.
  • Page 5: Limited Warranty

    3 Limited Warranty uAvionix products are warranted to be free from defects in material and workmanship for two years from the installation of the AV-30-C on the aircraft. For the duration of the warranty period, uAvionix, at its sole option, will repair or replace any product which fails in normal use. Such...
  • Page 6: Table Of Contents

    Applicable Install Menu Settings ..........17 7.9.5 Altimeter Trimming ..............17 7.10 Battery Test and Replacement Procedure ........18 7.10.1 Manual Load Test ..............18 7.10.2 Battery Replacement ............. 19 Post-Installation Test Procedures ............21 UAV-1004045-001 AV-30-C ICA Revision A...
  • Page 7 Troubleshooting ................. 21 10 Return to Service Procedure.............. 21 11 Maintenance Records ................ 21 12 Support ....................21 13 Appendix A – Installation Record ............22 UAV-1004045-001 AV-30-C ICA Revision A...
  • Page 8: Introduction

    5 Introduction This document provides Instructions for Continued Airworthiness (ICA) and Maintenance Manual (MM) for the AV-30-C. This document satisfies the requirements for continued airworthiness as defined by 14 CFR 23.1529. Information in this document is required to maintain the continued airworthiness of the AV-30-C.
  • Page 9: System Description

    6 System Description The AeroVonics AV-30-C is a fully digital multi-mode instrument that mounts in the legacy 3 1/8” round instrument panel. It can be field configured as either an Attitude Indicator (AI) or a Directional Gyro (DG) indicator. It is fully self-contained with dual-precision inertial and pressure sensors and allows for a wide variety of pilot customization.
  • Page 10: System Functions

    - GPS Navigator Route Line - Heading Bug Audio and Visual Alerting Functions: - AoA Alerting - G Limit Alerting - Excessive Roll Alerting Misc. Functions: - Internal Battery Operation - Auto / Manual Brightness UAV-1004045-001 AV-30-C ICA Revision A...
  • Page 11: System Interconnects

    6.2 System Interconnects The following section describes each of the AV-30-C system interconnects. Interfaces indicated as optional are not required in any specific installation but will limit availability of some supplemental data display if not connected. AV-30-C AV-20 AIRCRAFT STATIC...
  • Page 12: Instructions For Continued Airworthiness

    Utilize Section 7.10 - Battery Test and Replacement Procedure of this document to test and replace the battery when required. The Altitude Trim procedure only applies when the AV-30-C is configured as an Attitude Indicator. When configured as a Directional Gyro, altitude is not displayable and therefore trimming is not applicable.
  • Page 13: Test And Inspection Schedules

    The following tools are needed to perform maintenance tasks.  Ground power source (capable of supplying sufficient power to the aircraft systems and avionics)  Air Data Test Set  Timer or stop-watch for battery capacity test UAV-1004045-001 AV-30-C ICA Revision A...
  • Page 14: Visual Inspection Procedure

    Do not clean with alcohol-based solvents.  Caution—Be sure to remove all pitot pressure and static air connections to every instrument before purging the system tubing. UAV-1004045-001 AV-30-C ICA Revision A...
  • Page 15: Altimeter Test And Calibration Procedure

    User interface control and operation required to enter and navigate the maintenance mode is provided here. For a full description of the user interface, refer to document AV-30-C, Pilots Guide. 7.9.1 Display Mode and Baro Setting For these purposes, the user interface must be configured to show altitude.
  • Page 16: Install Menu Activation

    Keep the knob pressed until the startup logo is shown. The Install Menu will now be enabled for access. 7.9.3 Accessing Install Menu To access the Install menu, press the Menu button until the INSTALL menu is shown: UAV-1004045-001 AV-30-C ICA Revision A...
  • Page 17: Applicable Install Menu Settings

    Parameter settings that are not associated with ongoing maintenance (operational modes, port settings, etc.) must not be modified and maintained in accordance with the setting definitions within AV-30-C Installation Manual. 7.9.5 Altimeter Trimming Connect the pitot static test set and follow applicable calibration procedures in accordance with 4 CFR Part 91.411.
  • Page 18: Battery Test And Replacement Procedure

    7.10 Battery Test and Replacement Procedure 7.10.1 Manual Load Test The following procedure is utilized to ensure the AV-30-C internal battery meets minimum capacity for emergency operation. A timer or stopwatch is required for this test procedure. This test is to be performed in standard ambient conditions ranging from 40°F to...
  • Page 19: Battery Replacement

    Ensure unit power is removed and unit is not operating under battery power for this procedure. Details steps as follows: 1. Remove the two battery cover hold-down screws. Battery Cover Hold-Down Screws UAV-1004045-001 AV-30-C ICA Revision A...
  • Page 20 7. Replace the two battery cover hold-down screws and tighten firmly. 8. Dispose of the old battery pack in accordance with local regulatory requirements regarding Lipo battery disposal or recycling. UAV-1004045-001 AV-30-C ICA Revision A...
  • Page 21: Post-Installation Test Procedures

    8 Post-Installation Test Procedures Refer to AV-30-C Installation Manual for Post-Installation Checks to be performed after removal and re-installation. 9 Troubleshooting Refer to AV-30-C Installation Manual for trouble shooting procedures. 10 Return to Service Procedure After removing and re-installing or replacing the AV-30-C, perform the setup and configuration procedures in the AV-30-C Installation Manual.
  • Page 22 13 Appendix A – Installation Record A copy of this appendix should be used to record installation information and should be kept in the aircraft permanent records. NOTE: A copy of this form must be sent to maintenance@uavionix.com. AV-30-C Installation and Configuration Log Date:...
