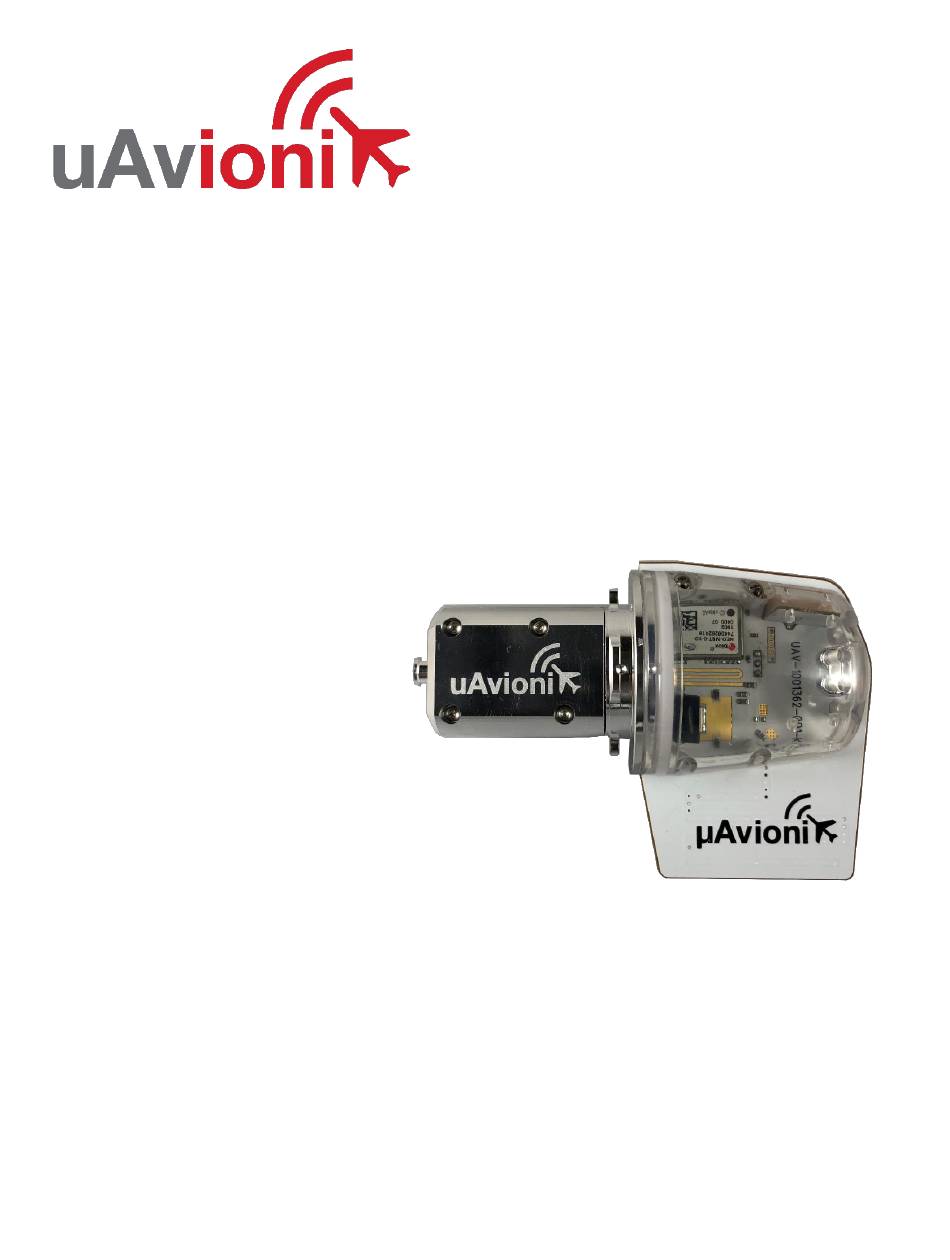

TM
tailBeacon
TSO
User and Installation Guide
UAV-1002185-001
1
Rev D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the tailBeacon TSO and is the answer not in the manual?

Questions and answers

Related Manuals for uAvionix tailBeacon TSO

Summary of Contents for uAvionix tailBeacon TSO

  • Page 1 tailBeacon User and Installation Guide UAV-1002185-001 Rev D...
  • Page 2 retained.

  • Page 3: Revision History

    1 Revision History Revision Date Comments 7/3/2019 Initial release 8/28/2019 Update annual checks to include ADS-B version, and update TCAS limitation. Note installation kit. 12/2/2019 Updated installation kit instructions. Add rotorcraft specific language. 4/13/2020 Update ADS-B version check language and correct error in TSO-C88b deviation table.

  • Page 4: Warnings / Disclaimers

    2 Warnings / Disclaimers All device operational procedures must be learned on the ground. uAvionix is not liable for damages arising from the use or misuse of this product. This equipment is classified by the United States Department of Commerce's Bureau of Industry and Security (BIS) as Export Control Classification Number (ECCN) 7A994.

  • Page 5: Limited Warranty

    For the duration of the warranty period, uAvionix, at its sole option, will repair or replace any product which fails in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost.

  • Page 6: Table Of Contents

    4 Table of Contents Revision History ..................3 Warnings / Disclaimers ................4 Limited Warranty ..................5 Table of Contents ................... 6 TSO and System Information ..............8 Certification ..................8 TSO Authorization ................9 Applicable P/Ns ................9 System Functions ................9 TSO Deviations and Incomplete ...........
  • Page 7 System Interfaces..............18 Installation .................... 19 Unpacking and Inspecting............. 19 Wiring .................... 19 Part Numbers ................19 7.3.1 tailBeacon TSO Installation Kit UAV-1003202-001 for #4-40 screw mounting ..................20 7.3.2 tailBeacon TSO Installation Kit UAV-1003202-002 for #6-32 screw mounting ..................21 7.3.3 tailBeacon TSO Installation Kit UAV-1003202-003 for Ercoupe style mounting ..................

  • Page 8: Tso And System Information

    5 TSO and System Information 5.1 Certification This installation manual provides mechanical and electrical information necessary to install tailBeacon. It is not equivalent to an approved airframe- specific maintenance manual, installation design drawing, or installation data package. The content of this manual assumes use by competent and qualified personnel using standard maintenance procedures in accordance with Title 14 of the Code of Federal Regulation and other related accepted procedures.

  • Page 9: Tso Authorization

    5.2 TSO Authorization Function TSO/RTCA/SAE Class/Type Airborne Navigation Sensor TSO-C145e Beta 1 Using the Global Positioning INCOMP System (GPS) Augmented by the RTCA/DO-229E Satellite Based Augmentation System (SBAS) Universal Access Transmitter TSO-C154c (UAT) Automatic Dependent RTCA/DO-260B Surveillance-Broadcast (ADS-B) Equipment Operating on Frequency of 978MHz Position Light (White) TSO-C30c...

  • Page 10: Tso Deviations And Incomplete

    TSO-C145e Paragraph 3.g to use RTCA/DO-160G in place of RTCA/DO-160E. C145e uAvionix was granted a deviation from RTCA/DO-229E section 2.1.1.10 to use a GPS antenna that meets uAvionix minimum performance specifications instead of DO-301 qualified antennas. C30c uAvionix was granted a deviation from TSO-C30c Paragraph a.(2), TSO-C30c Paragraph c.(1).(viii), and SAE/AS8037...

  • Page 11: Fcc Id

    TSO-C145e Class Beta 1 functionality is incomplete. tailBeacon does not implement LNAV approach mode, instead operating in En Route/Terminal mode only, as appropriate for ADS-B Out applications. 5.6 FCC ID Model FCC ID tailBeacon 2AFFTUAT016R Contains 2AHMR-ESP12S 5.7 Device Marking UAV-1002185-001 Rev D...

  • Page 12: Environmental Qualification Form

    5.8 Environmental Qualification Form DO-160G Conditions Description of Conducted Tests Section Temperature and Altitude Equipment tested to Category B2 Low temperature ground 4.5.1 -55°C survival Low Temperature Short-Time 4.5.1 -45°C Operating Low Temperature Operating 4.5.2 -45°C High Temperature Operating 4.5.4 +70°C High Temperature Short-Time 4.5.3...

  • Page 13: Continued Airworthiness

    5.9 Continued Airworthiness Maintenance of the tailBeacon is "on condition" only. For regulatory periodic functional checks, refer to the approved aircraft maintenance manuals or manual supplements. The aircraft must be returned to service in a means acceptable to the appropriate aviation authority. The rear position light is designed with 2 white LEDs.

  • Page 14: System Specifications

    6.3 Power Line Transponder Monitor tailBeacon utilizes uAvionix’s Power Transcoder to ensure proper synchronization of data elements between Secondary Surveillance Radar (SSR) replies and ADS-B transmissions. These elements include Mode A squawk and IDENT status.

  • Page 15: Anonymous Mode

    6.4 Anonymous Mode In anonymous mode, tailBeacon transmits a randomized temporary address instead of the aircraft’s assigned ICAO address code, and a non- identifying Call Sign. The temporary address and Call Sign are disabled if the operator selects a non-1200 squawk code on the transponder. When enabled, the operator will not be eligible to receive ATC services.

  • Page 16: Tailbeacon Specifications

    6.7 tailBeacon Specifications 6.7.1 Physical Specifications Characteristics Specifications Width 1.71 in (44mm) Height 2.63 in (67 mm) Depth 3.82 in (97 mm) Weight 3.0 oz (85 g) Operating Temperature Range -45°C to +70°C Maximum Pressure Altitude [1] 18,000 ft Input Voltage Range 9 to 33 VDC 14V Current 0.5A Max...

  • Page 17: Gps/Sbas Specifications

    6.7.2 GPS/SBAS Specifications Characteristics Specifications Number of Channels 15 (12 GPS and 3 GPS/SBAS) Frequency 1575.42 MHz L1, C/A code Sensitivity Tracking -166dBm Reacquisition -160dBm Cold Start -148dBm Hot Start -160dBm Horizontal position accuracy 6 m RMS with SBAS Velocity accuracy 0.05 m/s Heading accuracy 0.3 degrees...

  • Page 18: System Interfaces

    6.7.5 System Interfaces Aircraft Power (14/28V) Transponder Position Light Wi-Fi Breaker iOS/ Android Device BLACK Aircraft Ground WARNING: Do not connect the power wire to a Xenon strobe power pack. This can damage the light and voids the warranty. UAV-1002185-001 Rev D...

  • Page 19: Installation

    7.8m Changes to the existing position light circuit breaker rating are not required. 7.3 Part Numbers Item tailBeacon UAV-1002183-( ) tailBeacon TSO Installation Kits: Item Installation Kit for #4-40 screw mounting UAV-1003202-001 Installation Kit for #6-32 screw mounting UAV-1003202-002 Installation Kit for Ercoupe style mounting...

  • Page 20: Tailbeacon Tso Installation Kit Uav-1003202-001 For #4-40 Screw Mounting

    7.3.1 tailBeacon TSO Installation Kit UAV-1003202-001 for #4-40 screw mounting Item tailBeacon Mounting Plate, #4 UAV-1001383-001 tailBeacon Mounting Gasket UAV-1001756-001 M2 x 5mm Cap Head Screw (2) UAV-1002820-001 #4 1” Screw (2) UAV-1002184-001 Hex L Wrench, 1.5mm UAV-1002817-001 Wire Splice (2)

  • Page 21: Tailbeacon Tso Installation Kit Uav-1003202-002 For #6-32 Screw Mounting

    7.3.2 tailBeacon TSO Installation Kit UAV-1003202-002 for #6-32 screw mounting Item tailBeacon Mounting Plate, #6 UAV-1001383-002 tailBeacon Mounting Gasket UAV-1001756-001 M2 x 5mm Cap Head Screw (2) UAV-1002820-001 #6 1” Screw (2) UAV-1003563-001 Hex L Wrench, 1.5mm UAV-1002817-001 Wire Splice (2)

  • Page 22: Tailbeacon Tso Installation Kit Uav-1003202-003 For Ercoupe Style Mounting

    7.3.3 tailBeacon TSO Installation Kit UAV-1003202-003 for Ercoupe style mounting Item tailBeacon Mounting Plate, #4 UAV-1001383-001 tailBeacon Mounting Gasket UAV-1001756-001 M2 x 5mm Cap Head Screw (2) UAV-1002820-001 #4 0.625” Screw (2) UAV-1002184-003 Hex L Wrench, 1.5mm UAV-1002817-001 Wire Splice (2) UAV-1001487-001 6-32 x 0.5in, SHCS, Stainless...

  • Page 23: Mounting

    7.4 Mounting tailBeacon is a rear, aft position light. Ensure that when mounted, the fin and top of the assembly are free from obstructions. tailBeacon requires a clear view of the sky for optimal GPS performance. It may not be suitable for installation on aircraft where aircraft elevators or other structures would block visibility to the sky.
  • Page 24 7.4.1.2 Mounting Plate Installation The default installation utilizes #4-40 hardware however there are some installations that require #6 mounting hardware. Be sure to use the correct Installation Kit for your aircraft. Refer to Section 7.3 for more details. The Mounting Plate can be installed with the screws either vertical or horizontal as shown below.
  • Page 25 1. Remove the existing aft position light. 2. Detach the power wire(s) and protect them from damage 3. Ensure the thru-hole in the tail cone is at least 29mm in diameter and allows straight passage of the tailBeacon main body. 4.

  • Page 26: Adapter Mounting

    7.4.2 Adapter Mounting In addition to the direct mounting plate UAV-1001383-001, an adaptive mounting plate is required for fitment on some tail cone installations such as used on Ercoupes. The Ercoupe adapter serves as an interface between the aircraft structure and the tailBeacon direct mounting plate. Figure 2: Generic representation of adapter style mounting.
  • Page 27 add/replace thread locking compound on the screws, we recommend using ® Vibra-Tite VC-3. 1. Remove the existing aft position light and mount. 2. Detach the power wire(s) and protect them from damage. 3. Ensure the thru-hole in the tail cone is at least 29mm in diameter and allows straight passage of the tailBeacon main body with adapter in place.

  • Page 28: Unit Installation

    NOTE: Installation of the tailBeacon must be in accordance with AC 43.13-2B, Chapter 1. 7.4.3 Unit Installation The tailBeacon unit must be electrically connected, then installed into the Mounting Plate by aligning the mounting tabs on the tailBeacon with the cut-outs in the Mounting Plate.
  • Page 29 3. tailBeacon may be grounded to the aircraft structure via the mounting screws. However, it is recommended to connect the black wire to the battery ground. NOTE: THE UNIT SHOULD NOT REQUIRE MUCH FORCE TO ROTATE; IF YOU FEEL RESISTANCE WHEN ATTEMPTING TO ROTATE, STOP AND CONTACT SUPPORT.

  • Page 30: Maintenance

    10 System Configuration Download the “uAvionix skyBeacon Installer” app from the iOS App Store or Google Play Store. Note: DO NOT use the “uAvionix Ping Installer” or “uAvionix Echo Installer” apps. The app will guide you through the configuration process.

  • Page 31: Connect To Tailbeacon Wi-Fi

    10.1 Connect to tailBeacon Wi-Fi Launch the “skyBeacon Installer” app and follow instructions to connect to the tailBeacon for configuration. The SSID of the tailBeacon is in the form Beacon-xxxx, for example Beacon-7782. The tailBeacon Wi-Fi connection is secure. The WPA2 passphrase is written on an inclusion in your package, and should be entered exactly as printed.

  • Page 32: Configuration

    10.2 Configuration 10.2.1 Configure The configure screen provides all configuration options. Anonymous Mode: When checked, this enables the tailBeacon to transmit a self-assigned (random) ICAO and non-identifying Call Sign when the squawk code matches the defined VFR squawk code (1200). When enabled, the operator will not be eligible to receive ATC services.
  • Page 33 Enter the position of tailBeacon relative to the nose of the aircraft in Meters. Transponder Monitor Threshold: Adjust this value only if experiencing difficulties with the transponder monitor (squawk and barometric altitude) function, and at the direction of uAvionix Support. Tap “Update” when complete. UAV-1002185-001 Rev D...

  • Page 34: Post Installation Checks

    10.3 Post Installation Checks Configure tailBeacon before performing system checkouts. Tab to the “Monitor” screen on the Installer App. Verify that Status is listed as “OK”. Information on status annunciations described in Section 0can be found here. Verify that the Call Sign matches your aircraft’s N-number (including the ‘N’).

  • Page 35: Post Installation Checks

    Monitor Threshold may need to be adjusted, or your transponder may need serviced. Annually, confirm the displayed “ADS-B Version” is current per Service Bulletins listed at: https://uavionix.com/support/tailbeacon/ If “ADS-B Version” is not current, apply Service Bulletins as appropriate to update ADS-B software. UAV-1002185-001...

  • Page 36: Normal Operation

    LED Indication Meaning On (Constant) Device Failure Internal self-test failure Invalid ICAO configured Blinking (On/off Function Failure every second) No GPS fix ADS-B broadcast failure No Failure 12 Support For additional questions or support please visit: https://uavionix.com/support/ UAV-1002185-001 Rev D...
