PUSH-SET Menu:
Push to cycle through options and rotate to change option
Close by cycling to end, pressing left button, or waiting 30
seconds
Options:
•
SET BARO
•
DG ADJ
•
HDG BUG Hold button down to align with current
heading
•
OBS (with AV-HSI only)
•
SRC SEL (with AV-HSI only)
•
SET ALT (with Autopilot or SALT overlay only)
•
SET VS (with Autopilot only)
•
AUTOPILOT (with Autopilot only)
•
SQUAWK (with tailBeaconX only)
Change Modes:
If Function unlocked, long hold button to change to DG
mode.

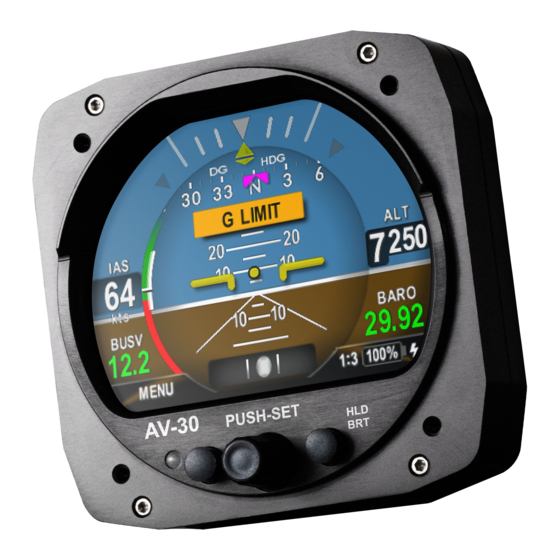

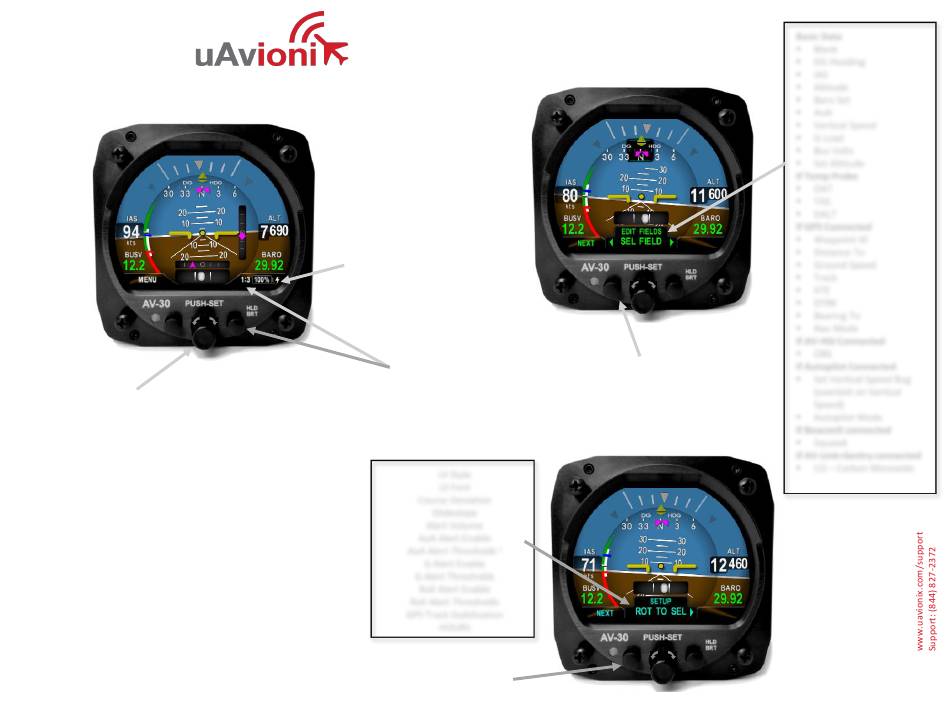

AV-30 Quick Reference Card
Attitude Indicator Mode
Battery
State
Select Current Page
Three Customizable Pages 1:3, 2:3, 3:3, AI
AI - Decluttered Attitude Indicator/Transponder Control
Push RIGHT button to change page
Hold RIGHT button for brightness setting
UI Style
UI Font
Course Deviation
Glideslope
Alert Volume
AoA Alert Enable
AoA Alert Thresholds
1
G Alert Enable
G Alert Thresholds
Roll Alert Enable
Roll Alert Thresholds
GPS Track Stabilization
HOURS
Push left button 2x
SETUP
ROT TO SEL
EDIT FIELDS MENU
Basic Data
▪
Highlighted In Black.
7 editable fields per page,
▪
26 possible values
2
▪
▪
▪
▪
▪
▪
▪
▪
If Temp Probe
▪
▪
▪
If GPS Connected
▪
▪
▪
▪
▪
▪
▪
▪
If AV-HSI Connected
▪
If Autopilot Connected
Push left button 1x
▪
EDIT FIELDS
SEL FIELD
▪
If BeaconX connected
▪
If AV-Link+Sentry connected
▪
1
AoA limits will be grayed out
unless rotary knob is pushed
while applying power.
2
Not all values can be placed in
every field (IAS, Altitude and Baro
Setting only allowed in certain
fields). Some values are
implemented with graphical
indicators, other with textual
Blank
DG Heading
IAS
Altitude
Baro Set
AoA
Vertical Speed
G Load
Bus Volts
Set Altitude
OAT
TAS
DALT
Waypoint ID
Distance To
Ground Speed
Track
XTE
DTRK
Bearing To
Nav Mode
OBS
Set Vertical Speed Bug
(overlaid on Vertical
Speed)
Autopilot Mode
Squawk
CO – Carbon Monoxide
fields.
UAV-1005760-001 Rev E
