EMERGENCY MANUAL OVERRIDE FACILITY:

The J4C has 2 operating modes, automatic and manual, the required mode is selected by using a
lever on the lower half of the actuator housing (Fig 7).
The 2 positions are marked:
AUTO = Automatic operation
MAN = Manual operation
Warning: Do not remove the selector lever securing screw, as this will allow its internal mechanism
to become loose and will cause irreparable damage to the actuator's gearbox.
Removing this screw will invalidate the warranty.
When "AUTO" position is selected:
The hand wheel, of models 20,35,55, and 85 rotates automatically, it is very important not to block
it, otherwise the actuator could suffer unrepairable damages.

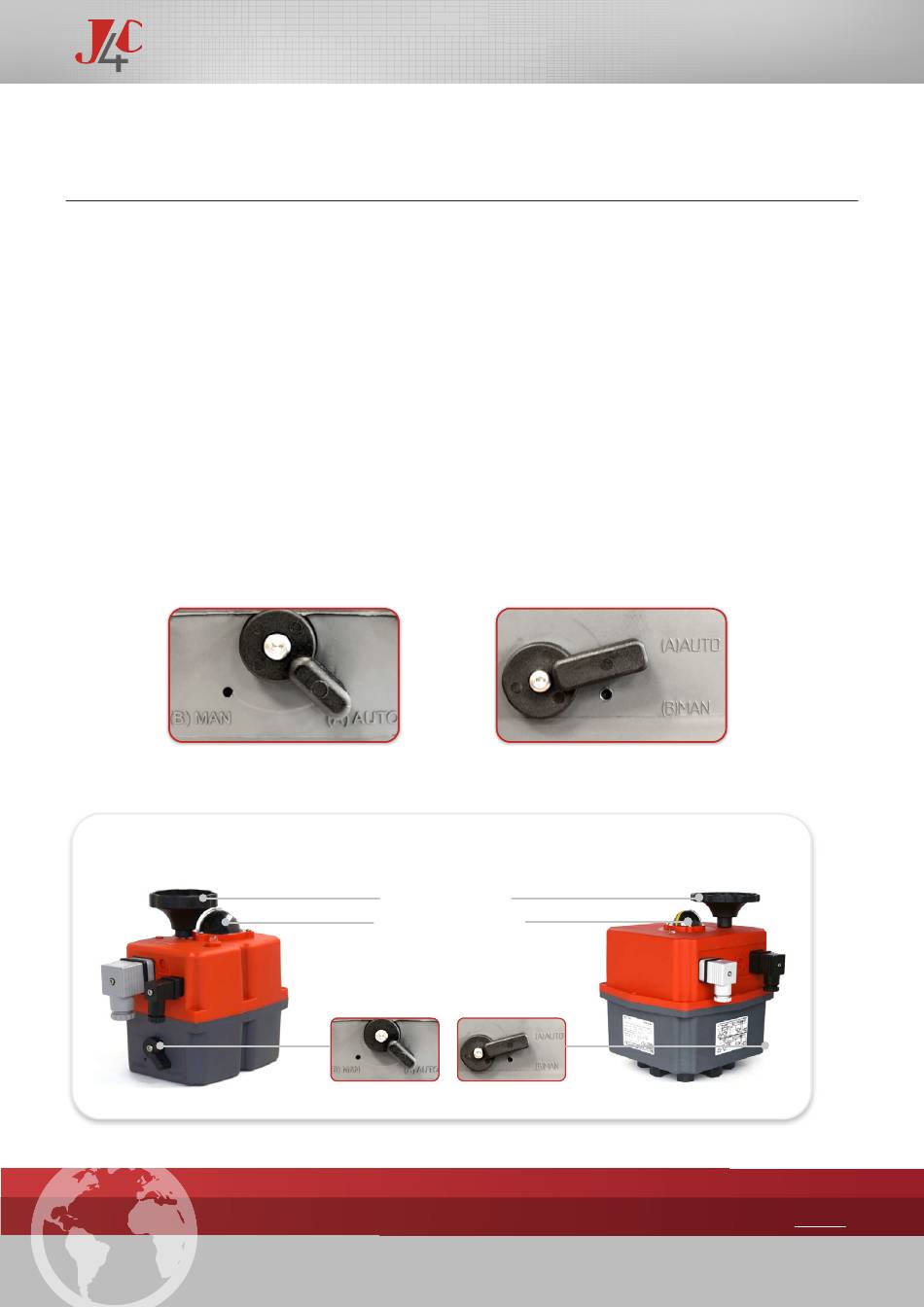

Fig. 7 J4C 20 TO 85
J4C 20 TO 85
Fig. 7
Hand Wheel
Position Indicator
Automatic - Manual
HANDBOOK_
J4C 140 TO 300
J4C 140 TO 300
