J+J J4C S20 Handbook page 48

HANDBOOK_ 48
Optios DPS_
DPS J4C 20/85

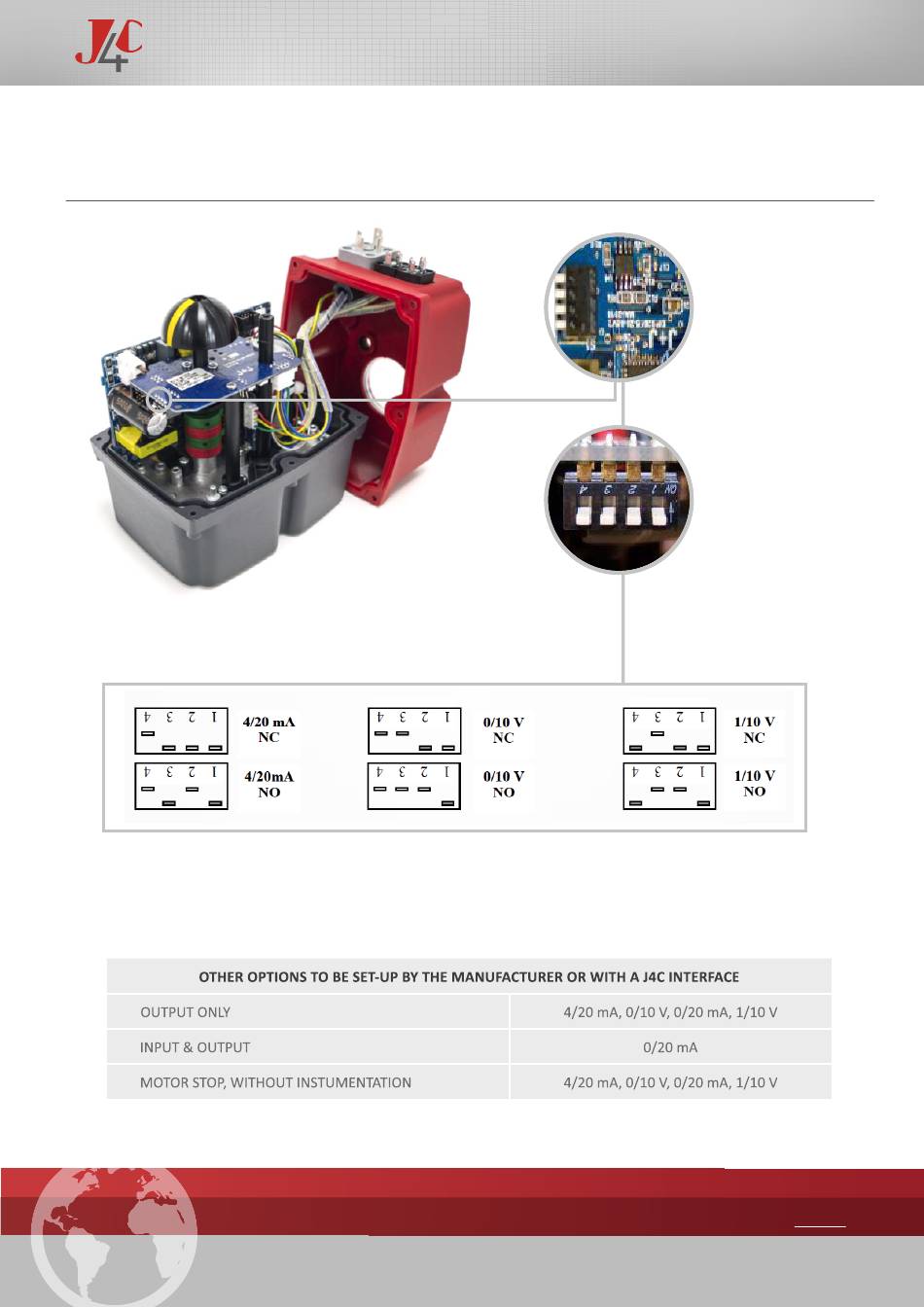

Use the configuration you need by moving the DIPs:
Different possibilities of configuration:
Configurations set up by using DIPs, should have the same Input and Output Signal.
I.e.: If Set up Input signal 4/20mA-Output signal 4/20 mA.
Other possibilities are available to work with, but they should be configurated from the manufacturer.
If need Output signal different from Input signal, please ask the manufacturer.
