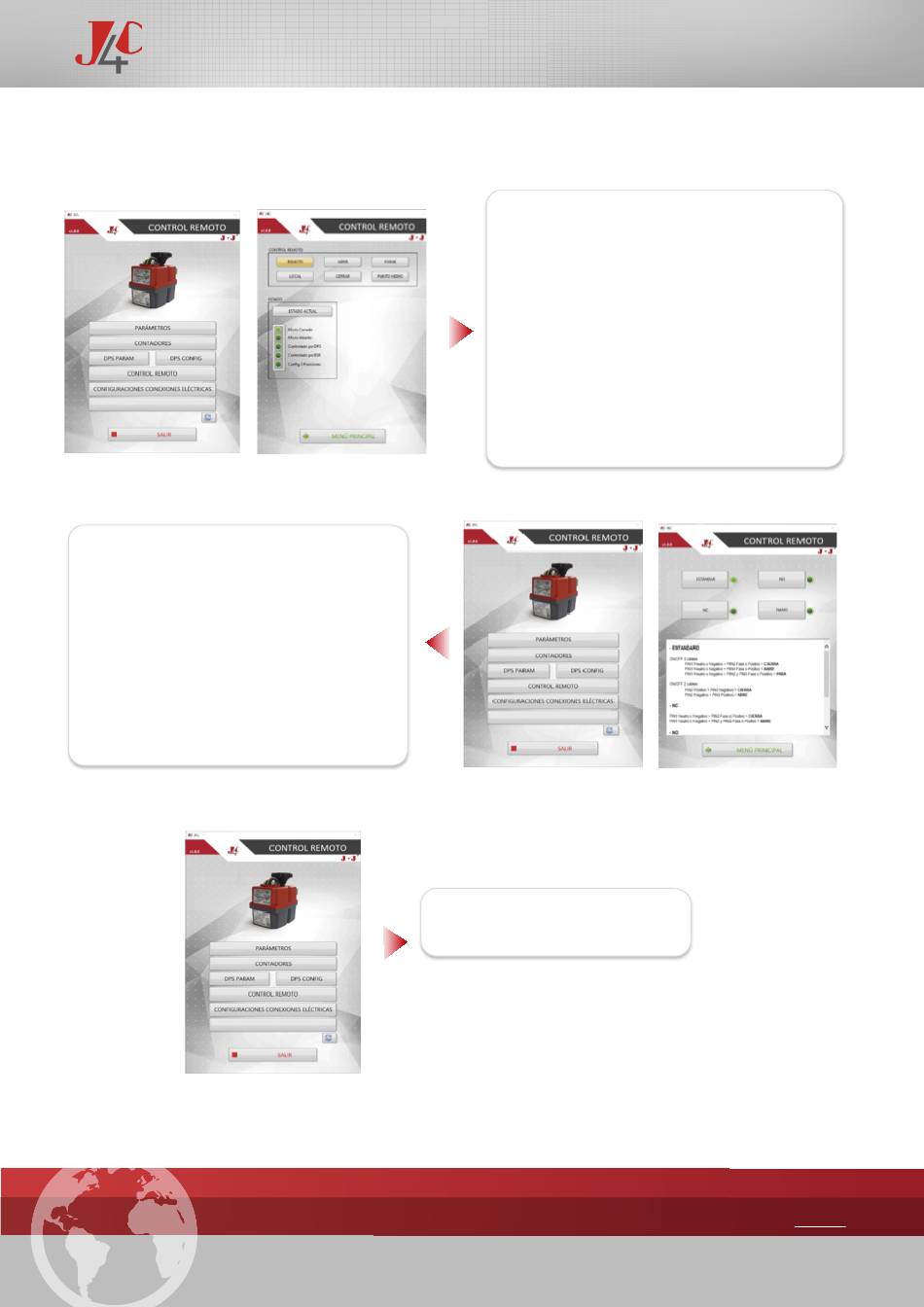

Click on POWER SUPPLY CONFIGURATIONS, the
screen will show electrical wiring/connection
options:
Select the wiring connection system you wish to
work with. Click on STANDARD, NO, NC or NANO.
See the detail of each connection system below.
To go back to the home menu, click on MAIN
MENÚ.
HANDBOOK_
REMOTE CONTROL options:
In case of an ON-OFF or a DPS Output only
actuator, Click on ABRIR, CERRAR and PARAR
options to activate it. Only in case of having a
3-position actuator, the screen will show an
additional option PUNTO MEDIO, which stops
the actuator at an intermediate position.
Click on ACTUAL STATUS, the screen will show
the actuator status (green light).
Click on MENÚ PRINCIPAL to go back to the
home menu.
To finish, click on EXIT.
