J+J J4C S20 Handbook page 76

Short explanation of the different configurations:
Version: Is the software version of the DPS PCB.
Select different options when in OPERATION MODE:
INPUT/OUTPUT: The actuator with DPS will be positioned by using an external mA or V signal. Automatically the DPS
will generate an output signal showing the actuator position.
ONLY OUTPUT: The actuator with DPS will work exactly the same as an ON-OFF one. The only difference is that the
DPS generates an output mA or V signal, showing the actuator position.
STOP WITHOUT INSTRUMENTATION: The actuator is working the same way as when using the INPUT/OUTPUT
option, but in case of a mA of V signal failure, the actuator would stop, remaining in the same position as it was, prior
to the signal failure. This configuration is only available when the actuator works with a 4/20m, 1/10V, 4/12mA and
12/20mA signal.
Select configurations when in IN SELECTION:
Input Signal: Chose the type of requested signal. Both output and input signal will be the same. If you want to work
with different signals, please ask the manufacturer.
NO / NC: In case of an input signal failure, the actuator will go to the preferential position: NO = Normally Open,
NC = Normally Close.
We recommend that both the input signal and NO/NC set up, is made by placing the DIPs as follows:
RESET: Click on RESET to fix the prior changes, after select any of the INPUT SELECT configurations.
SELFT ADJUST: If click on SELF ADJUST the actuator will make a complete movement, and register Open and Close positions.
Click on READ to know the DPS configuration (a table will show the DPS parameters).
To go back to the home menu, click on MAIN MENU.
HANDBOOK_
This configuration is possible only if our Positioner
(DPS) has already been installed in the actuator.

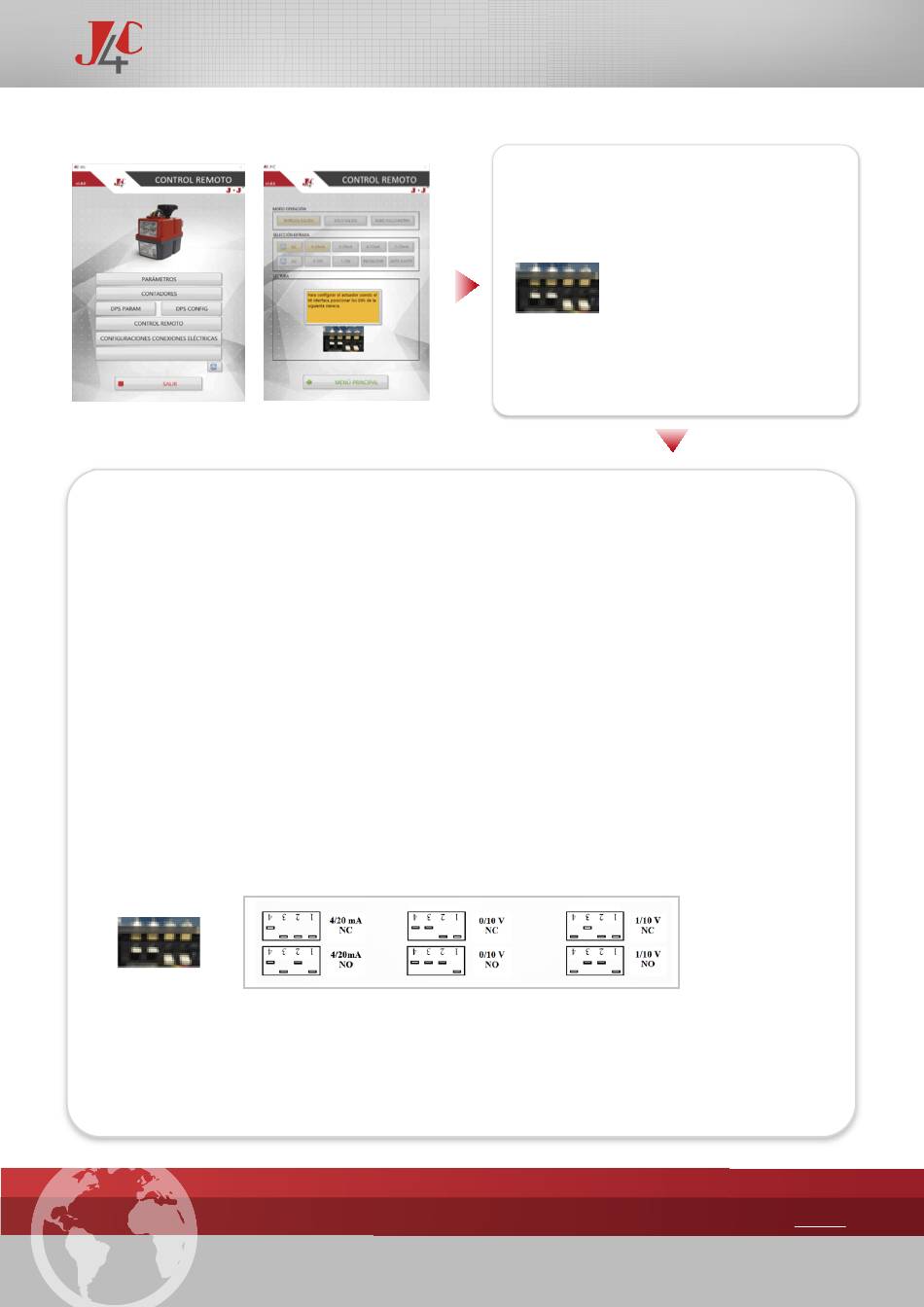

Click on DPS, if the following screen appears, please
place the DIPs on the DPS PCB, following the screen
instructions.
Click on MAIN MENU.
If we click on DPS, all the Positioner (DPS) possible
configuration options will be shown on the following
screen:
76
