J+J J4C S20 Handbook page 11

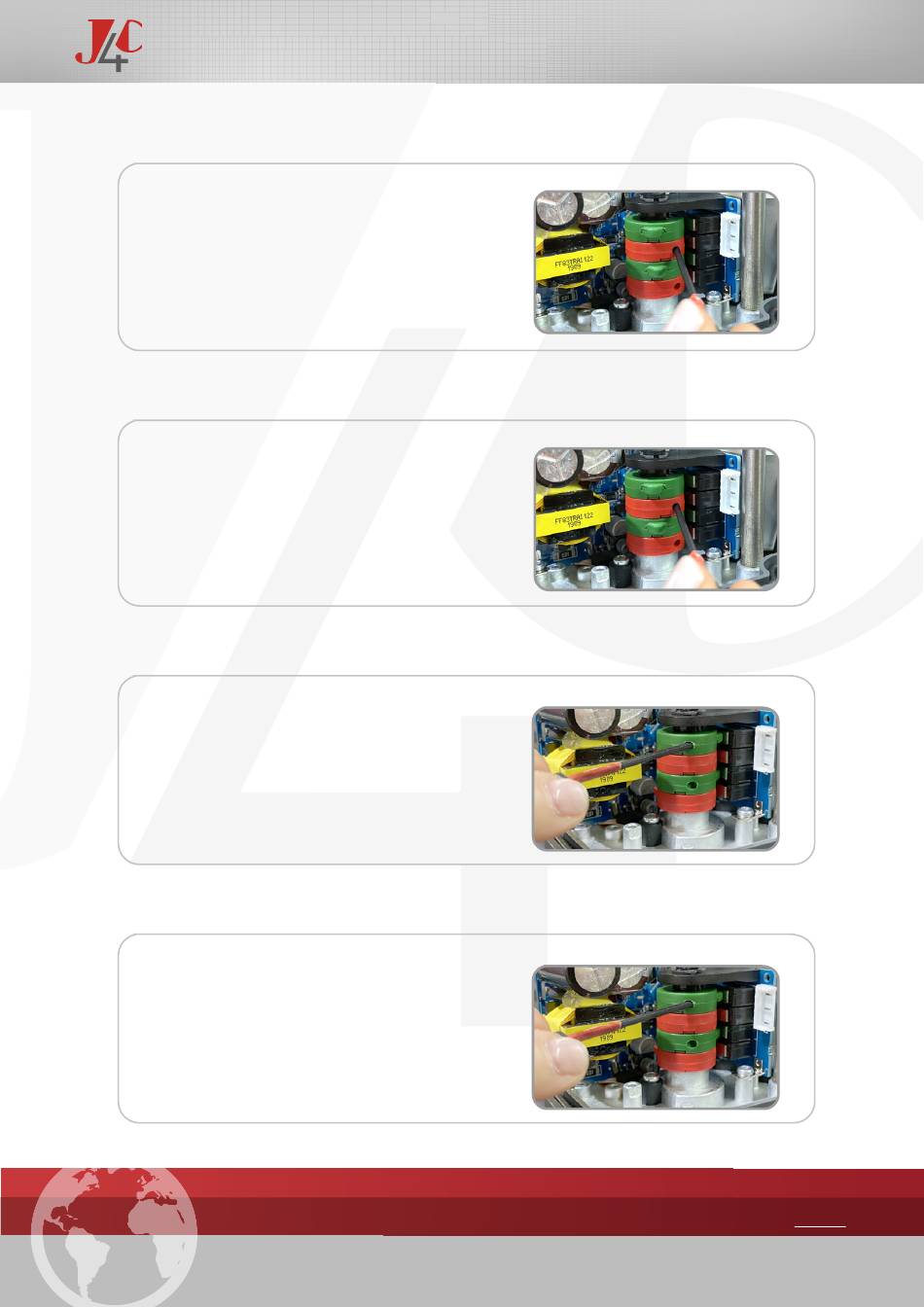

1) To adjust the close position at less than 0
Turn the wrench to clockwise direction -
cams 1 and 3.
The cam 3 (confirmation) should press
the lever of the micro switch a bit earlier
than the cam 1.
2) To adjust the close position at more than 0
Turn the wrench to anti-clockwise direction
- cams 1 and 3.
The cam 3 (confirmation) should press the
lever of the micro switch a bit earlier than
the cam 1.
3) To adjust the open position to more than 90
Turn the wrench to anti-clockwise direction
- cams 2 and 4.
The cam 4 (confirmation) should press the
lever of the micro switch a bit earlier than
the cam 2.
4) To adjust the open position to less than 90
Turn the wrench to clockwise direction -
cams 2 and 4.
The cam 4 (confirmation) must press the
lever of the micro switch a bit earlier than
the cam 2.
HANDBOOK_
.
0
cams 1 / 3
3
1
.
0
cams 1 / 3
3
1
.
0
cams 2 / 4
4
2
.
0
cams 2 / 4
4
2
11
