J+J J4C S20 Handbook page 75

Time Error: Number of times the motor has been stopped, as the TIEMPO DE MANIOBRA parameter value has been
overpassed, but the actuator has not reached either the OPEN or CLOSE position yet. It usually happens when the
declutching lever is in MAN position. (The user wants to move the actuator manually)
Power On: Number of times the actuator remains without Power Supply.
BSR: Number of times the actuator has been activated by using the BSR system, due to a Power Supply failure. This
counter won't work if the BSR system has not been installed on the actuator before.
To go back to the MENU, click on MAIN MENU.
HANDBOOK_

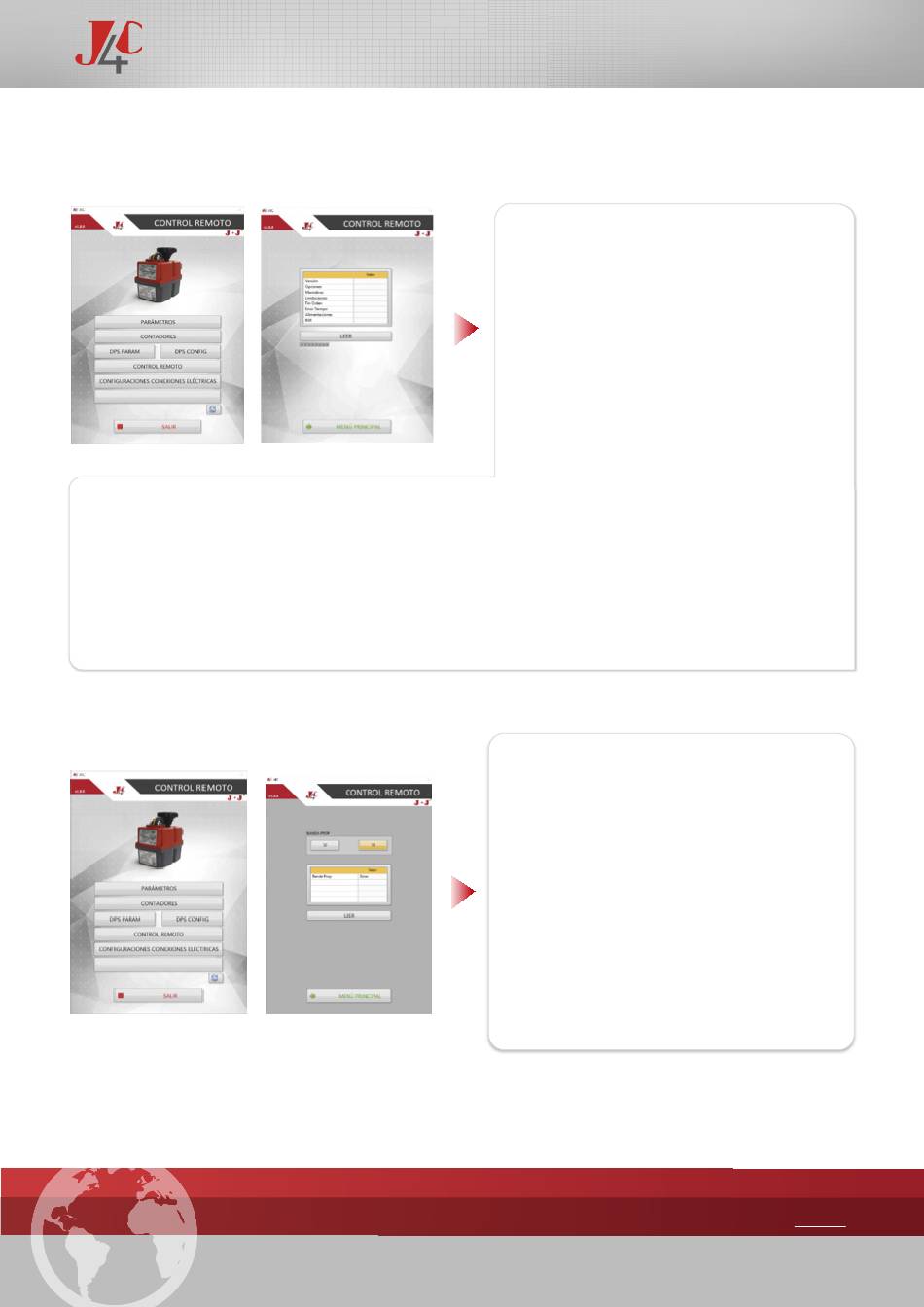

If we click on COUNTERS, the following screen will
open, showing all counters. To see values, click on
READ.
Short explanation of each COUNTER:
Version: Software version of the PCB CONTROL part.
Options: Parameter for internal use only.
Operations: Number of times the cam steps on
the OPEN or CLOSE micro switch.
Limitations: Number of times the limiter function
has been activated, due to a higher torque than
the allowed.
End Order: Parameter for internal use only.
This configuration is possible only if our Positioner
(DPS) has already been installed in the actuator.
Click on DPS PARAM, the following screen will open
and allow you to set up the Banda Prop parameter.
The Banda Prop parameter should be 32 in all our
standard models.
Only in case of a S20 or B20 model with a 5 Sec./90º
working time, the Banda Prop value should change
into 55. Otherwise, the positioner (DPS) could not
work in a proper way.
Click on READ, to see the recorded value.
Select 32 or 55 and record the selected value.
To go back to the HOME MENU, click on MAIN MENU.
