KIT DPS J4C 140/300

The DPS is a device for the J4C electric actuator
that turns the actuator into a servo controlled
valve positioner.
The DPS is a modulus with a microprocessor (CPU)
which digitally manages the analogical input and
output and compare them with the position of the
actuator to establish a uniform relation.
The analogical inputs are sent to the CPU where
they are processed for his continuous comparison
with the position of the actuator, this allows to
obtain a very high sensitivity next to a very high
repetitivity of the position (see characteristics).
The DPS in communication with the electronic
OUTSIDE BOX INSIDE BOX
system of the actuator provides an integral mana-
gement of the motion of the actuator.

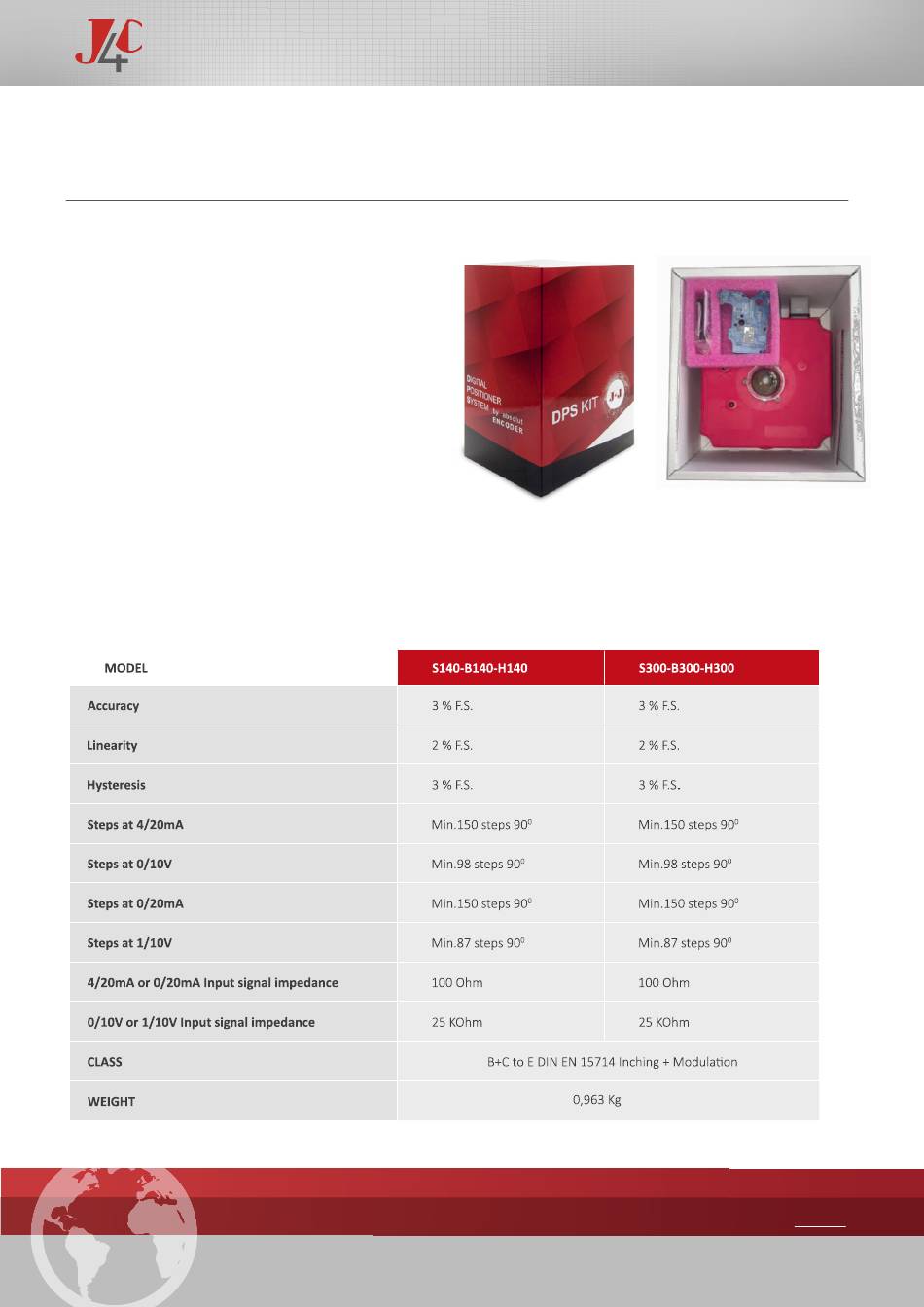

SPECIFICATIONS
F.S. Full scale
INDEX
