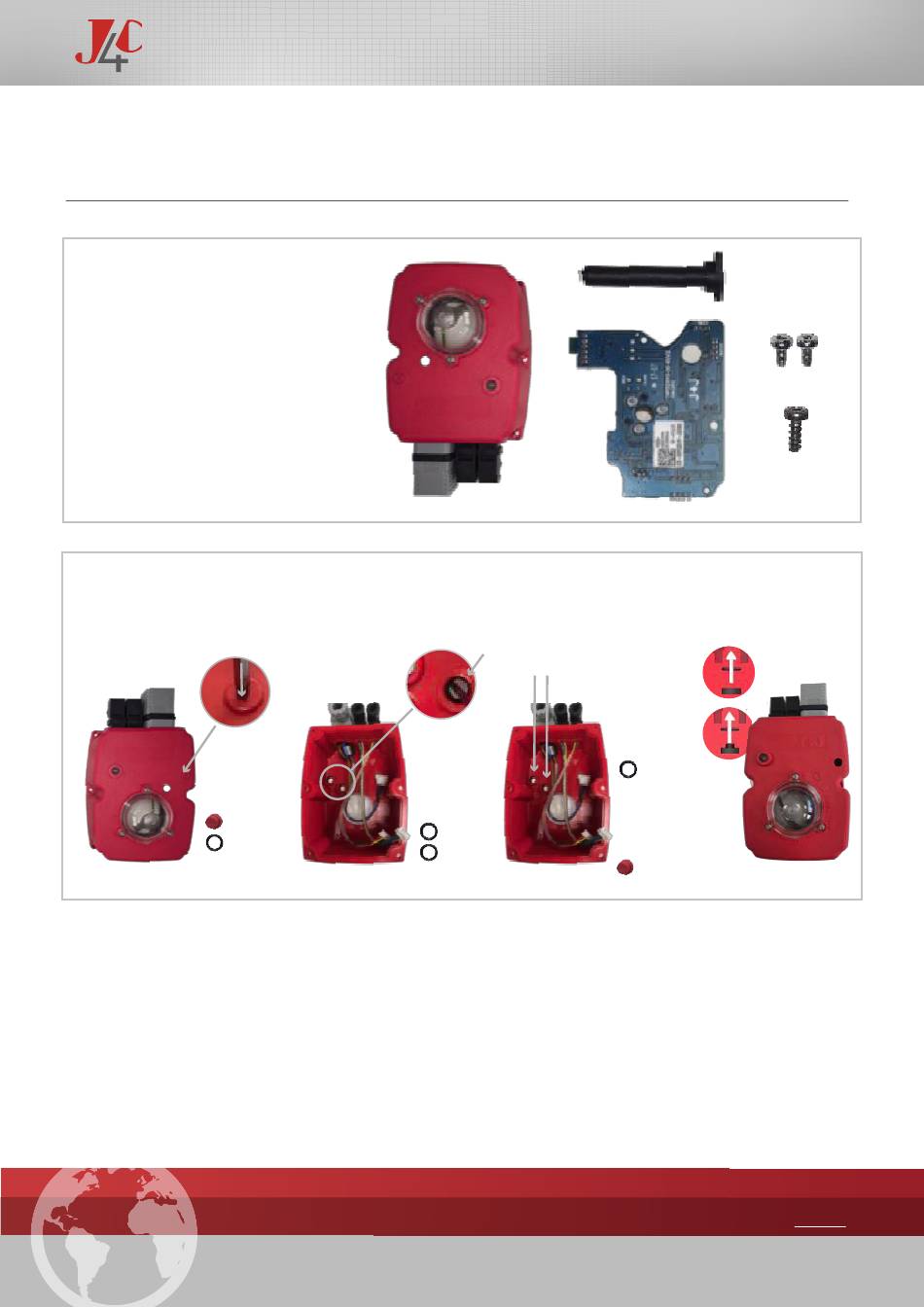

ASSEMBLY INSTRUCTIONS

PIECES

A - 1 Cover
B - 1 Plastic column
C
- 1 DPS positioner PCB
D - 2 Sheet metal Fixing screws
E - 1 Plastic Fixing screws

PREPARING THE COVER:

The cover of the kit is for a J4C-20, 35 and 55 models. In case you want to mount a kit on a J4C85,
follow the instructions:
Remove the
cap and leave
the o-ring
inside the hole
cap
O-ring
PLEASE READ CAREFULLY BEFORE MOUNTING.
VERY IMPORTANT!!!! PLEASE FOLLOW THE INSTRUCTIONS STEP BY STEP. BEFORE CON-
NECTING "A" PLUG TO THE ACTUATOR,
CHECK THAT THE VOLTAGE IS THE SAME AS THE ONE SPECIFIED ON THE LABEL (CARTER).
TO CONVERT A STANDARD (ON-OFF) J4C ELECTRIC ACTUATOR INTO A MODULATING
FUNCTION WITH POSITIONER, PROCEED AS FOLLOWS:
A
1
A B
Remove the
sleeve 1 and
leave the
Oring inside.
sleeve
O-ring
HANDBOOK_
B
C
Introduce the
sleeve in hole
A and press it
until is fully
inside (Fig.A)
sleeve
introduce the
cap in hole B
and press it
until it is fully
inside (Fig.B)
cap
58
KIT DPS_
D
E
