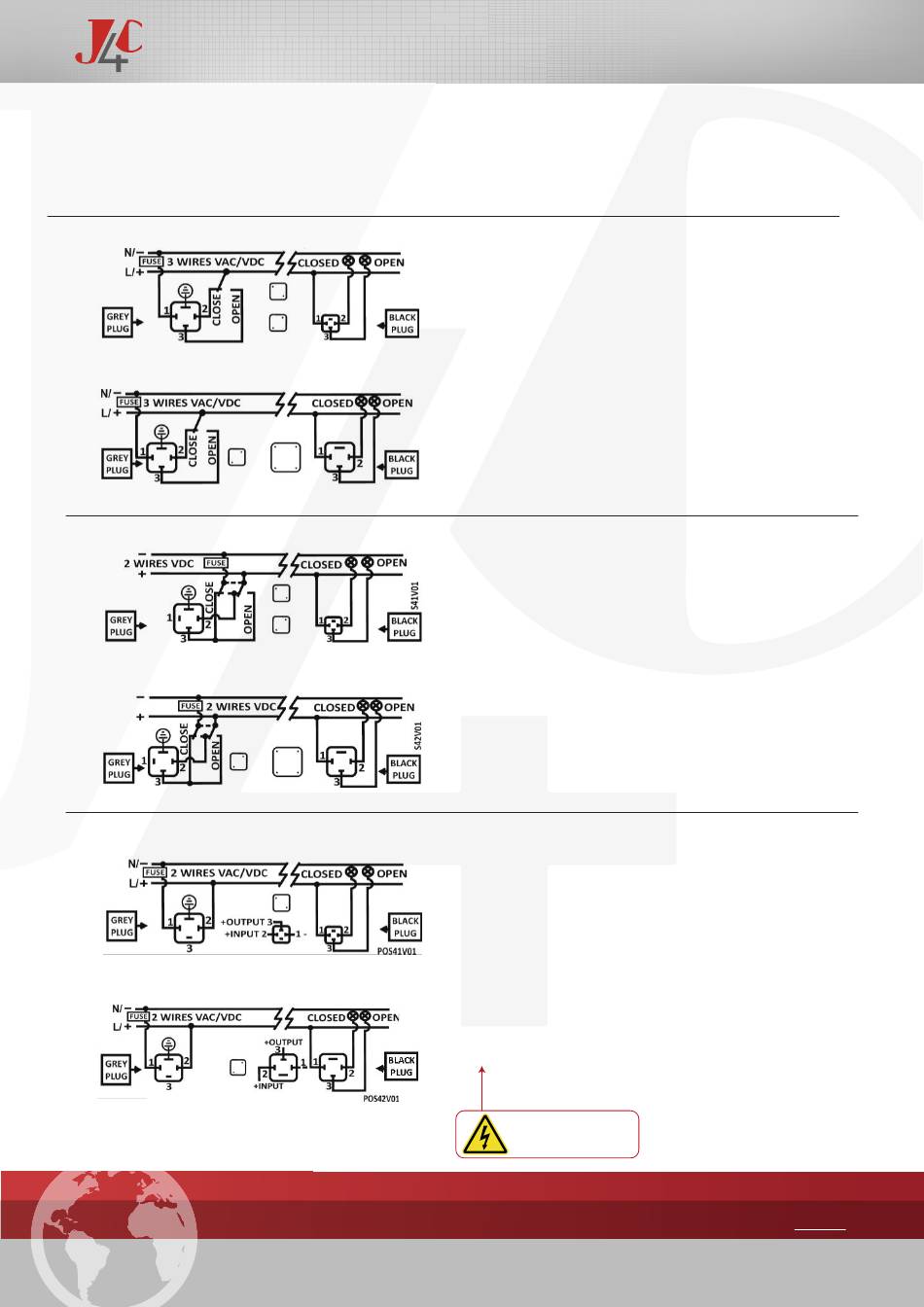

EXTERNAL CONNECTING DIAGRAM

J4C 20/85
A
J4C 140/300
A
J4C 20/85
A
J4C 140/300
A
J4C 20/85
A
J4C 140/300
A
B
B
B
B
B
C
C B
HANDBOOK_

3 WIRES ON - OFF

A = Power supply plug
A: VAC 3 WIRES (Grey plug)
PIN 1 = Neutral + PIN 2 = Phase = Close
PIN 1 = Neutral + PIN 3 = Phase = Open
A: VDC 3 WIRES (Grey plug)
PIN 1 = (-) Negative + PIN 2 = (+) Positive = Close
PIN 1 = (-) Negative + PIN 3 = (+) Positive = Open
B = Volt free contact, plug
PIN 1 / PIN 2 = Close
PIN 1 / PIN 3 = Open

2 WIRES ON - OFF

A = Power supply plug
A: VDC 2 WIRES (Grey plug)
PIN 2 = (+) Positive + PIN 3 = (-) Negative = Close
PIN 2 = (-) Negative + PIN 3 = (+) Positive = Open
B = Volt free contact plug
PIN 1 / PIN 2 = Close
PIN 1 / PIN 3 = Open

POSITIONER

A = Power supply plug
A: VAC 2 WIRES (Grey plug)
PIN 1 = Neutral + PIN 2 = Phase = Power supply plug
A: VDC 2 WIRES (Grey plug)
PIN1=(-) Negative + PIN 2=(+) Positive = Power supply plug
B = Volt free contact plug
PIN 1 / PIN 2 = Closed
PIN 1 / PIN 3 = Open
C = Instrumentation Signal
C: Input signal : 4/20mA or 0/10V
PIN 1 = (-) Negative + PIN 2 = (+) Positive = Input signal
PIN 1 = (-) Negative + PIN 3 = (+) Positive = Output signal
