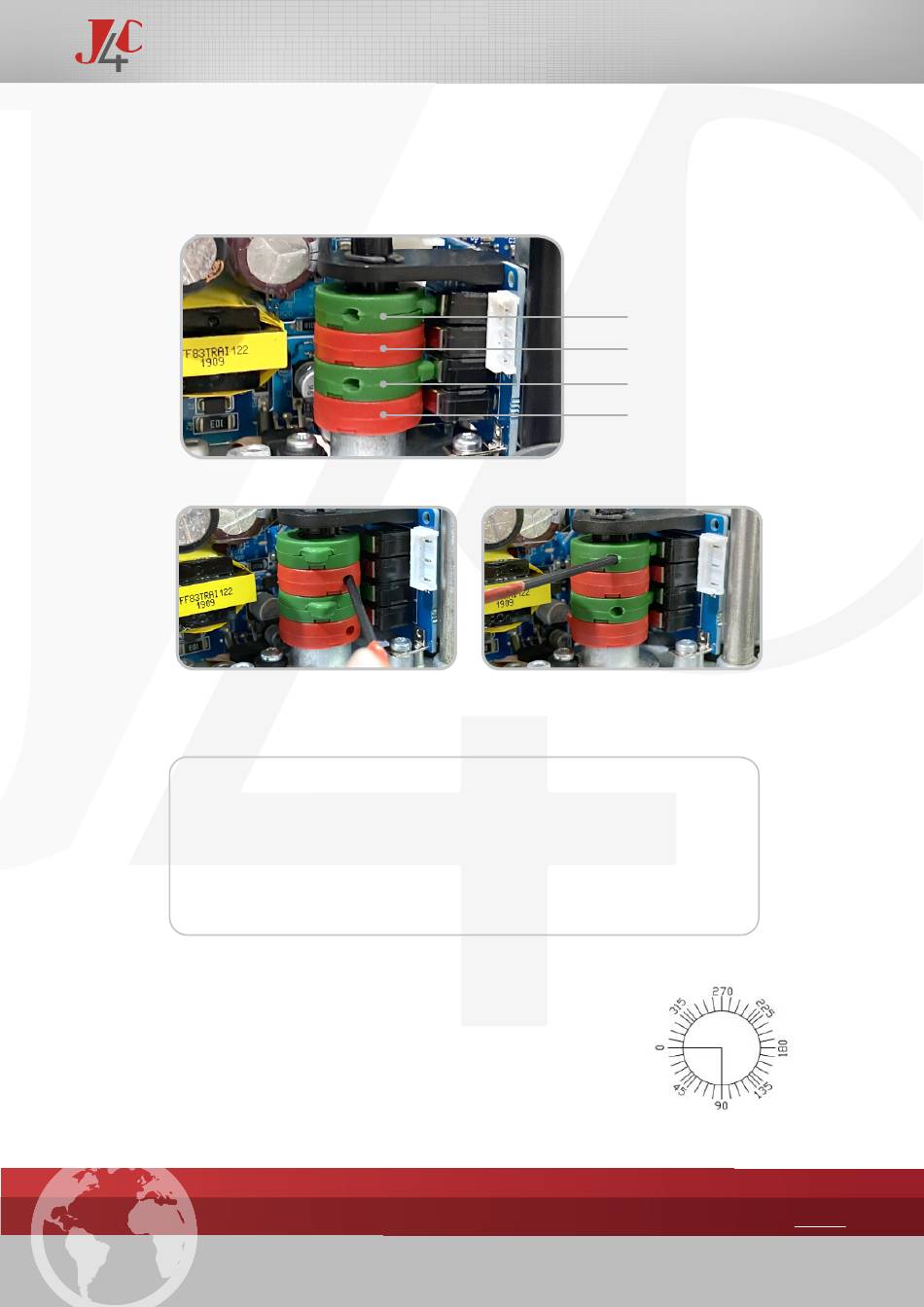

POSITION OF THE CAMS

Cams 1 and 3
1) Cam 1 is to adjust the close position.
2) Cam 2 is to adjust the open position.
3) Cam 3 is to adjust the close position confirmation.
4) Cam 4 is to adjust the open position confirmation.
To ensure that the position confirmation works, adjust the
confirmation cams (3 & 4) 3° (+/-1º) before the motor stop.
The standard actuators are always adjusted at 0º (close)
and 90º (open).
3
1
HANDBOOK_
CAM
4
3
2
1
4
2
Cams 2 and 4
