J2
J2

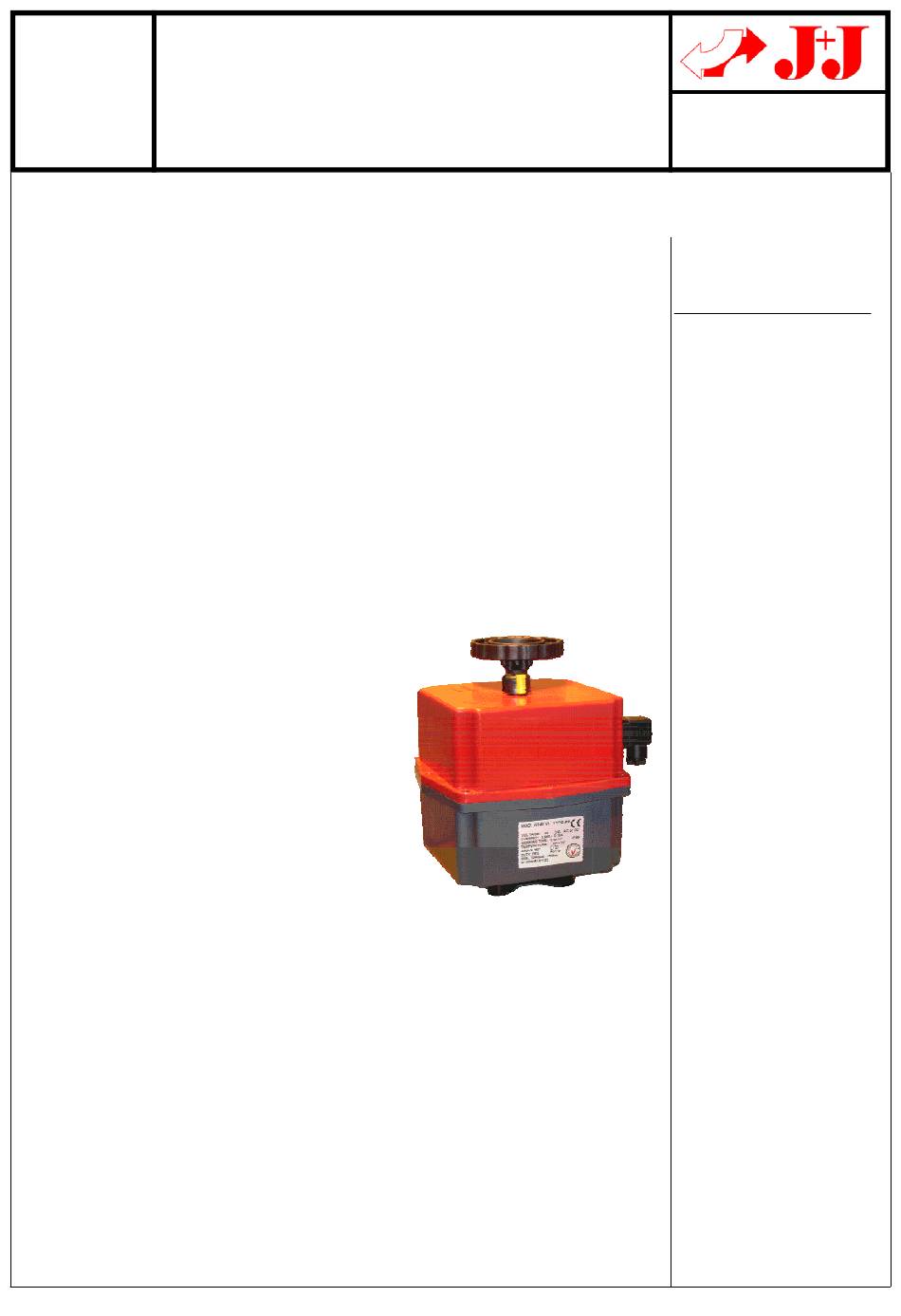

– 140 IP65 Electric Actuator
J2
The maintenance free
electric actuator is very user friendly. It offers more standard features than any
rivals in its class, and was first to the market with both multi-voltage capability with automatic voltage sens-
ing, and an electronic torque limiter with auto-gearbox relaxing which frees the manual override when a
valve is jammed. The manual override facility, with a safety power cut-out switch when operated, allows
safe hand operation .
Time saving external DIN plugs allow installations to be pre-wired and eliminates the need to remove the
cover to connect the actuator, which helps to reduce installation costs.
With a soft start system eliminating high motor start loads and a thermostatic anti-condensation heater
that does not require a separate connection, the
The IP65 weatherproof plastic housing with stainless steel cover screws offers excellent corrosion resis-
tance.
Local visual position indication and remote volt free end of
travel confirmation are provided as standard.
J2
The
is quick and easy to install:
a) ISO:5211 multi-flange F07 or F10 mounting with a
22mm female double square (star) drive.
b) Factory set open and closed positions at 0 and 90° (or
as specified on your order).
c) External electrical connections and external wiring
diagram- no need to remove the cover to connect.
Always read the supplied installation & operating instructions before use.
J2
- Model 140 Options
Battery 'Spring Return' (BSR)
Power open, power to close,
fails safe on power failure. Uses
an industrial rechargeable bat-
tery-back up system. Can be
used as energize open, fail
close, subject to minimum
energize open time.
See individual datasheet for
more information.
Model 140
J2
offers low power consumption.
Digital Positioning System (DPS)
Internally factory fitted Digital
Positioning System (DPS) pro-
vides accurate modulating func-
tion with either 0-10VDC or
4-20mA control signal. Output
signal provided.
See individual datasheet for more
information.
Mounting Kit Options
ISO:5211 multi-flange mounting
offers F07 & F10 fixings with a
22mm double square female
(star) drive.
A full range of stainless steel
mounting kits are available,
typically for non-direct mount
valves and for elevated tem-
perature applications.
Doc: J2-140/01
Nov 2006
Main Features:
Multi-voltage capable with
auto-voltage sensing:
J2-L140
12-48V AC/DC
J2-H140 80-240V AC/DC
Torque output::
170Nm Break
140Nm Reseat
Electronic torque limiter ~
protects against valve jams
Anti-condensation heater
Manual override
All connections via external
DIN plugs ~ no need to re-
move the cover to connect
Volt free end of travel
confirmation switches
IP65 weatherproof housing
CE marked
Traceable sequential
serial numbering system
Optional failsafe with Battery
Back-up - actuator fails to
safe position on mains power
failure
Optional modulating with
digital positioning system,
either 0-10V or 4-20mA
control with output signal

Advertisement

loading
Need help?

Need help?

Do you have a question about the J2-LI40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for J+J J2-LI40

  • Page 1 Model 140 Doc: J2-140/01 Nov 2006 Main Features: – 140 IP65 Electric Actuator Multi-voltage capable with The maintenance free electric actuator is very user friendly. It offers more standard features than any rivals in its class, and was first to the market with both multi-voltage capability with automatic voltage sens- auto-voltage sensing: ing, and an electronic torque limiter with auto-gearbox relaxing which frees the manual override when a valve is jammed.
  • Page 2: Specifications

    Model 140 Electric Actuator – 140 Electric actuator (on/off ) Specifications: Models J2-H140 80-240V AC (1ph) or DC J2-L140 12-48V AC (1ph) or DC Housing IP65 Anti-corrosive Polyamide Duty Rating Mounting IS05211 & DIN3337 Electrical Connection External via DIN plugs Torque Output 170Nm Break, 140Nm Run &...
  • Page 3: Maintenance

    Installation, Operation & Maintenance Instructions Model On/ Off Doc: J2.STD.IOM/01 Aug 2006 INSTALLATION INSTRUCTIONS J2 actuators operate using live electricity and we strongly recommend that only qualified electricians/ electrical engineers be employed to make electrical connections. They are quick and easy to connect without removing the cover, do not remove the cover without our authorisation or the warranty may be invalidated: Check that the voltage being applied matches the voltage shown on the actuator’s identification label and connect the power supply cables to the DIN plug(s) as per the wiring diagram affixed to the side of the actuator.
  • Page 4 Wiring diagram - on/off & failsafe Doc: J2WD.STD&BSR/01 Nov 2006...
  • Page 5 Wiring diagram - 2 wire DC for on/off & failsafe versions Doc: J2WD.STD&BSR.2W/01 Nov 2006...
