2 Functional Description

A high-level block diagram of the Zynq 7Z045 Mini-Module Plus development board is shown below
followed by a brief description of each sub-section.

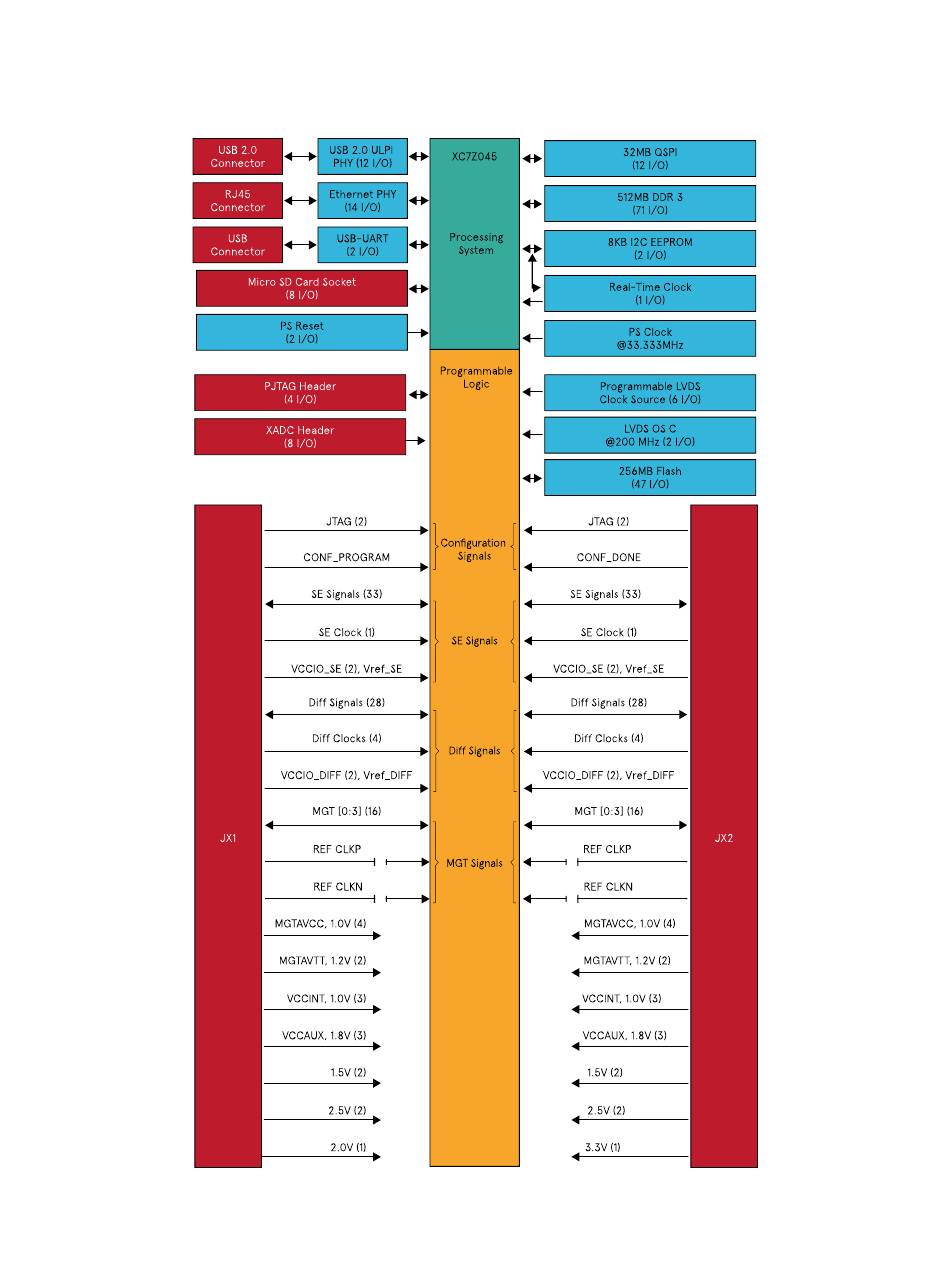

Figure 2 – Zynq 7Z045 Mini-Module Plus Development Board Block Diagram
Page 10
