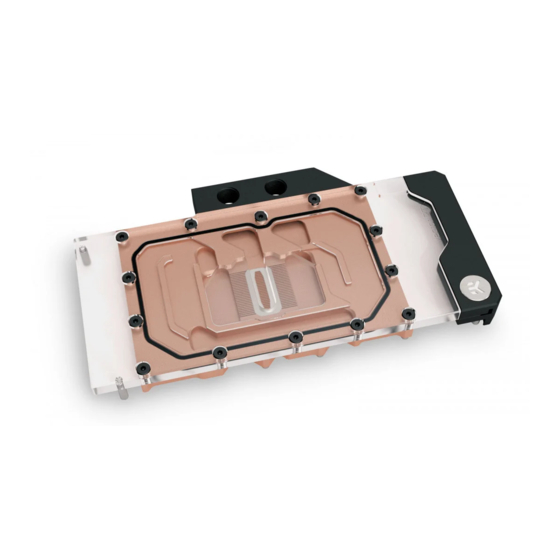

EK-Quantum Vector XC3 RTX 3080/3090 Active Backplate User Manual
Hide thumbs
Also See for Vector XC3 RTX 3080/3090 Active Backplate:
- Manual (10 pages) ,
- User manual (16 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EK-Quantum Vector XC3 RTX 3080/3090 Active Backplate
Summary of Contents for EK-Quantum Vector XC3 RTX 3080/3090 Active Backplate
- Page 1 EK-Quantum Vector XC3 RTX 3080/3090 Active Backplate USER GUIDE...
- Page 2 This product is intended for installation by expert users only. Please consult with a qualified technician. Improper installation may result in damage to your equipment. EK assumes no liability whatsoever, expressed or implied, for the use of this product or its installation. The following instructions are subject to change without notice.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS ACTIVE BACKPLATE DIMENSIONS REQUIRED TOOLS ACTIVE BACKPLATE SPECIFICATIONS AND MAIN PARTS INSTALLING THE ACTIVE BACKPLATE PREPARING THE GRAPHICS CARD CUTTING AND PLACING THERMAL PADS REMOVING THE TERMINAL METAL PLATE ATTACHING THE ACTIVE BACKPLATE INSTALLING FITTINGS AND TUBING CONNECTING THE D-RGB LED STRIP TESTING THE LOOP SUPPORT AND SERVICE... -
Page 4: Box Contents
M2.5x8 AX1 Screw (8 pcs) Thermal Pad G 1.0 mm (3 pcs) EK-Quantum Vector XC3 RTX 3080/3090 Active Backplate Thermal Pad G 1.5 mm (1 pc) Thermal Pad G 2.0 mm (3 pcs) Allen Key 2.5 mm (1 pc) -
Page 5: Active Backplate Dimensions
ACTIVE BACKPLATE DIMENSIONS 150 mm 179 mm 273.6 mm REQUIRED TOOLS Phillips Head Screwdriver Scissors - 5 -... -
Page 6: Active Backplate Specifications And Main Parts
ACTIVE BACKPLATE SPECIFICATIONS AND MAIN PARTS Technical Specifications: Dimensions (L x H x W): 273.5 x 113 x 31.5 mm D-RGB (Addressable RGB) Cable Length: 500 mm D-RGB LED Count: 9 M4 x 27 DIN7984 SCREW D-RGB Connector: Standard 3-Pin (+5V, Data, Blocked, Ground) EK-PLUG G1/4 TERMINAL O-RING 15 x 1 mm TERMINAL METAL PLATE... -
Page 7: Installing The Active Backplate
EK-Quantum Vector XC3 RTX 3080/3090 Active Backplate comes with its own terminal, meaning the original terminal, along with two M4 x 27 DIN7984 (2) 15 x 1 O-rings, on the EK-Quantum Vector XC3 RTX 3080/3090 SCREW water block has to be removed. -
Page 8: Cutting And Placing Thermal Pads
STEP 2 Thermal PAD G 1.0 mm (120 x 24 mm) CUTTING AND PLACING THERMAL PADS Your backplate comes with thermal pads that have to be cut into smaller pieces to cover all the VRM components. EK made sure to 1 mm provide you with more than an adequate quantity of thermal pads to 120 mm... -
Page 9: Removing The Terminal Metal Plate
3090 Version Thermal Pad G 1.0 mm Thermal Pad G 1.5 mm Thermal Pad G 2.0 mm STEP 3 STEP 4 REMOVING THE TERMINAL METAL PLATE The Metal plate attached on the Terminal is meant as a precaution, TERMINAL METAL PLATE to secure the two O-rings to prevent them from falling out of their sockets during transport and handling. -
Page 10: Attaching The Active Backplate
STEP 5 ATTACHING THE ACTIVE BACKPLATE First, make sure the two (2) 15 x 1 O-rings are IN terminal slots, as shown in the image. Place the active backplate on the PCB and make sure all holes are M2.5 x 8 AX1 SCREW aligned. -
Page 11: Installing Fittings And Tubing
EK-Quantum Vector XC3 RTX 3080/3090 water block and in the EK-Quantum Vector XC3 RTX 3080/3090 Active Backplate. The terminal can be shifted for 180 degrees but by using it so, the inlet and outlet ports EK- PLUG are changed. -
Page 12: Connecting The D-Rgb Led Strip
CONNECTING THE D-RGB LED STRIP STEP 1 Plug the 4-pin D-RGB connector from the GPU water block to the D-RGB Header on your motherboard or controller. The LED strip will work only if the pin layout on the header is as follows: +5V, Data, Empty, Ground. -
Page 13: Support And Service
SUPPORT AND SERVICE In case you need assistance, please contact: https://www.ekwb.com/customer-support/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
